Rated Power:
5kw
Diameter Of Wind Rotor:
6meters
Wind Rotor Height:
3.9meters
Material Of Blade:
FRP Complex Resin
Blade Number:
3PCS
Generator Type:
Three Phase Permanent Magnet Generator
Start (out-in) Wind Speed:
1.8m/S
Max Output Power:
5.5kw
Rated Wind Speed:
45m/S
Stop Method:
Mechanism or Electron for Selection
Number Of Blade:
Multiple-Blade
Rotating Shaft:
Vertical
Stress Way Of Blade:
Lift Force
Phase:
3 Phase
Product Description

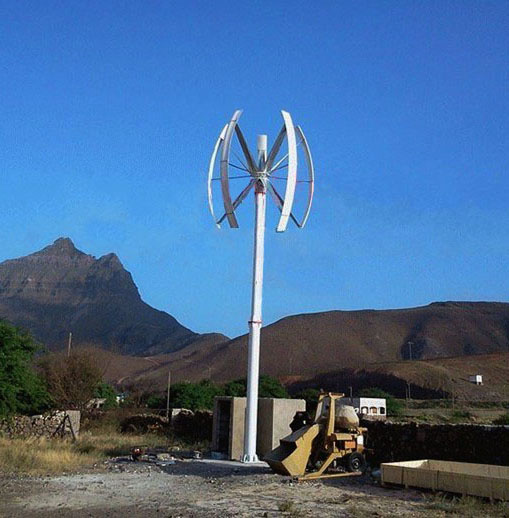

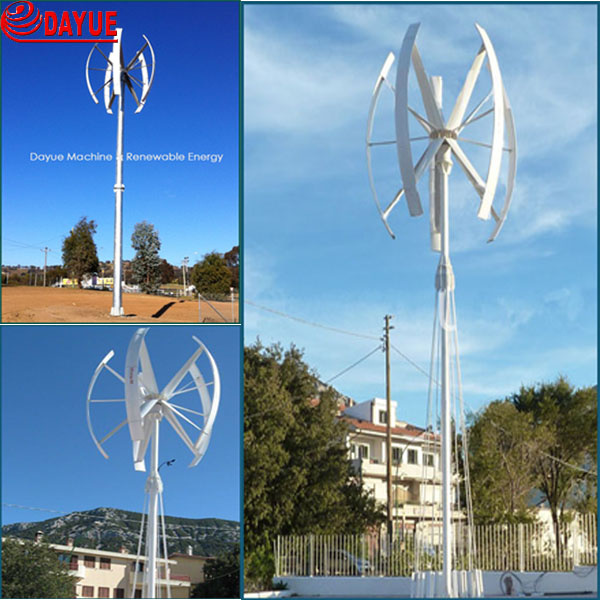

5kw Vertical Axis Wind Turbine (FDV-5KW)
This vertical turbine is adopted maglev axis and can be used for on-grid and off-grid, we also supply complete system including the grid tie controller, grid tie inverter ,free standing tower or hydraulic tower optional .
Features:
1).The Meglev device reduce enormously the bearing abrasion ,Improved Service Life. 2).Adopted the meglev axis technology for reducing friction between rotor and shaft , so the noise is really lower and can be installed at rooftop. 3).Doesn't need to be repositioned to capture wind energy. 4).Easy to maintain and repair as the mechanical components are mounted on or close to ground level. 5). There're also few kinds of tower for selection,Tapered tower, Lattice Tower, hydraulic tower , you can choose the best one against the purchasing cost budget and the installation site condition 6). All towers will be with a working station fence , the technicians can stand at the working station for making installation and commissioning for this turbine.
7). On-grid and off-grid system application for different countries demanding If you choose the off-grid system , we can equipment with a dual powers inverter with this turbine, so that it can use the utility grid power and wind power to together supply your home , the wind power as main power and utility grid power as standby power ,its voltage output can be designed against users requirements.
8)The on-grid system is equipped with Sungrow controller and inverter, which are obtained the CE , TUV ,G83 certificate to ensure you can easily get the installation permission from your government ,The on-grid voltage can be single phase 240Vac or three phase 380-415Vac.
9) Low noise (Under 40DB), never effect people working and rest.
-FDV-1KW-5KW VAWT (Vertical axis) which is running from 2m/s- 25m/s wind speed ,it is adopted the meglev axis technology for reducing friction between rotor and shaft , so the noise is really lower and can be installed at rooftop
PS:if you want to know clearly the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the FDV-5KW wind turbine complete installing steps and working conditions.

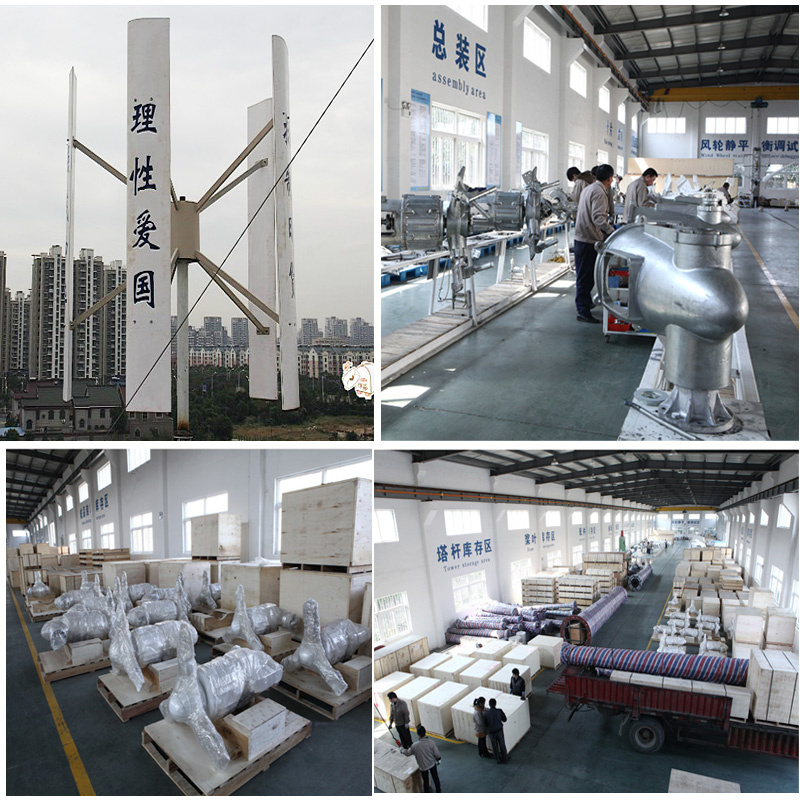

Factory View:
Numbers of Blade
5 pcs
Material of Blade
FRP Complex Resin
Diameter of Wind Rotor
6m
Start (out-in) wind speed
2.5m/s
Wind Rotor height
3.9m
Security wind speed
50m/s
Wind energy ratio
45%
Generator rated power
5KW
Max output power
7.5KW
Generator Type
Three phase Permanent magnet generator
Output power from Generator
0-415V
Charging voltage
240Vdc
Output voltage of Inverter
Single phase 220-240Vac/50HZ or 110-130Vac /60HZ
Stop method
By manual or Automatic Brake
Tower type
Galvanized Free Standing Tower, hydraulic tower for optional
Tower height
Standard height is 12m, and therere 15m, 18m, 20m for optional
Charging control
Intelligent control full-automatically (with overcharge protection)
Inverter power supply
Pure sine wave
Battery Matching (off-grid system)
20Pcs 12V-150AH Lead-acid or colloid batteries
Grid tied inverter matching
10KW Grid tied inverter( or 1 X Windy boy 6000A)
Time of charging (off-grid type)
About 12 hours
Packing Details
Parts' Name
Dimension
Gross Weight
Blades and connection pole
4100× 1400× 950 mm
292kgs
Tower and accessory
8100× 430× 400mm
1380kgs
Wind Turbine & accessory
2100× 255× 103 mm
230kgs
Controller
385× 517× 272 mm
80kgs
PS:if you want to know clearly and in depth the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the FDV-5KW wind turbine complete installing steps and working conditions.
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
