Name:

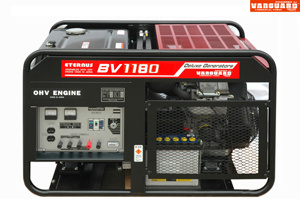

CE Gasoline Home Generating Set 16kVA/16kw (BV1180
Generator Set:
Yes
Engine:
Honda/Kohler/YAMAHA/Vangard/Cummins/China Engine
Fuel:
Gasoline/Diesel
Output Power:
0-30 Kw
Frequency:
50/60 Hz
Cooling System:
Forced Air Cooling
Current:
AC/DC
Certificate:
CE, ISO 9001:2008, Saso, Tlc
Lead Time:
30 Days
Output Type:
AC Single Phase
Product Description
PRODUCT DETAILS
Gasoline Generator (BV1180 16.5kVA) 1) Engine: VANGUARD 6134(35HP) 2) Engine type: Air-cooled, 4-stroke, OHV, two cylinders 3) Starting system: Electric start 4) Displacement: 993CC 5) Frequency: 50Hz/60Hz 6) Rated Vltage: 220V, 230V, 240V/120V, 120V both available 7) Rated power: 13.5KW(50Hz) 17.5KW(60Hz) 8) Max. Power: 17.5KW(50Hz) 19.0KW(60Hz) 9) Fuel tank capacity: 30L 10) Phase: Single 11) Wire: 100% copper coil (with 6inch wheels and battery)
air cooled gasoline generator Model
BV1110
BV1130
BV1150
BV1160
BV1180
Engine
Model
GX620 / B&S
GX670 / B&S
U.S B&S 541477 (27HP)
U.S B&S 543477 (31HP)
U.S B&S 613477 (35HP)
Type
4-Stroke OHV 2 cylinders
Displacement
614 cm³
670 cm³
896 cm³
896 cm³
993 cm³
Cooling system
Air cooling
Starting system
Recoil / Electric
Electric
Fuel consumption Rated load
0.76L/kW@h (at full load)
Fuel tank capacity
25L
30L
Noise level (7m/dB)
72dB/50Hz
78dB/60Hz
71dB/50Hz 77dB/60Hz
75dB/50Hz 80dB/60Hz
Generator
Rated voltage
220V
230V
Rated frequency
50Hz / 60Hz
Rated output
8.5kVA / 9.5kVA
10.5kVA/ 11.5kVA
12.0kVA / 13.0kVA
14.0kVA/ 15.0kVA
16.5kVA / 17.5 kVA
Max. output
9.5kVA /10.5kVA
11.5kVA/
12.5kVA
13.2kVA/ 14.2kVA
15.0kVA/ 16.0kVA
17.5kVA / 19.0kVA
Rated power factor
CosΦ = 1.0
Excitation system
AVR voltage regulation
Pole
2
Drive system
Direct coupled to the engine
Phase
Single
Other
Length x width x height(mm)
953x617x622
1050x670x710
Net weight(kg)
188
195
220
220
220
COMPANY PROFILE
JIANGMEN BAODELI MECHANICAL INDUSTRY CO.,LTD. Is a HONKONG-funded enterprise,which is located in the Pearl River Delta of Guangdong nearby HongKong,Macao and Taiwan with convenient transport service.
BAODELI is specialized in research,developement,manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems.BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001:2008,CE,SASO,3C and JB/T 10304-2001
ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for HONDA,VANGUARD,MITBISHI and KOHLER engines with professional comprehensive performance test systems,the products all are comply with international standards of ISO8528 generator testing. The main products are 2KW ~ 18KW gasoline generator sets with HONDA,KOHLER and VANGUARD engines.And 8 KW ~20KW diesel generator sets wits MITSUBISHI,Cummins and Changzhou diesel engines.The units are professional design,light,low noise,durable. BAODELI strictly implements Japanese technoloogies,process assembly,compact units,powerful output,electric AVR adjustment,stable voltage,simple operation,convenient maintenance and so on. The generator sets are widly used in majority enterprises such as telecon,bank,railway,oil field,construction,army,security systems etc. Our products had sold in domestic market and exported to Europe,South America,Southeast Asia,Hongkong and Taiwan etc. Science and technology as guide,strive for survival on the basis of quality as the tenet of BAODELI,which are offering the environment protection and high quality products.
COMPANY PROFILE
JIANGMEN BAODELI MECHANICAL INDUSTRY Co., Ltd. is a HONKONG-funded enterprise, which is located in the Pearl River Delta of Guangdong nearby HongKong, Macao and Taiwan with convenient transport service.
BAODELI is specialized in research, developement, manufacture and sale of gasoline and diesel generator sets with high-tech power and best electronical systems. BAODELI had advanced production and test equipment for products research with quality management system of certification ISO9001: 2008, CE, SASO, 3C and JB/T 10304-2001
Our company was established in 2004, in generator manufacturing industry has 10 years of technical research, specializing in the production of gasoline and diesel generators, water pumps and various kinds of garden tools.
ETERNUS as the top brand of generator sets of BAODELI which is authorized OEM for Honda, VANGUARD, MITBISHI and KOHLER engines with professional comprehensive performance test systems, the products all are comply with international standards of ISO8528 generator testing.
The main products are 2KW ~ 18KW gasoline generator sets with Honda, KOHLER and VANGUARD engines. And 8 KW ~20KW diesel generator sets Wits MITSUBISHI, Cummins and Changzhou diesel engines. The units are professional design, light, low noise, durable.
BAODELI strictly implements Japanese technoloogies, process assembly, compact units, powerful output, electric AVR adjustment, stable voltage, simple operation, convenient maintenance and so on.
The generator sets are widly used in majority enterprises such as telecon, bank, railway, oil field, construction, army, security systems etc.
Our products had sold in domestic market and exported to Europe, South America, Southeast Asia, Hongkong and Taiwan etc.
Science and technology as guide, strive for survival on the basis of quality as the tenet of BAODELI, which are offering the environment protection and high quality products.
