Rated Power:
300W
Voltage:
12V or 24V
Blade Number:
5PCS
Gross Weight:
25kg
Rotating Shaft:
Vertical
Number Of Blade:
Multiple-Blade
Stress Way Of Blade:
Resistance
Product Description

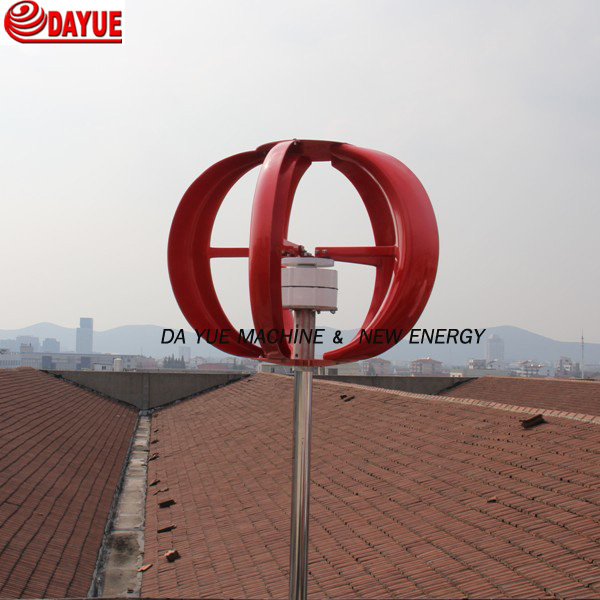

300w Vertical Axis Wind Turbine
Product Features:
1.Low start-up speed,high wind power utilization, light,cute, low vibration. 2.Human-friendly design,easy to install and maintain. 4.Blades using reinforced glass fiber, helped with optimized structure and aerodynamic shape, it enhanced wind power coefficient and power generating capacity. 5.Using patented permanent magnet generator and special stator, it effectively reduces torque resistance and guarantees the stability .
Power(w)
300
Rated wind speed(m/s)
9-11
Rotor diameter(m)
0.8
Start-up wind speed
(m/s)
2.2
Height of blade(m)
1.2
Range of working wind speed(m/s)
2.2-25
Material of blades and numbers
Glass Fiber Reinforced Plastic/5
Survival wind speed(m/s)
50
Rated rotor speed (m/s)
150r/min
Output Voltage
AC12/24V
Speed regulation method
Electromagnetic control
Stop method
Electromagnetic brake
Wind energy utilized coefficient
30%-40%
Sweep wind area(m2)
1.32665
Range of working temperature
-45°C-60°C
Suggested supporting battery
2pcs12v50ah
Top weight (kg)
20
Tower type and height
Guy cable tower/8m
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
