| Prod Model: |
PS3200DX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Frequency: |
50Hz 60Hz |
| Max. AC Output: |
2.4kw |
| Rated Output: |
2kw |
| Rated Voltage: |
230V 240V |
| Rated Current: |
8.7A 8.4A |
| Engine: |
4-Stroke |
| Output Type: |
AC Single Phase |

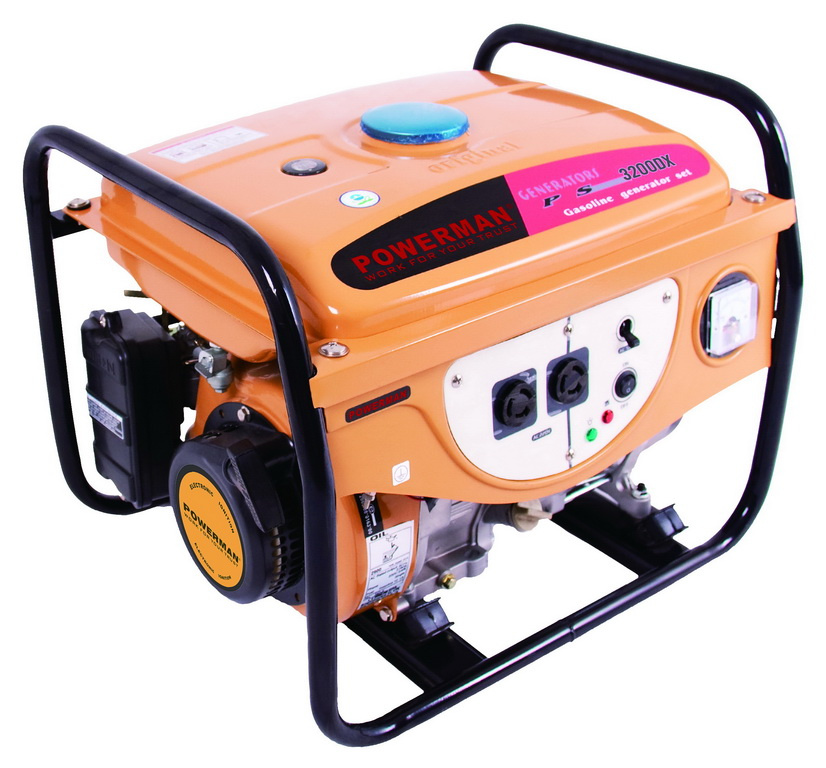

Product Description
Generator
Rated Frequency: 50Hz 60Hz
Max. AC output: 2.4KW
Rated Output: 2KW
Rated voltage: 230V 240V
Rated current: 8.7A 8.4A
Over current protection model: Non-Fuse Breaker
ENGINE
Type: Air-cooled, 4-stroke
Fuel: Gasoline
Fuel tank capacity: 9.2 L
Displacement: 163CC 171CC
Noise Level (7m)(dB(A)): 67 65
Engine oil quantity: 0.6L
Ignition system: TCI
| MODEL | | PS3200DX |
| GENERATOR | | | |
| Type | | |
| Voltage regulation system | | |
| Frequency (Hz) | | 50 | 60 |
| Rated output (W) | | 2000 | 2300 |
| Max output (W) | | 2300 | 2500 |
| Rated voltage (V) | | |
| DC output (V-A) | | - |
| Fuel tank (L) | | 12 |
| ENGINE | | | |
| Model | | G175 |
| Type | | |
| Fuel | | |
| Displacement (cc) | | 171 |
| Max output (HP) | 4000r.p.m. | 6 |
| Ignition system | | |
| Starting system | | |
| Noise level (7m) (dB(A)) | | 66 |
| PACKAGE | | | |
| Dimension (mm) | | 545*440*460 |
| N.W. (kg) | | 41.5 |
