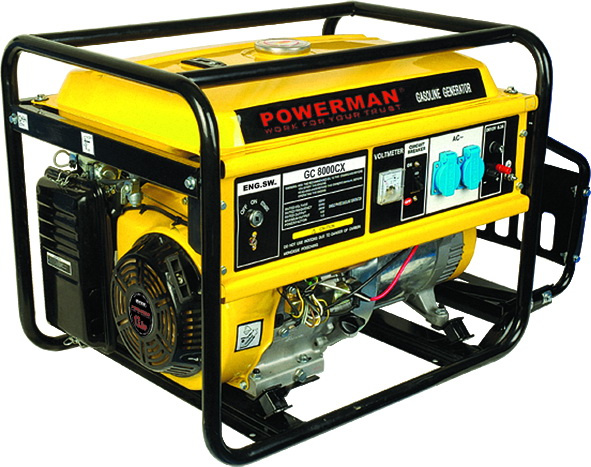

| Prod Model: |
GC8000CX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Output Kw(HP): |
6.5kw |
| Rated Output (W): |
6kw |
| Engine Type: |
4-Stroke, 2 Cylinders, Ohc |
| Starting System: |
Recoil |
| Fuel Tank: |
25L |
| Output Type: |
AC Single Phase |
Product Description
Generator
Type: Self-excitating, 2-pole, field rotating type
Voltage regulation system: AVR
Phase: Single
Frequency: 50Hz 60Hz
Rated power: 6000W 6500W
Max power: 6500W 7000W
Voltage: 220V 110V
DC output: 12V-8.3A
Engine
Model: 4-stroke, air-cooled
Ignition system: Transistor
Starting system: Recoil
Displacement: 420CC
Rated output: 4000rpm 16HP
Fuel tank: 25L
| MODEL | GC8000CX |
| GENERATOR | |
| Type | Brush, single-phase |
| Voltage regulation system | AVR | AVR |
| Frequency (Hz) | 50 | 60 |
| Rated output (W) | 6000 | 6500 |
| Max output (W) | 6500 | 7000 |
| Rated voltage (V) | 110-240 | 110-240 |
| DC output (V-A) | 12V-8.3A | 12V-8.3A |
| Fuel Tank (L) | 25 |
| ENGINE | |
| Model | GE420 |
| Type | 4 stroke, air-cooled |
| Displacement (cc) | 420 |
| Max output (HP) | 16 |
| Ignition system | |
| Starting system | Recoil/Electric |
| PACKAGE | |
| Dimension (mm) | 700x530x560 |
| N. W. (kg) | 85 |
