| Prod Model: |
GH1900DX |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency (Hz): |
50 60 |
| Rated Output (W): |
800 1000 |
| Max Output (W): |
1000 1300 |
| Rated Voltage (V): |
110-240 |
| DC Output (V-a): |
Optional |
| Fuel Tank (L): |
6 |
| Output Type: |
AC Single Phase |
Product Description

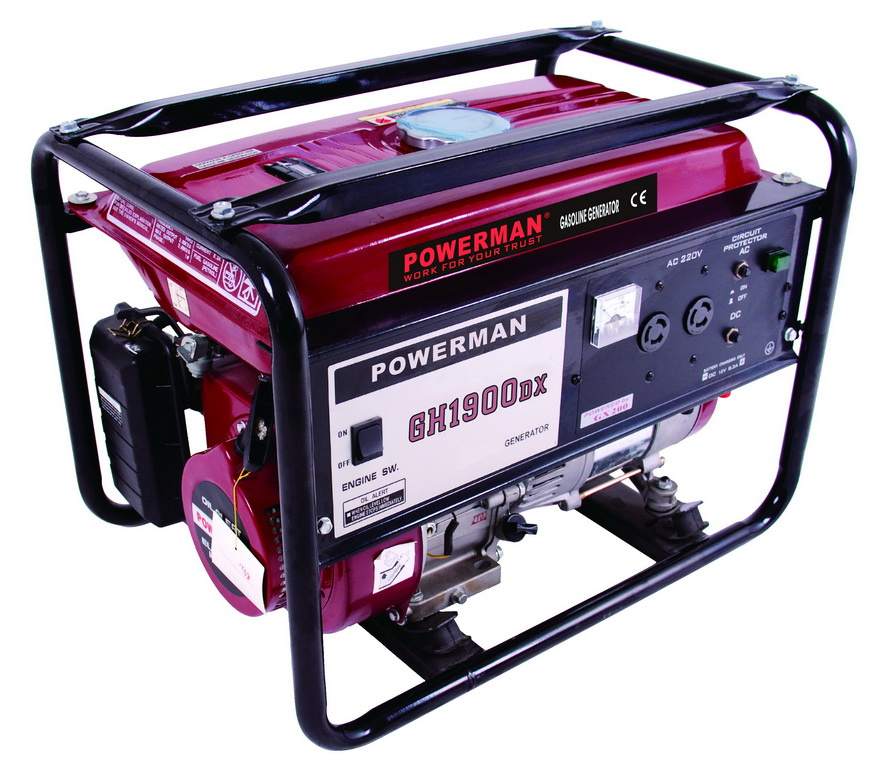

MODEL GH1900DX
GENERATOR
Type Brushless, single-phase
Voltage regulation system Capacitor
Frequency (Hz) 50 60
Rated output (W) 800 1000
Max output (W) 1000 1300
Rated voltage (V) 110-240
DC output (V-A) Optional
Fuel tank (L) 6
ENGINE
Model 154F
Type 4-Stroke, air-cooled
Fuel Gasoline
Displacement (CC) 87
Max output (HP) 2.8/4000r. P. M.
Ignition system TCI
Starting system Recoil
Noise level (7m) (dB(A)) 56
PACKAGE
Dimension (mm) 460x360x370
N. W. (kg) 26
| MODEL | GH1900DX |
| GENERATOR | |
| Type | Brushless, single-phase |
| Voltage regulation system | Capacitor |
| Frequency (Hz) | 50 | 60 |
| Rated output (W) | 800 | 1000 |
| Max output (W) | 1000 | 1300 |
| Rated voltage (V) | 110-240 |
| DC output (V-A) | Optional |
| Fuel tank (L) | 6 |
| ENGINE | |
| Model | 154F |
| Type | 4-Stroke, air-cooled |
| Fuel | Gasoline |
| Displacement (cc) | 87 |
| Max output (HP) | 2.8/4000r. p. m. |
| Ignition system | TCI |
| Starting system | Recoil |
| Noise level (7m) (dB(A)) | 56 |
| PACKAGE | |
| Dimension (mm) | 460x360x370 |
| N. W. (kg) | 26 |
