Rated Power:
1000W
Rotor Diameter:
2.8meters
Voltage:
24V or 48V Avaliable
Star-up Wind Speed:
3m/S
Generator:
3 Phase AC Permanent Magnet Generator
The Blade Number:
3PCS
The Blade Materal:
Glass
Number Of Blade:
Three Blade
Rotating Shaft:
Horizontal
Stress Way Of Blade:
Lift Force
Phase:
3 Phase
Product Description

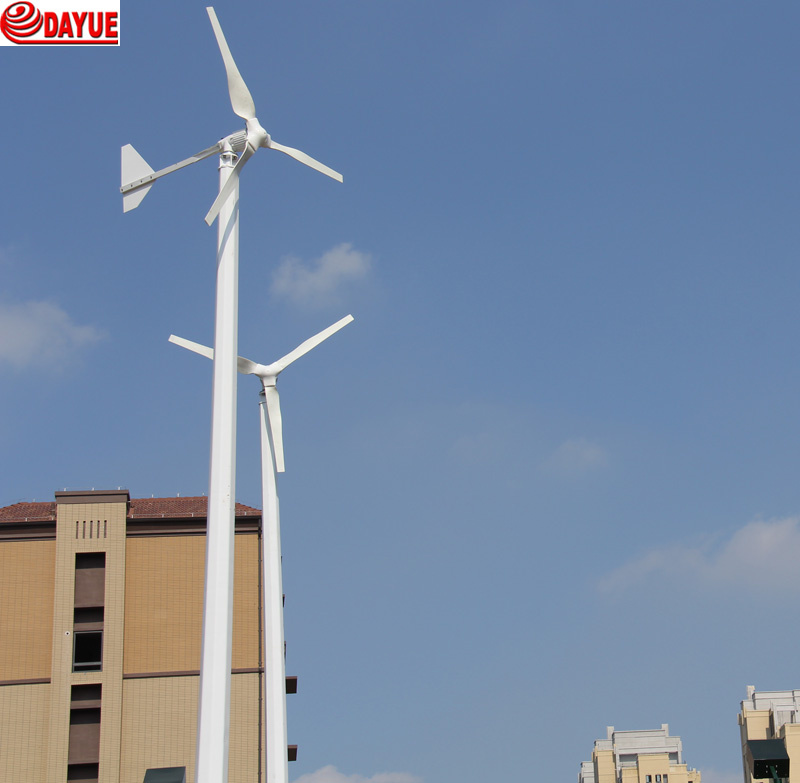

This 1kw wind turbine system is a special design system for hybrid using, which is adopted the permanent magnet generator more improve generator efficiency , and equipped with carboform blades so that it can bear strong wind speed , suitable install at seaside or desert area.
PS:if you want to know clearly and in depth the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the FD-1KW wind turbine complete installing steps and working video.
Model
Voltage grade
Rotor diameter
Star-up wind speed
Cut-in wind speed
Rated wind speed
Cut-out wind speed
Survival wind speed
FD-1000
24/48Vdc
2.8m
3 m/s
3.8 m/s
15 m/s
20m/s
50 m/s
Charge indication
When on charging ,bright light
Indicating function of controller
Indicating five grades: under voltage, low voltage, middle-high voltage and over voltage
Over voltage protection
29Vdc, (24V system ) 56Vdc, (48V system )
Under voltage protection
21Vdc, (24V system) 42Vdc,(48V system )
Overload protection
Automatic lock in 25sec for 100-120% ,overload, automatic lock in 1sec for 120-200% overload, overload, automatic lock in 0.1sec for more than 200% overload
Output waveform
Pure sine wave (distortion<3% )
Charging current
Maximum other charging current 18A ,CPU controls charge
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;

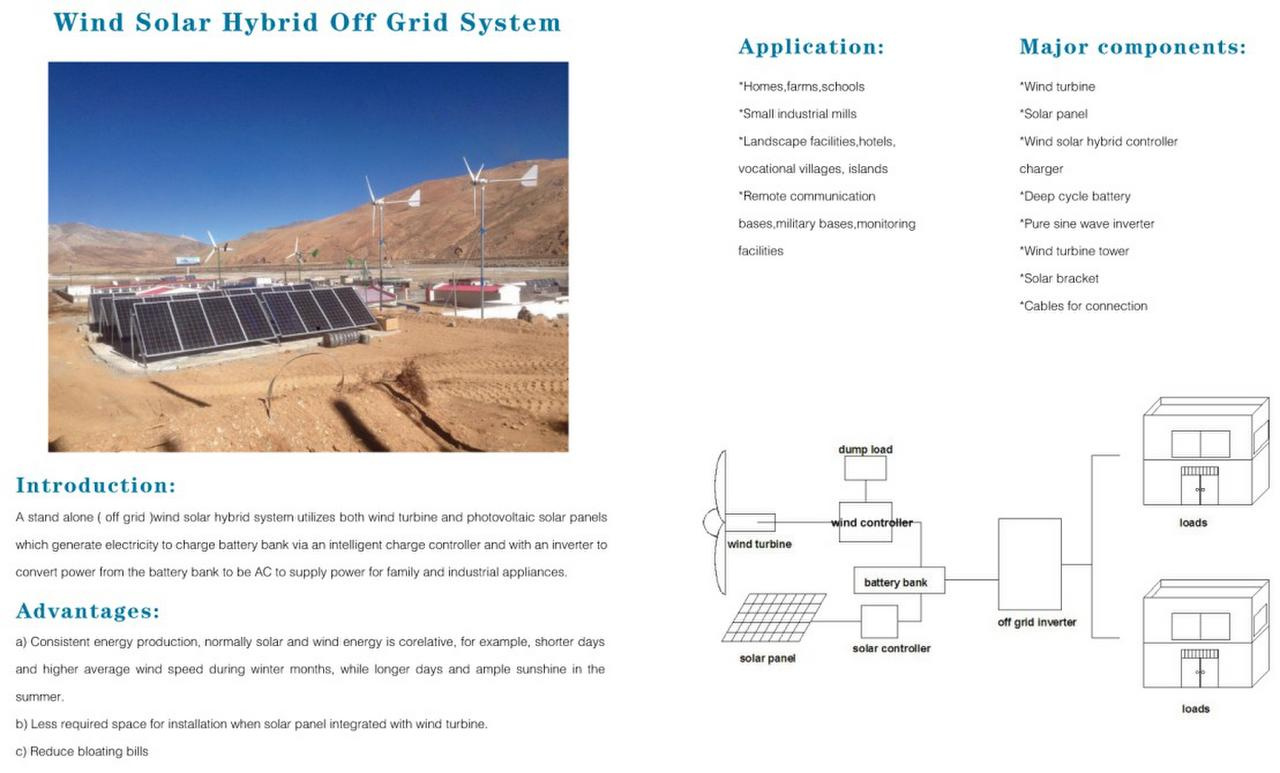

There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
PS: if you want to know clearly and in depth the vertical wind turbine each details, designing , material, even the bolts mdels, plz click the "view video " buttom below the main picture, then you will see the FD-1KW wind turbine complete installing steps and working video.
