Capacity:
700W to 10kw
Systm Type:
on Grid System/off Grid System
Working Time:
24hrs
Output Voltage:
110V/120/220/230V
Rated Output Power:
1kw 2kw 3kw 5kw 10kw
Type:
Wind and Solar Hybrid System
Product Description

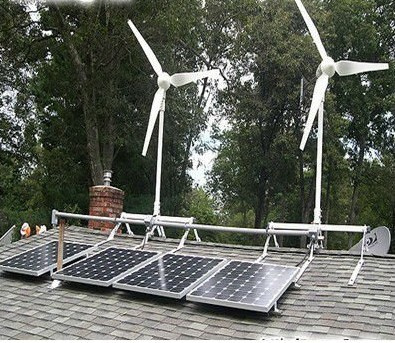

1KW 2KW 3KW 5KW wind solar home hybrid system/10KW solar and wind generator
Solar & wind hybrid systems product mainly use for home, street lights system Both of them are Economic, Green and Environmentally Friendly. At night or rainy day, wind turbine generate wind power. In sunny day, solar panel generate solar power. In windy and sunny day, both of them generate power. Wind turbine: 3pcs or 5pcs blades optional; Guy cable tower or free stand tower optional; Solar panel: Mono or poly panel optional; Battery capacity and quantity can optional; On grid hybrid system: Solar +wind +on grid hybrid controller+ grid tie inverter Off grid hybrid system: Solar +wind +hybrid controller +off grid inverter +battery
TANFON 1KW hybrid power system :200w solar +600w wind
System Basic Information
Solar panel power:200W+ Wind turbine power:600W Suitable for daily power consumption:1.2-1.8KWH Allowable Max Loads power:1200w
Solar panel
Cell type: mono( polycrystalline, optional ) Max power :200w Vmp:36.8V Imp :8.3A Size : 1498*998*40mm 25 years power output guarantee
QTY 1pc
Wind turbine
Power:600w Advantage: light weight, small volume Starting wind speed:2.5m/s Rated wind speed:12m/s Security wind speed:45m/s Weight:17kg Rated speed:650r/m 3years warranty,20year use life
QTY 1pc
Notes: 1.pictures shown are for reference; 2.power consumption data is based on areas with average wind speed of 4.5m/s and average daily peak power sunshine of 4hrs. 3.the battery capacity is designed for 2 days backup in non-sunshine and windless weather 4.solar panel racks and cables are not included
Remark: 1)for wind and solar have 5 years warranty; 2)system other parts have 2 years warranty; 3)ship the free parts for service
hybrid controller
Input 200W solar power+600W wind power DC 24V input ; Protection Function: Solar reverse charge protection , Solar reverse connection protection, Battery-over-charge-protection Battery-reverse connection protection,
QTY 1pc
pure sine wave Inverter
Rate output Power:1000W pure sine wave DC:24v ; AC:110v or 220v With AC charger build-in Protection against overload, short circuit, anti-reverse, discharger, etc.
QTY 1pc
Battery
12V/100AH 2 piece Solar power lead-acid battery ,full sealed Deep cycle free maintenance type, special used for solar or wind power storage Service life:5-6 years ,warranty :2 year
QTY 2pc
