Prod Model: |
SWH3KW, SWH5KW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Wind Solar Hybrid System Generator |
Working Way: |
Home System, Street Lights System Ect |
Solar Power: |
2000W |
Wind Power: |
3000W |
System Working: |
on Grid System or off Grid System |
Delivery Time: |
10-15 Days |
OEM: |
Accept |
Accept Load Power: |
5kw |
Wind, Solar Warranty: |
3 Years |
Other Parts: |
2 Years |
System: |
Off-Grid system |
Product Description
Home Use Wind Solar Hybrid System/ Solar wind generator 3kw, 5kw Made in China
We can design the solar wind power generator according to customer's requires, more information and quotation, pls contact me directly
Mobile): +86 15875797634
Solar & wind hybrid systems product mainly use for home, street lights system
Both of them are Economic, Green and Environmentally Friendly.

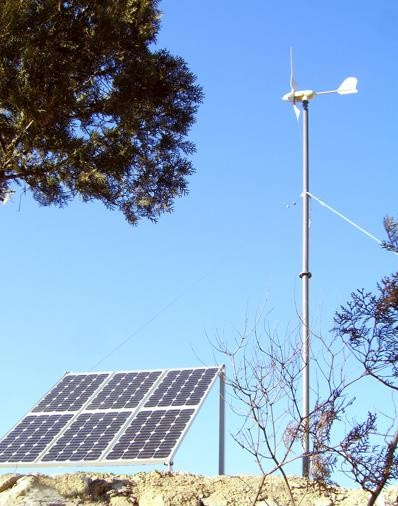

At night or rainy day, wind turbine generate wind power. In sunny day, solar panel generate solar power. In windy and sunny day, both of them generate power.
Wind turbine: 3PCS or 5PCS blades optional; Guy cable tower or free stand tower optional;
Solar panel: Mono or poly panel optional; Battery capacity and quantity can optional;
On grid hybrid system:
Solar +wind +on grid hybrid controller+ grid tie inverter
Off grid hybrid system:
Solar +wind +hybrid controller +off grid inverter +battery
We accpet sepcial request, and can design the right system to you.
Solar and wind hybrid power system :2000w solar +3000w wind |
System Basic Information | Solar panel power:2000W+ Wind turbine power:3000W Suitable for daily power consumption:12-18KWH Allowable Max Loads power:5000w |
Solar panel | FS250W mono solar panel( poly optional ) , Max power :250w Vmp: 34.4V Voc: 43.2V Imp : 7.2A Weight: 18KG Size : 1610*983*35mm 25 years life span (CE TUV) Terminal block: IP65 with MC4 connector Connect way: 4pcs panels in series as a string, 2 strings in parallel | QTY 8pcs | |
Solar panel rack | Slope mounting rack , No welding/ cutting at site, easy mounting. More options to select: Ground mounting rack Array type rack ;Standing –pole type rack | QTY 1set |
Wind turbine | Power:3000w Advantage: light weight, small volume Starting wind speed:2.5m/s Rated wind speed:12.5m/s Security wind speed:45m/s Rated speed:374r/m 3 years warranty,20year use life | QTY 1pc |
hybrid controller | Input 2000W solar power+3000W wind power DC 96V input ;MPPT intelligent control Protection Function: Solar reverse charge protection , Solar reverse connection protection, Battery-over-charge-protection Battery-reverse connection protection, Lightning protection, Wind turbine current limiting, Wind turbine automatic brake and manual brake. | QTY 1pc |
pure sine wave Inverter | Rate output Power:5KW pure sine wave DC:96v ;AC:110v or 220v With AC charger build-in Protection against overload, short circuit, discharger, etc. | QTY 1pc |
Battery | Capacity:12V/200AH full sealed Solar power Gel battery Service life:7-8 years , Size:522*238*218mm, Weight:62KG Connect way:8pcs batteries in parallel | QTY 8pcs |
Cables | 10mm² cable,(one red and one black) International standard, with specification suitable for solar system, include terminals and the cable connect the battery | 100m |
Foshan Tanfon Energy Technology Co., Ltd. is specialized in R&D, manufacturing and selling solar wind product and all kinds of pure sine wave inverter. As one of the leading factories in the green energy source field, Tanfon was initially established in the year of 1996. We are a professional manufacturer of green energy products including: Solar power system, wind power system, solar street light system, all kinds pure sine wave inverter(solar inverter, wind inverter, home UPS inverter ), controller, battery products., with advantage of possessing a professional R&D team to develop new wind energy turbine and inverter in concept of "Green Energy Leads Low Carbon Life".
Product sales to
(Pakistan, Nigeria, Canada, , Costa-Rica, Cyprus, Mocambique, Turkey, Malavi, Thiland, Philippines, Belgium, Indonesia, Czech Republic, Madagascar, Italy, Australia, Egypt, Tajikistan, Sri Lanka, Malaysia, France, USA, Guaemala, Switzerland, Israel ect)
We accept OEM and small trial orders, contacting with us for more information. All inquiries will be replied with in 24 hours. We also cordially welcome all clients to visit us and discuss business and place orders with us by any means of communication. We believe that with our best quality products and your marketing channel, we are certain to establish a lasting mutual beneficial cooperation relationship with you.
Good quality, best price and better technical support and service, make Tanfon energy technology Co., Ltd as your most valuable cooperator in China.
