Rated Power:
1kw
Blade Number:
5PCS
Diameter Of Wind Rotor:
2meters
Wind Rotor Height:
2.4meters
Rotating Shaft:
Vertical
Stress Way Of Blade:
Lift Force
Number Of Blade:
Multiple-Blade
Phase:
3 Phase
Product Description

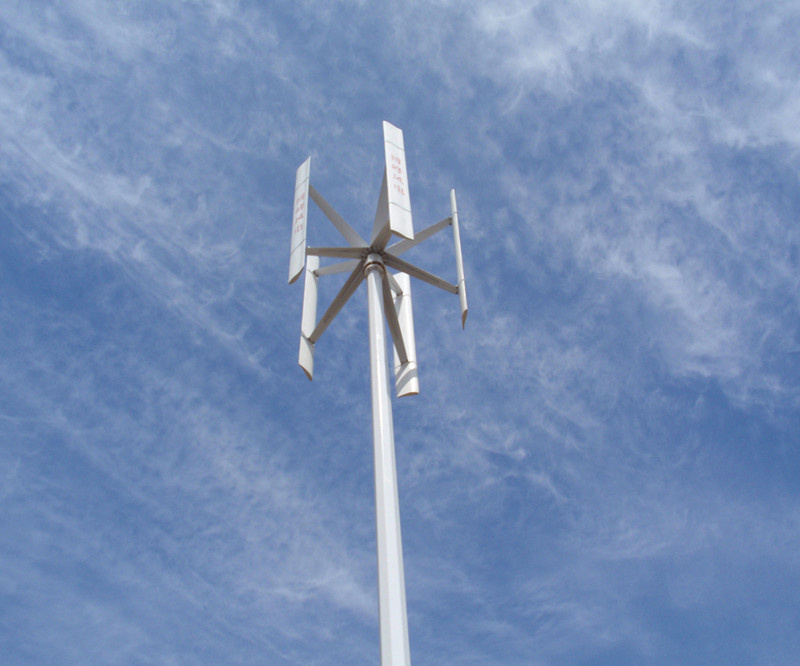

1kw Vertical Axis Wind Turbine (FDV-1KW)
- 1KW, 2KW, 3KW Wind Turbine (220Vac/50-60hz) : A family without more electric appliances, they can choose this unit just for powering lighting, TV set or DVD player , electric fans , computers , microwave ,refrigerator etc.
-FDV-1KW-5KW VAWT (Vertical axis) which is running from 2m/s- 25m/s wind speed ,it is adopted the meglev axis technology for reducing friction between rotor and shaft , so the noise is really lower and can be installed at rooftop
Factory View:
Numbers of Blade
5 pcs
Material of Blade
FRP Complex Resin
Diameter of Wind Rotor
2m
Start (out-in) wind speed
1.8m/s
Wind Rotor height
2.4m
Security wind speed
45m/s
Rated wind speed
8m/s
Wind energy ratio
45%
Generator rated power
1kw
Max output power
1.5kw
Generator Type
Three phase Permanent magnet generator
Power Output from Generator
0-200V
Charging voltage
48Vdc
Output voltage of Inverter
Single phase 220-240Vac/50HZ or 110-130Vac /60HZ
Stop method
Mechanism or Electron for selection
Tower type
Galvanized tower
Tower height
6m
Charging control
Intelligent control full-automatically (with overcharge protection)
Inverter power supply
Pure sine wave
Battery Matching (off-grid system)
4Pcs 12V-150AH Lead-acid or colloid batteries
Grid tied inverter matching
2KW grid tied inverter
Time of charging (off-grid type)
About 8 hours
Packing Details
Parts' Name
Dimension
Gross Weight
Blades and connection pole
2300× 800× 520mm
108kgs
Tower and accessory
6500× 155× 103mm
48kgs
Wind Turbine & accessory
1700× 600× 600mm
18kgs
Wuxi Dayue Machine & Renewable Energy is a joint venture enterprise, which is involving in researching, developing, manufacturing alternative energy products and metal processing machinry for more than 17 years experience (Since 1994), now Dayue enterprise possesses two factories And one Export company.
The Dayue Renewable Energy Factory is specializing in designing and manufacturing the Alternative Energy Products including:
- FD series Horizontal Axis Fixed Blades Wind Turbine (300W-20KW)
-Wind & Solar Hybrid Street Light System (500W and 800W)
-Steel Pole (Floodlight Pole, Street Light Pole, Traffic Steel Pole)
These products have been strictly tested by SGS, Intertek, AOC testing institutions in China and obtained the CE certification, so far these products have been exported to UK, France, Germany, Portugal, Danmark, Poland, Italy, Canada, Kenya, USA, Mexico etc 63countries
In the Alternative Energy Field, Dayue just selecting the best electric elements such as on-grid controller, grid tied inverter, pure sine wave inverter with our on-grid version wind turbine, the grid tied inverter we selection which are produced by the professional factory and obtained the CE, G83, TUV certification;
There're good quality pure sine wave inverter with the FD series for off-grid version wind turbines, now we designed and successful tested the 500W & 900W wind and solar hybrid street lighting system for government's lighting project, which can be installed at low temperature -40 degree C to 50 degree C, this system can be installed at any places as street lighting in city and town.
If you are a serious users and rational investors, Dayue company will be you ideal cooperation partner, because you do not need to take any risks for you invest plan, we will provide you the technology and good quality products, even dispatch our technicians to assist you make the installation and commissioning etc A-Z service, just call or email to us.
