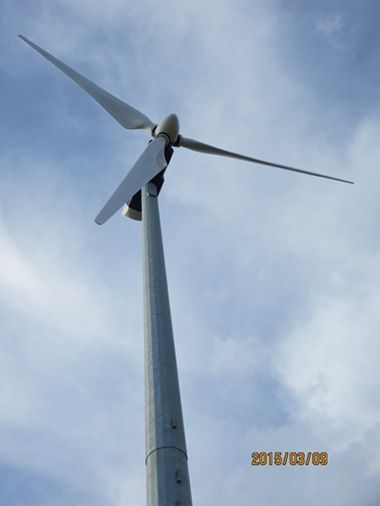

wind turbine 20kw windgenerator
10m, 12m rotor diameter can choose
1). pitch control wind turbine 20kw:
- 12m, 10m rotor diameter can choose
- electric pitch control
- electric yawing
- RS 485 Communication, Siemens PLC s7-1200
- NSK bearing
- hydraulic disk brake
-Siemens brushless yaw motor, Siemens pitch control motor
2). wind turbine pitch control 20kw MODEL:
- BFD 10-20KW ( rotor diameter 10m)
- BFD12-20KW ( rotor diameter 12m)
3). 20kw pitch control wind turbine technical parameter: (BFD12-20KW)
Model | BFD12-20KW wind turbine |
Rotor Diameter(m) | 12 |
Blade Material | Reinforced FPR for wind turbine 20kw |
Blade Quantity | 3 |
Rated Wind Speed (m/s) | 9 |
Start-up Wind Speed (m/s) | 3 |
Working Wind Speed (m/s) | 3.0-35 |
Security Wind Speed (m/s) | 50 |
Starting Torque (n/m) | 13 |
Speed Adjustment Mode | Pitch Controlled + Active Yawing |
Stop Mode | Feathering propeller , Yawing, Electromagnetic Brake |
Generator Type | Permanent Magnet Three Phase AC generator |
Rated Voltage | 0-700VDC |
Rated Power | 20KW |
Max. Power | 30KW |
Rated RPM(R/Min.) | 140 |
Mainbody Weight(kg) | 1500 |
Tower Weight 18m(kg) | 3200 |
Sales Manager: Taylor Gao
phone: 0086 15066594737
Yaneng is manufacturer which produces small wind power turbine generator system and controlling system, wind and solar hybrid power system. The company has passed certificate of ISO 9001 and CE.
Products characterised by green energy, environmental protection, ans renewable natural energy.
Main products: 300W-60kw wind turbine, off grid /grid tie controller and inverter, wind tower
