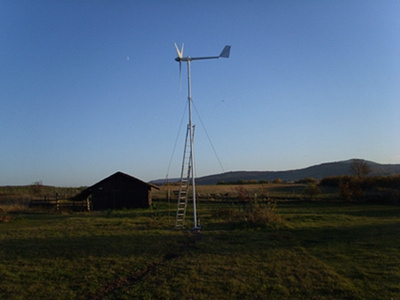

3kw home use permanent magnet generator /wind powered heater/wind turbines
3kw wind turbine models:
- FD 4-3KW ( pitch fixed, rotor diameter is 4m)
- BFD 4-3KW ( pitch control, rotor diameter is 4m)
Technical specification:
Rotor Diameter: 4m
Number of Blades: 3pcs
Material of Blades: Fibre glass expoxy
Cut-in wind speed: 3m/s
Working wind speed: 3-25m/s
Survival wind speed: 40m/s
Rated wind speed: 10m/s
Rated rotate speed: 300r/min
Rated output power: 3kw
Max output power: 4.5kw
Type of tower: Guy wire tower
Type of generator: Permanent-magnet 3 Phase AC
Speed regulation method: Electromagnetic brake +Yaw
Stop method: Electromagnetic brake + manual brak
Working voltage: DC48-DC360V
Operating Temperature: -40---+60
Yaneng is manufacturer which produces small wind power turbine generator system and controlling system, wind and solar hybrid power system. The company has passed certificate of ISO 9001 and CE.
Products characterised by green energy, environmental protection, ans renewable natural energy.
Main products: 300W-60kw wind turbine, off grid /grid tie controller and inverter, wind tower
