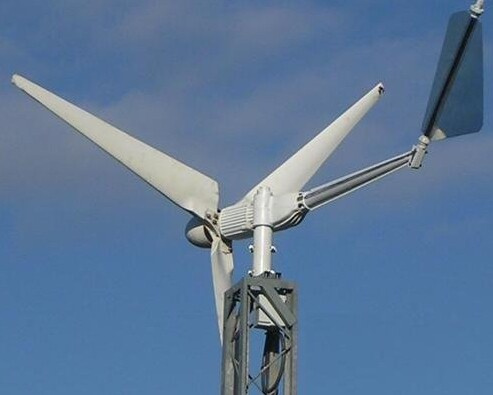

2500w wind turbine for home use , small wind power generator
Technical Parameter:
Parameters |
Diameters of wind wheel | 3.8m for low wind place |
Material of blades | reinforced FRP |
Blades number | 3 |
Blades length | 1850mm |
RPM | 400r/min |
Rated wind speed | 9m/s |
Start up wind speed | 3m/s |
Working wind speed | 3-20m/s |
Survival wind speed | 40m/s |
Generator style | 3 phase AC Permanent magnet generator |
Grade of generator | IP54 |
Material of generator | Castiron/Aluminum |
Rated power | 2500w |
The max power | 3000w |
Working voltage | 24vdc-240vdc |
Start toque | 2.2n/m |
Speed control | Electromagnetic+yaw |
Stop method | Electromagnetic brake+ manual brake |
The height of tower | 8m |
Necessary battery | 12V150ah, 8pcs |
Sales Manager: Taylor Gao
phone: 0086 15066594737
Yaneng is manufacturer which produces small wind power turbine generator system and controlling system, wind and solar hybrid power system. The company has passed certificate of ISO 9001 and CE.
Products characterised by green energy, environmental protection, ans renewable natural energy.
Main products: 300W-60kw wind turbine, off grid /grid tie controller and inverter, wind tower
