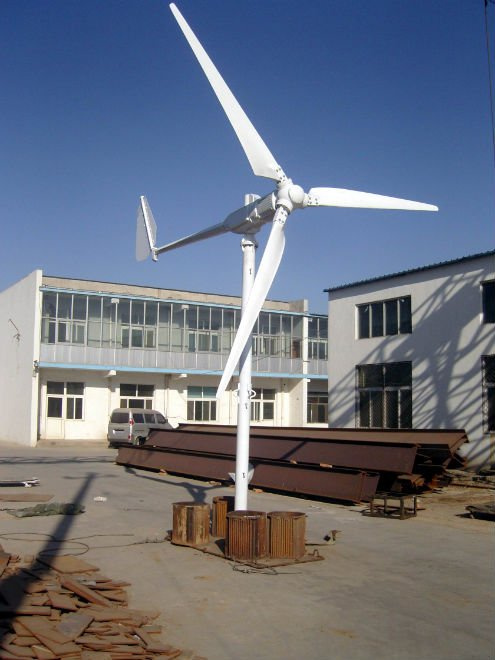

off Gird/Grid Tie 5kw Wind Generator/Pitch Control Wind Turbines

1).  5kw wind turbines have three models:
- FD 5-5KW ( pitch fixed, rotor diameter 5m)
- FD 6-5KW ( pitch fixed, rotor diameter 6m)
- BFD5-5KW ( pitch control, rotor diameter 5m)


2). TECHNICAL PARAMETER
Item FD5-5kw FD6-5kw
Rotor diameter(m) 5/6
Blade material Reinforced FPR
Blade quantity 3
Rated wind speed(m/s) 12/10
Start-up wind speed(m/s) 4
Working wind speed(m/s) 4.0-30
Security wind speed(m/s) 50
Start torque (n/m) 9
Speed regulation method Electromagnetic brake + Yawing
Stop method Electromagnetic Brake + Manual brake
Generator type Permanent magnet, three phase, AC
Rated power 5KW
Maximum power 7.5KW
Rated rotating speed(r/min) 240
Working voltage DC48V-DC600v optional
Main body weight(kg) 477




3).  5kw variable speed pitch control Feature:

Rotor:
Highquality steel precision molding, Blade made by Reinforced fiber glass, High flexural strength, high resistance to erosion and long service life.

Generator:
Rotor drive directly, Low-speed permanent magnet synchronous generator, overload rate 150%;
Adjustable blade generator: Using stable adjustable blade system, and not changed by the operating environment, environment adaptability;


Speed adjusting performance:
System control accuracy + 10r/min, not overspeed when encounter gale. Rotor efficiency can reach 42%, noise level less than 65 db.


Lowspeed start:
According to the wind condition, adjust initial Angle of blades and it can make the wind generator start at low speed, start wind speed: 2m/s.


Manual brake:
Reliable brake institutions, convenient operation, Shut down can be realized at any time.


Self-releasing hook:

Collection slip ring releasinghook automatically, ensure cable without winding, double carbon brush structure to ensure power without transmission fault.


Adaptability:

Application wind speed scope 3~30m/s, Basic covers land common wind speeds.



-------------------------------------------
