Introduction:

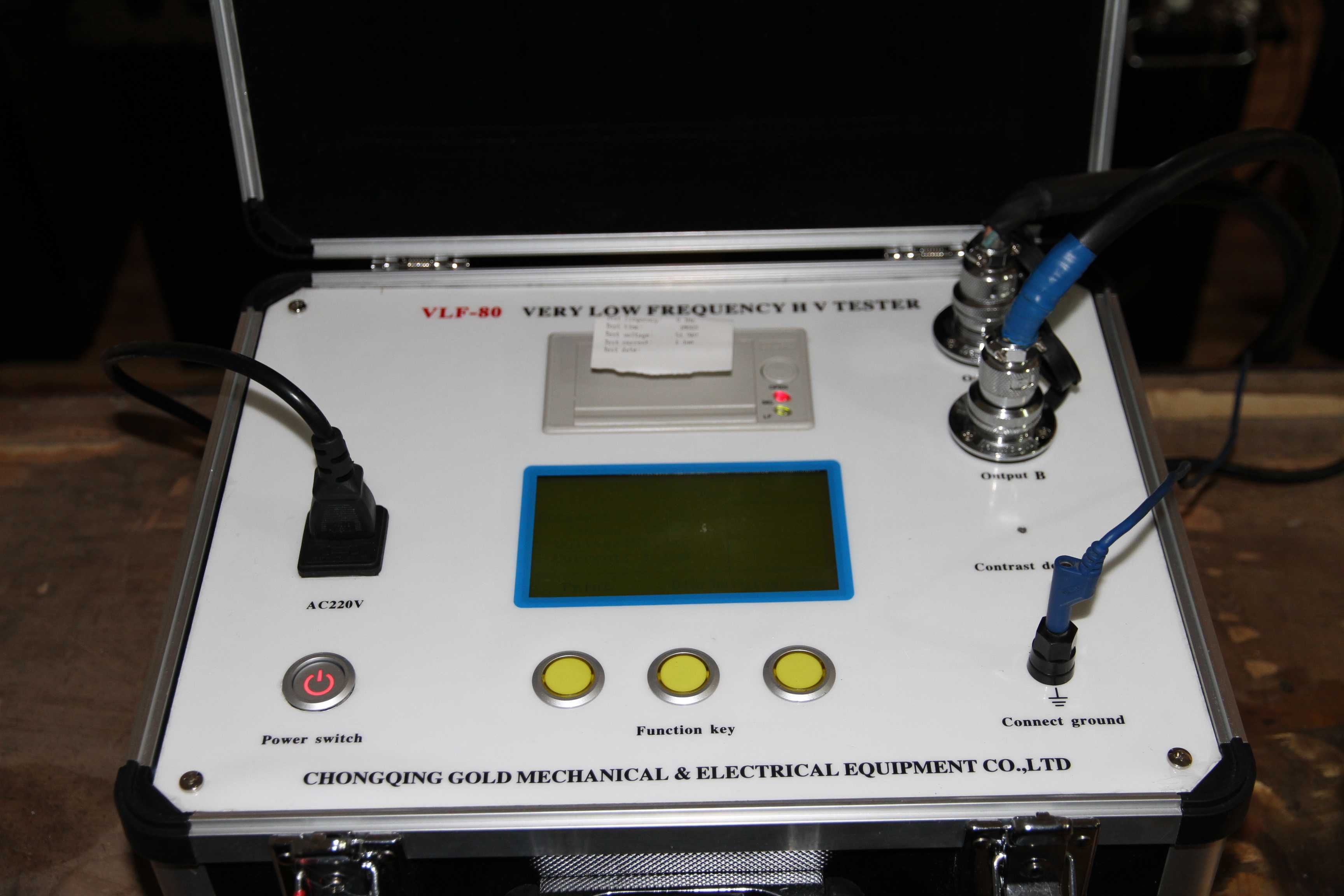

Very Low Frequency High Voltage Generator combines modern advanced digital variable frequency technology and micro computer control together, therefore, it can realize the full automatic voltage boost, stepdown, measurement and protection as well as the manual intervention in the process of automatic voltage boost. The full electronic design ensures the small size and light weight.
The big LCD screen ensures the clear and visual display, and can display the output wave form. The printer outputs test reports.
Technical parameters:
1. Output voltage ratings: See Details of Table Below
2. Output frequency: 0.1Hz, 0.05Hz, 0.02Hz
3. Measurement accuracy: 3%
4. Positive and negative voltage peak errors: No more than 3%
5. Voltage wave form distortion: No more than 5%
6. Use condition: Indoor and outdoor; Temperature: -10C+40C
Humidity: No more than 85%RH
7. Power: AC50Hz, 220V ± 5%
8. Power supply fuse tube: See Details of Table Below
|
Model |
Rated Voltage/current |
Load Carrying
Capacity |
Power
Fuse Tube |
Product Structure and Weight |
|
VLF-30 |
30kV
(Peak) |
0.1Hz,≤1.1µF |
10A |
Controller:4kg
Booster: 25kg |
|
0.05Hz,≤2.2µF |
|
0.02Hz,≤5.5µF |
|
VLF-50 |
50kV
(Peak) |
0.1Hz,≤1.1µF |
20A |
Controller:4kg
Booster: 50kg |
|
0.05Hz,≤2.2µF |
|
0.02Hz,≤5.5µF |
|
VLF-80 |
80kV
(Peak) |
0.1Hz,≤0.5µF |
30A |
Controller:4kg
Booster Grade 1(30kV):25kg
Booster Grade 2(50kV):50kg |
|
0.05Hz,≤1µF |
|
0.02Hz,≤2.5µF |
