I---Application

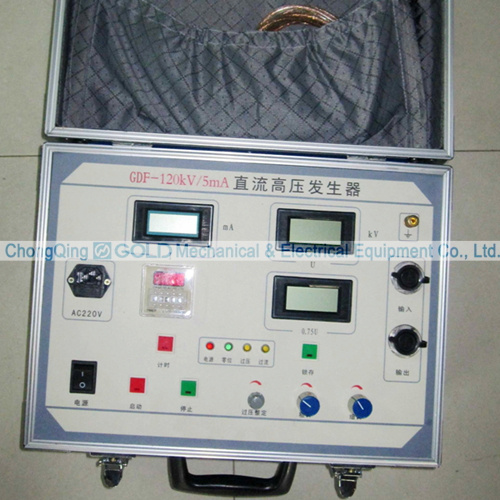

GDF DC high voltage generator is DC high voltage power supply equipment which is applied in power cable test and arrester test in power system.
It has a 75% voltage button for testing DC Characteristic of Zinc Oxide Lightning Arrester.
It can be used as a Laser Power Supply.
Other occasion which need to use DC high voltage.
Model
Item | GDF-60/2 | GDF-120/2 | GDF-120/5 | GDF-200/2 | GDF-300/2/3 | GDF-
200/400/2 |
| Output Voltage | 60kV | 120kV | 120KV | 200kV | 300kV | 200 / 400kV |
| Output Current | 2mA | 2mA | 5mA | 2mA | 2 mA/3mA | 4 mA/ 2mA |
| Output Power | 120W | 240W | 600W | 400W | 600W/900W | 800W |
| HV unit size | dia.145×500(mm) | dia.145×800
(mm) | dia.140×800
(mm) | dia.145×1000(mm) | dia.145×1300(mm) | dia.145×1200(up,down) |
| Control unit size | 360×260×245(mm)(L×W×H) |
| Total weight | 10kg | 15kg | 17kg | 20kg | 25kg | 40kg |
| Ripple coefficient | <0.5% |
