1.1 Introduction

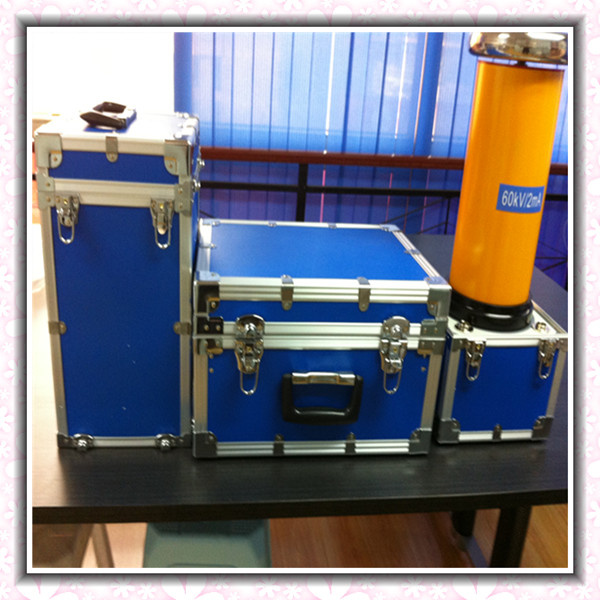

ZGF DC high voltage generator is DC high voltage power supply equipment. It have functions of switch on protection under 0 voltage, over voltage and over current protection. They are high stability and reliability. ZGF is easy to operate, small in size and light in weight.
1.2 Function
DC high voltage test for the power supply department, for example: DC HV withstand and leakage current test in power cables, the conductance current and 1mA reference voltage of magnetic blow out arrester and zinc oxide arrester test.
Using as power supply of laser, also electrostatic painting and twine and so on.
Other place required DC high voltage.
Model
Item |
ZGF-60/2
|
ZGF-120/2 |
ZGF-120/5 |
ZGF-200/2 |
ZGF-300/2/3 |
ZGF-
200/400/2 |
Output Voltage |
60kV |
120kV |
120KV |
200kV |
300kV |
200 / 400kV |
Output Current |
2mA |
2mA |
5mA |
2mA |
2 mA/3mA |
4 mA/ 2mA |
Output Power |
120W |
240W |
600W |
400W |
600W/900W |
800W |
Double voltage unit size |
145×500(mm) |
145×800
(mm) |
140×800
(mm) |
145×1000(mm) |
145×1300(m m) |
145×1200 |
Operating unit size |
360×260×245(mm)(L×W×H) |
Total weight |
10kg |
15kg |
17kg |
20kg |
25kg |
40kg |
Ripple coefficient |
less than 0.5% |
