Dry Air Generator for Transformer Maintanence (GF)
| Price: |
US $ 1/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |

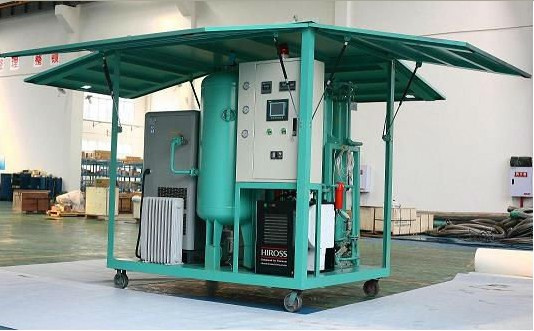

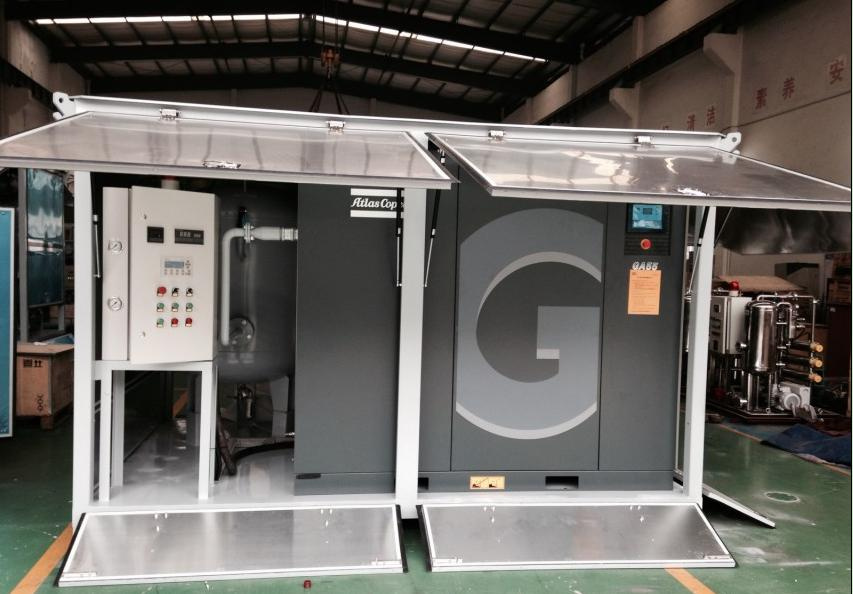

GF Series Dry Air Generator
Company Introduction:Chongqing Gold Mechanical & Electrical Equipment Co.,Ltd is one of the leading manufacturers of oil purifier in China. Currently manufactured products include ZJA series Double-Stage High-vacuum Oil Purifier, ZJB Series High Efficiency Vacuum Oil Purifier, ZJC-T Series Vacuum Purifier Specially for Turbine Oil,, ZJC-R Series Vacuum purifier specially for Lubricating Oil,ZJ Series Vacuum Pumping Set,GF Dry Air Generator etc. To guarantee the performance of our equipment, all the main components we use are imported from Europe countries, such as vacuum pump and fine filter. Introduction: GF Series Dry Air Generator is suitable for supplying dry air which keeps the power equipments' inner parts from moisture in the maintenance of transformer, reactor and other big power facilities. Maintenance staff will not be short of oxygen working inside the equipment. The Dry Air Compressor is more reliable, economic, convenient and safer than nitrogen. Therefore, it can shorten maintenance period and improve the efficiency of maintenance quality! Specifications:Specifications show in below table:
|
Item |
Parameters |
Unit |
GF-60 |
GF- 100 |
GF- 200 |
GF- 360 |
GF-480 |
|
Technical Parameter |
Flow |
M³/H |
60 |
100 |
200 |
360 |
480 |
|
Working Pressure |
Mpa |
0.6~0.8 |
|
Pressure Drop |
Mpa |
0.05 |
|
Noise |
dB(A) |
<70 |
|
Working Power |
KW |
380V-50Hz ,3 Phase 4 Wire |
|
Total Power |
KW |
17 |
17 |
25 |
48 |
58 |
|
Size |
Length |
cm |
230 |
230 |
230 |
320 |
320 |
|
Width |
cm |
170 |
170 |
170 |
225 |
225 |
|
Height |
cm |
235 |
235 |
235 |
240 |
240 |
|
Outlet pipe |
DN |
40/50 |
40/50 |
40/50 |
40/50 |
40/50 |
|
Weight |
Kg |
1200 |
1450 |
1600 |
1900 |
2200 |
|
After Treatment Index |
Air Outlet Pressure |
Mpa |
0.02~0.03 |
|
Dew Point |
Centigrade |
-50 ~ -70 |
|
Particle |
um |
0.01 |
|
Oil content in air outlet |
ppm |
0.01 |
| Prod Model: |
GF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dry Air Generator Features: |
More Reliable, Economic, Convenient and Safer Than |
| Function: |
Dry Air Generator |
| Flow Rate: |
60-480 Cubic Meter/H |
| Power: |
380V-50Hz, 3 Phase 4 Wire |
| Working Pressure: |
0.6~0.8 Mpa |
| Total Power: |
17-58 Kw |
| Price Level: |
Low |
| OEM Supply: |
Yes |
| Warranty Or Guarantee: |
1 Year |
| Service: |
Engineer Available to Service Overseas |
| Structure: |
Mobile |
| Mechanical Principle: |
Vacuum |
| Type: |
Return Filter |
