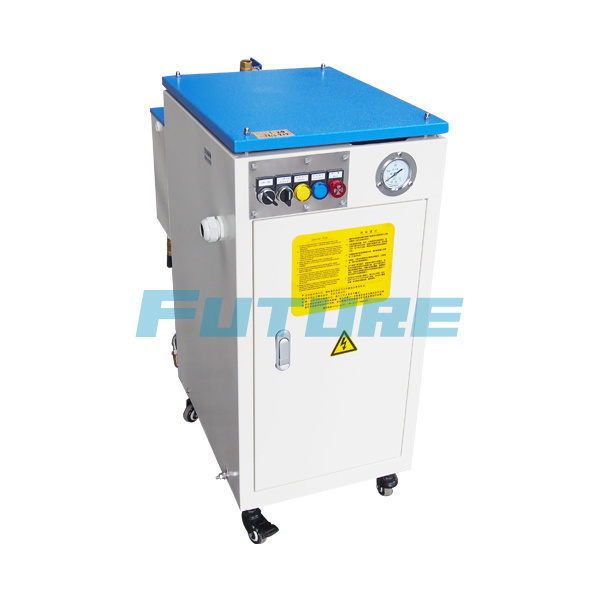

Small Electric Steam Generator for Food Industry:
I. Product Introduction:
"FUTURE" electric steam generator is run by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.
Advantages:
1. Small Input Power (3-60KW) with higher output (4-85Kg/h).
2. Use of high quality Nichrome Heating Element, it ensures long-term effective operation of the boiler.
3. Electric Steam Generator has a compact structure with fast heating speed, reaching to use pressure by several minutes.
4. Unique built-in steam-water separator solved a problem of steam with water which brought by similar products.
How to use? (After finish connecting piping)
A: Press "ON" button on control panel.
B: Check pressure gauge, when up to 0.4MPa(availble for adjustment), opening steam valve, and use the steam.
Safety assurance:
A: Pressure: By pressure controller when steam pressure reaches to the setting pressure, electric steam generator will shut off automatically.
B: With high water level, low level, super high level alarm protections.
Application:
In Building heat, chemical processing, health care, laundry, paper processing, driking, textile&dying, etc...
Model | LDR0.004 -0.7 | LDR0.009 -0.7 | LDR0.013 -0.7 | LDR0.017 -0.7 | LDR0.025 -0.7 | LDR0.035 -0.7 | LDR0.05 -0.7 | LDR0.065 -0.7 | LDR0.085-0.7 |
Item | Unit |
Rated Steam Capacity | Kg/h | 4 | 9 | 13 | 17 | 25 | 35 | 50 | 65 | 85 |
Rated Working Pressure | MPa | 0.7 (Adjustable) |
Saturated Steam Temperature | ° C | 171 (Adjustble) |
Input Power | KW | 3 | 6 | 9 | 12 | 18 | 24 | 36 | 48 | 60 |
Input Current | A | 6 | 9 | 14 | 18 | 27 | 41 | 55 | 73.8 | 92 |
Voltage | V | 220 / 380 (Available for adjustment ) |
Water Inlet | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
Steam Outlet | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 |
Blowdown Valve | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 |
Safety Valve | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 25 |
Dimension | mm | 680× 520× 850 | 750× 550× 920 | 850× 600× 1000 | 920× 700× 1200 | 960× 730× 1390 |
Weight | kg | 50 | 75 | 79 | 85 | 92 | 118 | 132 | 160 | 210 |
