Resistive and Reactive Load Bank for Generator Testing
1.Product Introduction

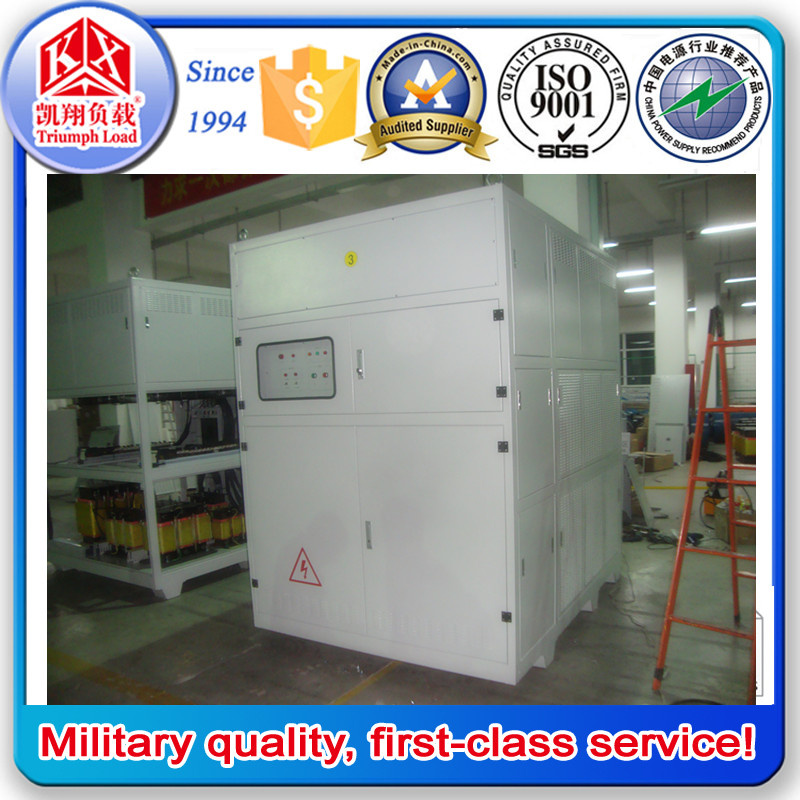

AC400-540K-RL Resistive and Reactive Load Bank for Generator Testing
It is composed of outdoor resistor-inductance AC load bank,data collection system,electric control module,thermal
module,control part etc.It can accurately detect Marine generator output power and load capacity,and assist shipyard
in acceptance of vessel,mooring test,sea trial,load test,static voltage characteristic test, speed characteristic test,overload
protection test,reverse power and reverse current protection test,and parallel operation test etc.
2.AC400-540K-RL Resistive and Reactive Load Bank for Generator Testing Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
3.AC400-540K-RL Resistive and Reactive Load Bank for Generator Testing Technical Specifications
Technical parameter |
AC400-540KVA-RL |
Rated voltage /Frequency | Three-phase three-wire 400V,50Hz/60Hz |
Rated Capacity | 540KVA |
Load Distribution | Active power:310KW,Reactive power:230Kvar |
Stepping Value | Resistive load: 1KW Inductive load: 1Kvar |
Resistor divider file | 10steps,1,2,2,5,10,20,20,50,50,100KW A phase unbalanced file:7steps,1,2,2,510,10,20KW |
Reactance file | 10steps,1,2,2,5,10,20,20,20,50,100KW |
Power factor | 0.8~1 |
Load Tolerance(each step) | ±5% |
Load Tolerance(overall) | ±3% |
Display Precision | 0.5 class |
Control Power Supply | External AC three-phase four-wire connection 380V/50Hz 4KW |
Wire Connection | Load power supply input--Copper bar (star coupling) Control power supply input--Connector-bar |
Insulation grade | F class |
Duty cycle | Continuous |
Cooling | Forced air cooling, Horizontal inlet air, Vertical cooling |
Transportation | Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Dimension | 1700 mm×2400mm×2600mm |
Weight | 1500Kg |
Operating Environment Parameter |
Ambient Temperature | -10ºC~+50ºC |
Relative Humidity | ≤95% |
Altitude | ≤2500 meters |
Atmospheric Pressure | 86~106kPa |
Main components brand |
Contactor | Schneider |
Circuit Breaker | Siemens |
Fuse | Delixi |
SCM | Infineon |
Alloy Resistor | Kaixiang |
Data Management Software | Kaixiang |
4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
