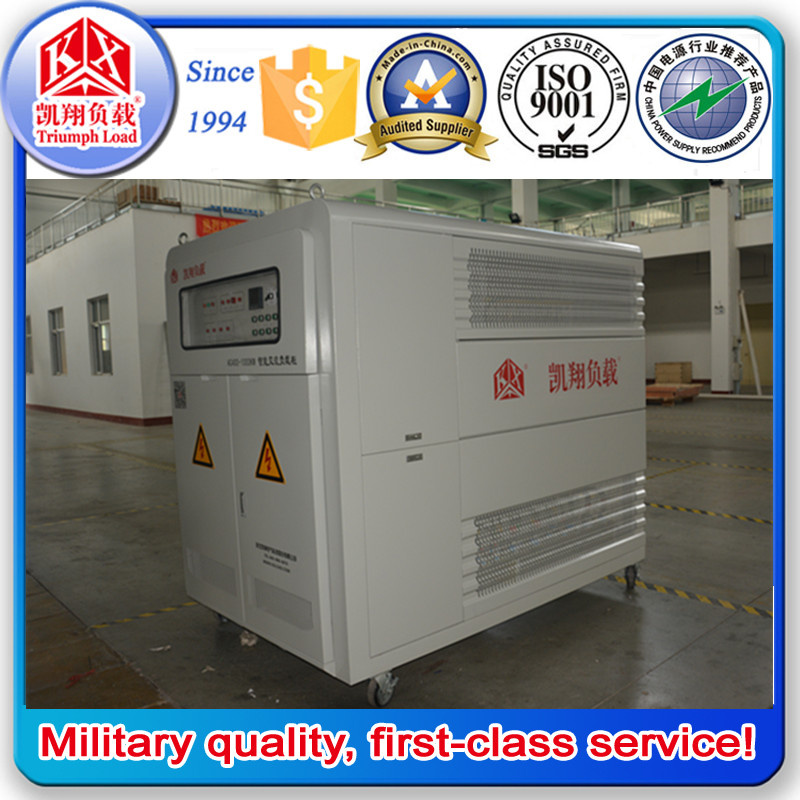

250KVA RL Loadbank, Generator Test Resistive and Inductive Load Bank
1.Product Introduction
250KVA RL Loadbank, Generator Test Resistive and Inductive Load Bank
Engine Dummy Load Bank for Generator Testing is composed of outdoor resistor-inductance AC load bank,data
collection system,electric control module,thermal module,control part etc.It can accurately detect Marine generator output power and load capacity,and assist shipyard in acceptance of vessel,mooring test,sea trial,load test,static voltage
characteristic test, speed characteristic test,overload protection test,reverse power and reverse current protection test,and
parallel operation test etc.
2.250KVA RL Loadbank, Generator Test Resistive and Inductive Load Bank Application
Large generator system testing in ocean engineering, drilling facilities,ship construction etc field;
Factory testing for generator, static voltage characteristic test, speed characteristic test;
Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test;
Assist shipyard in mooring test,sea trial test;
Assist with the acceptance of the vessel generator test;
Eliminate the carbon deposition of generator;
As the generator loading system;
Periodic running test for standby generator;
UPS inspection and maintenance;
Ship battery charging/discharging system testing;
The acceptance of new system and testing of servicing equipment.
3.250KVA RL Loadbank, Generator Test Resistive and Inductive Load Bank Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
4.250KVA RL Loadbank, Generator Test Resistive and Inductive Load Bank Technical Specifications
Technical parameter |
AC200-250KVA-RL |
Rated voltage /Frequency |
Three-phase four-wire 200V,400Hz |
Load Capacity |
250KVA |
Load Distribution |
Resistive power:200KW,Inductive power:170Kvar |
Resistor divider file |
1,2,2,5,10,20,20,50,100KW 9Steps |
Reactance file |
1,2,2,5,10,10,20,50,70Kvar 9Steps |
Power factor |
0.8(0.2-1) |
Load Tolerance(each step) |
±5% |
Load Tolerance(overall) |
±3% |
Display Precision |
0.5 class |
Control Power Supply |
External AC three phase connection 220V/50Hz |
Wire Connection |
Load power supply input--Copper bar (star coupling)
Control power supply input--Connector-bar |
Insulation Grade |
F class |
Protection Grade |
IP21 |
Duty Cycle |
Continuous |
Cooling |
Forced air cooling, Horizontal inlet air, Vertical cooling |
Transportation |
Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color |
Grey(RAL7035) |
Operating Environment Parameter |
Ambient Temperature |
-10ºC~+50ºC |
Relative Humidity |
≤95% |
Altitude |
≤1000 meters |
Atmospheric Pressure |
86~106kPa |
Main components brand |
Contactor |
Schneider |
Circuit Breaker |
Siemens |
Fuse |
Delixi |
SCM |
Infine** |
Alloy Resistor |
Kaixiang |
Data Management Software |
Kaixiang |
4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
