AC 400V 2000KW Genset Test Resistive Load Bank
1.Product Introduction
AC 400V 2000KW Genset Test Resistive Load Bank
The system can accurately test output power and load capacity with all kinds of generators. The system is consist of measuring control and load, including Automatic load bank, data acquisition system, automatic load/unload control system, cooling device, subcontrol and PC software etc.
This system is a electricity load test equipment is which independent research and development by Kaixiang. It is the perfect combination of dry type load module and automation measurement and control module. It can accurately test output power and load capacity with all kinds of generators. The system can connect with PC, realise intelligent control, auto-complete for all the electrical parameters of the generator set special test, while generating charts, graphs and test reports, divorce from full manual operation. Provides a scientific means of detection equipment for large power generators.

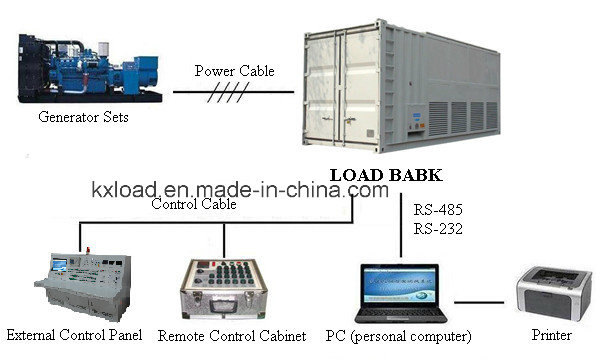

2.AC 400V 2000KW Genset Test Resistive Load Bank System Chart
3.AC 400V 2000KW Genset Test Resistive Load Bank Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
4.AC 400V 2000KW Genset Test Resistive Load Bank Technical Specifications
Technical Parameters |
Rating Voltage/Frequency | AC three pahse four wire 400V/50Hz |
Compatible voltag/Frequency | Resistive Load: 2000KW |
Load Step | Resistive Load:18 steps:1,2,2,5,10,10,20,50,100,200,200,200,200,200,200,200,200,200kW |
Power Factor | 1 |
Load Tolerance(each step) | ±5% |
Load Tolerance(overall) | ±3% |
Display Precision | 0.5 class |
Control Power Supply | AC380V/50Hz 3-phase |
Wire Connection | Load power supply input--Copper bar (star coupling) Control power supply input--Amphenol connector |
Communication Interface | RS485,RS232 |
Insulation grade | F class |
Protection Grade | IP65 |
Working Mode | Continous working |
Cooling | Forced air cooling, Horizontal inlet air,Upward cooling |
Transportation | Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Weight | About 6500kg 6058mm×2438mm×2591mm |
Operating Environment Parameter |
Ambient Temperature | -10ºC~+50ºC |
Relative Humidity | ≤95% |
Altitude | ≤2500 meters |
Atmospheric Pressure | 86~106kPa |

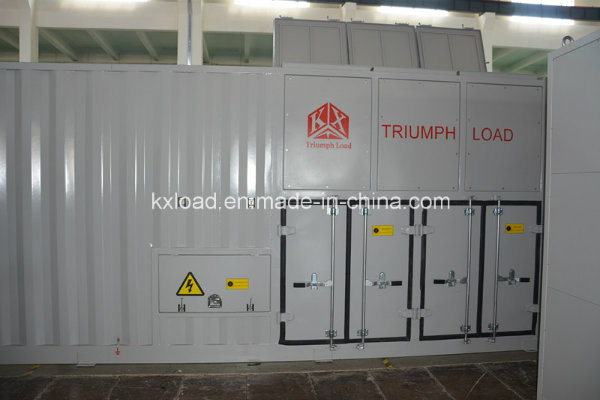

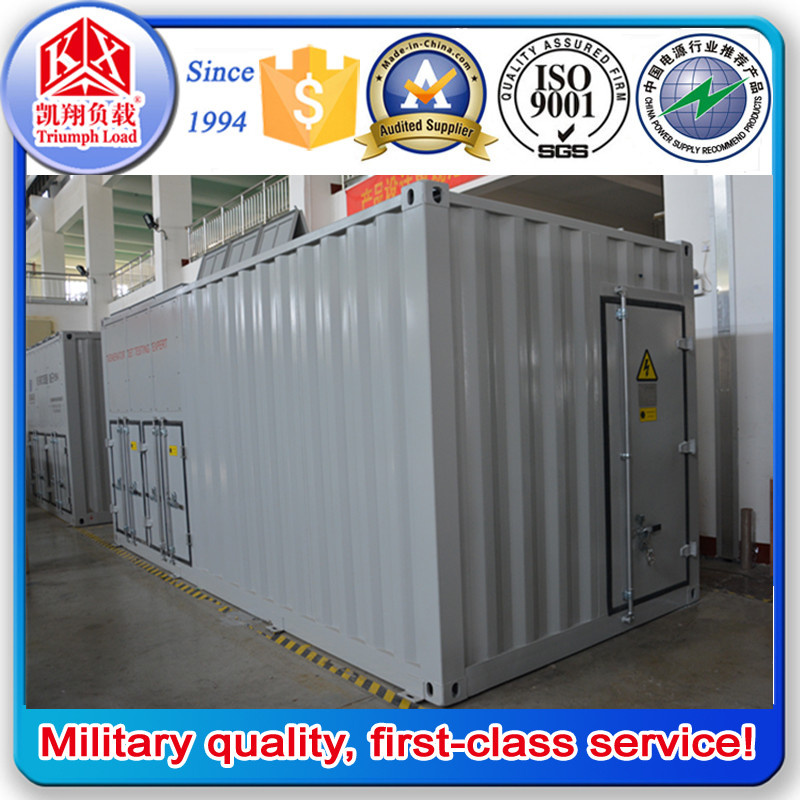

5.AC 400V 2000KW Genset Test Resistive Load Bank Overall Appearance

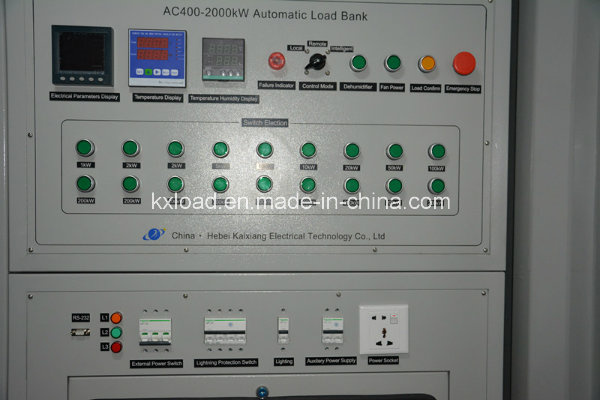

Control Panel
6.Why choosing us
- The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
- The most patent technology and scientific research awards gainer in China.
- Advanced detection method and strict inspection procedure build the qualified quality.
- Customized production meet the individual requirement.
- Prompt delivery & excellent after sales service.
- Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
- Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
- Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
