High Quality Load Bank for DG Sets Testing
1.Product Introduction

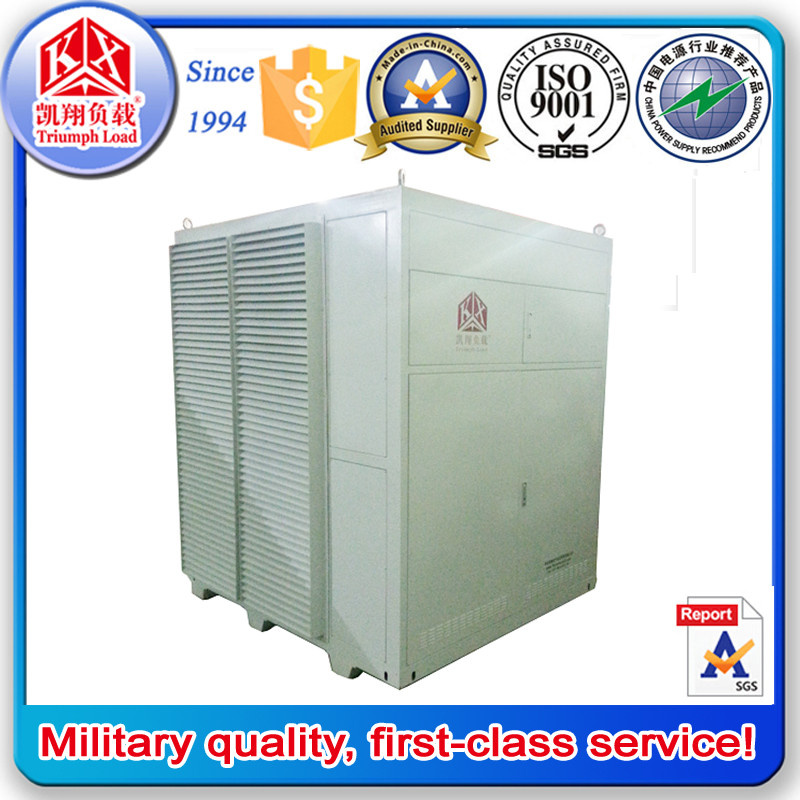

AC400-680KVA High Quality Load Bank for DG Sets Testing
High Quality Load Bank for DG Sets Testing is composed of outdoor resistor-inductance AC load bank,data collection
system,electric control module,thermal module,control part etc.It can accurately detect Marine generator output power
and load capacity,and assist shipyard in acceptance of vessel,mooring test,sea trial,load test,static voltage characteristic
test, speed characteristic test,overload protection test,reverse power and reverse current protection test,and parallel
operation test etc.
2.AC400-680KVA High Quality Load Bank for DG Sets Testing Application
Large generator system testing in ocean engineering, drilling facilities,ship construction etc field;
Factory testing for generator, static voltage characteristic test, speed characteristic test;
Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test;
Assist shipyard in mooring test,sea trial test;
Assist with the acceptance of the vessel generator test;
Eliminate the carbon deposition of generator;
As the generator loading system;
Periodic running test for standby generator;
UPS inspection and maintenance;
Ship battery charging/discharging system testing;
The acceptance of new system and testing of servicing equipment.
3.AC400-680KVA High Quality Load Bank for DG Sets Testing Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
4. AC400-680KVA High Quality Load Bank for DG Sets Testing Technical Specifications
Technical parameter |
AC400-680KVA-RL |
Rated voltage /Frequency |
Three-phase four-wire 400V,50/60Hz |
Apprent Power |
680KVA |
Load Distribution |
When 400V: Resistive load:550.5kW,Inductive load:640.5Kvar |
Resistor divider file |
0.5,1,2,2,5,10,10,20,50,50,100,100,200KW 13Steps |
Reactance file |
0.5,1,2,2,5,10,10,20,40,50,50,50,100,100,20Kvar 15Steps |
Power factor |
0.8(0.2-1) |
Load Tolerance(each step) |
±5% |
Load Tolerance(overall) |
±3% |
Display Precision |
0.5 class |
Control Power Supply |
External AC three phase connection 380V/50Hz |
Wire Connection |
Load power supply input--Copper bar (star coupling)
Control power supply input--Connector-bar |
Insulation Grade |
F class |
Protection Grade |
IP55 |
Duty Cycle |
Continuous |
Cooling |
Forced air cooling, Horizontal inlet air, Vertical cooling |
Transportation |
Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color |
Grey(RAL7035) |
Dimension |
1900mm*2100mm*2400mm(length*width*height) |
Weight | About 3000KG |
Operating Environment Parameter |
Ambient Temperature |
-10ºC~+50ºC |
Relative Humidity |
≤95% |
Altitude |
≤2500 meters |
Atmospheric Pressure |
86~106kPa |
Main components brand |
Contactor |
Schneider |
Circuit Breaker |
Siemens |
Fuse |
Delixi |
SCM |
Infineon |
Alloy Resistor |
Kaixiang |
Data Management Software |
Kaixiang |
5.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
