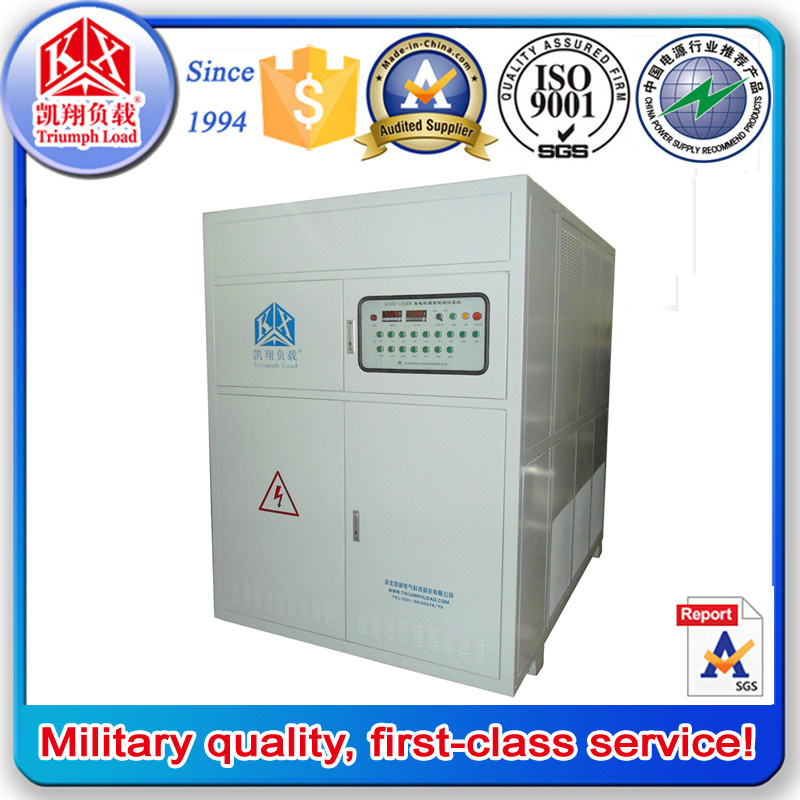

Resistive and Inductive Genset Testing Dummy Load Bank
1.Product Introduction
AC400-1250KVA Resistive and Inductive Genset Testing Dummy Load Bank
Genset Testing Dummy Load Bank is composed of outdoor resistor-inductance AC load bank,data collection
system,electric control module,thermal module,control part etc.It can accurately detect Marine generator output power
and load capacity,and assist shipyard in acceptance of vessel,mooring test,sea trial,load test,static voltage characteristic
test, speed characteristic test,overload protection test,reverse power and reverse current protection test,and parallel
operation test etc.
2. AC400-1250KVA Resistive and Inductive Genset Testing Dummy Load Bank Application
Large generator system testing in ocean engineering, drilling facilities,ship construction etc field
Factory testing for generator, static voltage characteristic test, speed characteristic test;
Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test
Assist shipyard in mooring test,sea trial test
Assist with the acceptance of the vessel generator test
Eliminate the carbon deposition of generator
As the generator loading system
Periodic running test for standby generator
UPS inspection and maintenance
Ship battery charging/discharging system testing
The acceptance of new system and testing of servicing equipment
3. AC400-1250KVA Resistive and Inductive Genset Testing Dummy Load Bank Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
4. AC400-1250KVA Genset Testing Dummy Load Bank Technical Specifications
Technical parameter |
AC400-1250KVA-RL |
Rated voltage /Frequency |
Three-phase three-wire 400V,50Hz;Three-phase four-wire 690V,50Hz |
Rated Capacity |
1250KVA |
Load Distribution |
When 400V: Resistive load:1100kW,Inductive load:825Kvar |
Adjustable Precision |
Resistive load: 50KW Inductive load: 50Kvar |
Resistor divider file |
0.05K,0.1K,0.1K,0.1K,0.2K,0.2K,0.2K,1K,2K,2K,5K,10K,10K,20K,50K,100K,
200K,200K,500KW |
Reactance file |
0.05K,0.1K,0.1K,0.1K,0.2K,0.2K,0.2K,1K,2K,2K,5K,5K,10K,10K,20K,20K,50K,100K,
200K,200K,200KW |
Power factor |
0.8-1 |
Load Tolerance(each step) |
±5% |
Load Tolerance(overall) |
±3% |
Display Precision |
0.5 class |
Control Power Supply |
External AC three phase connection 380V/50Hz |
Wire Connection |
Load power supply input--Copper bar (star coupling)
Control power supply input--Connector-bar |
Insulation grade |
F class |
Duty cycle |
Continuous |
Cooling |
Forced air cooling, Horizontal inlet air, Vertical cooling |
Transportation |
Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color |
Grey(RAL7035) |
Operating Environment Parameter |
Ambient Temperature |
-10ºC~+50ºC |
Relative Humidity |
≤95% |
Altitude |
≤2500 meters |
Atmospheric Pressure |
86~106kPa |
Main components brand |
Contactor |
Schneider |
Circuit Breaker |
Siemens |
Fuse |
Delixi |
SCM |
Infineon |
Alloy Resistor |
Kaixiang |
Data Management Software |
Kaixiang |
5.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
