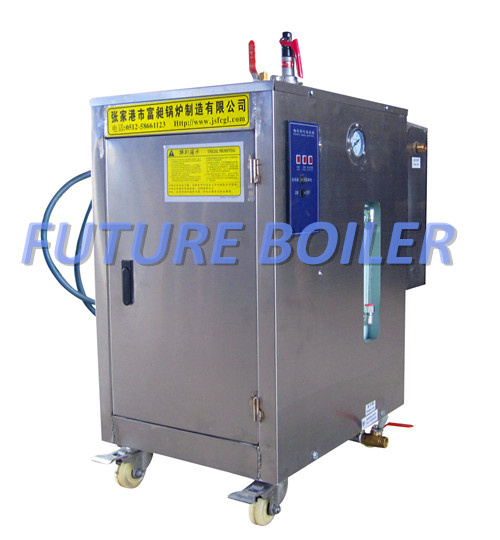

Portable Electric Steam Boiler for Laundry

Portable Electric Steam Boiler for Laundry
Price: US $ 1450-1500/Set
Trade Terms: FOB,CFR,EXW
Min Order: 1/Set
Pay Type: L/C,T/T,D/P
Portable Electric Steam Boiler for Laundry:

I. Product Introduction:
"FUTURE" Portable Electric Steam Boiler runs by power energy, no noise, no pollution. Using high quality heating elements, with a lower surface heat load and higher thermal efficiency. This product adopts cabinet design style, elegant appearance, compact internal structure and it's ideal for saving space.

II. Characteristics of Boiler:
1. Electric steam boilers are efficient, quiet, and safe for your process needs.
2. Vertical design requires minimal floor space.
3. The heating elements are easily accessible-permit quick removal for service or inspection.
4. No NOX(Nitrogen oxides) emission. Electric boilers have no wasted fuel going out the stack as electric boilers are environmentally friendly.
5. Completely wired control panel box located in front of the boiler.
6. All electrical components have demonstrated signs CE and equipped with world famous brands (SCHNEIDER, SIMENS, OMROM and LG) to ensure product safety and service life.
7.98% thermal efficient because the heating elements (CE tested) are totally immersed in water.
8. Power switch function to allow different steam using requirement.
9. Heating elements start one by one, reducing the electric loading.

Model

SLDR0.004-0.7

SLDR0.009-0.7

SLDR0.013-0.7

SLDR0.017-0.7

SLDR0.025-0.7

SLDR0.035-0.7

Item

Unit

Rated Steam Capacity

Kg/h

4

9

13

17

25

35

Rated Working Pressure

Bar / Psig

7 / 101

Saturated Steam Temperature

°C

171

Input Power

KW

3

6

9

12

18

24

Input Current

A

6

9

14

18

27

41

Voltage

V

220 / 380 (Available for adjustment )

Water Inlet

DN

15

15

15

15

15

15

Steam Outlet

DN

15

15

15

15

15

15

Blowdown Valve

DN

15

15

15

15

15

15


Safety Valve

DN

15

15

15

15

15

15

Dimension

mm

680×520×850

750×550×920

850×600×1000

Weight

kg

50

68

80

85

97

110
Prod Model: SLDR Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Portable Electric Steam Boiler: Portable Electric Steam Boiler for Laundry
Rated Current: 4.5-36A
Input Power: 3-24kw
Steam Capacity: 4-35kg/H
Lead Time: 5-15days/Set
Function: Steam Boilers
Fuel: Electric Heating
Pressure: Low Pressure
Drum Placement: Vertical Boiler
Media: Steam
Installation: Packaged Boiler
Manufacturing Level: B
Usage: Laundry
Burning Style: Electric Heating
Structure: Tubular
Water Circulation: Boiling Boiler
