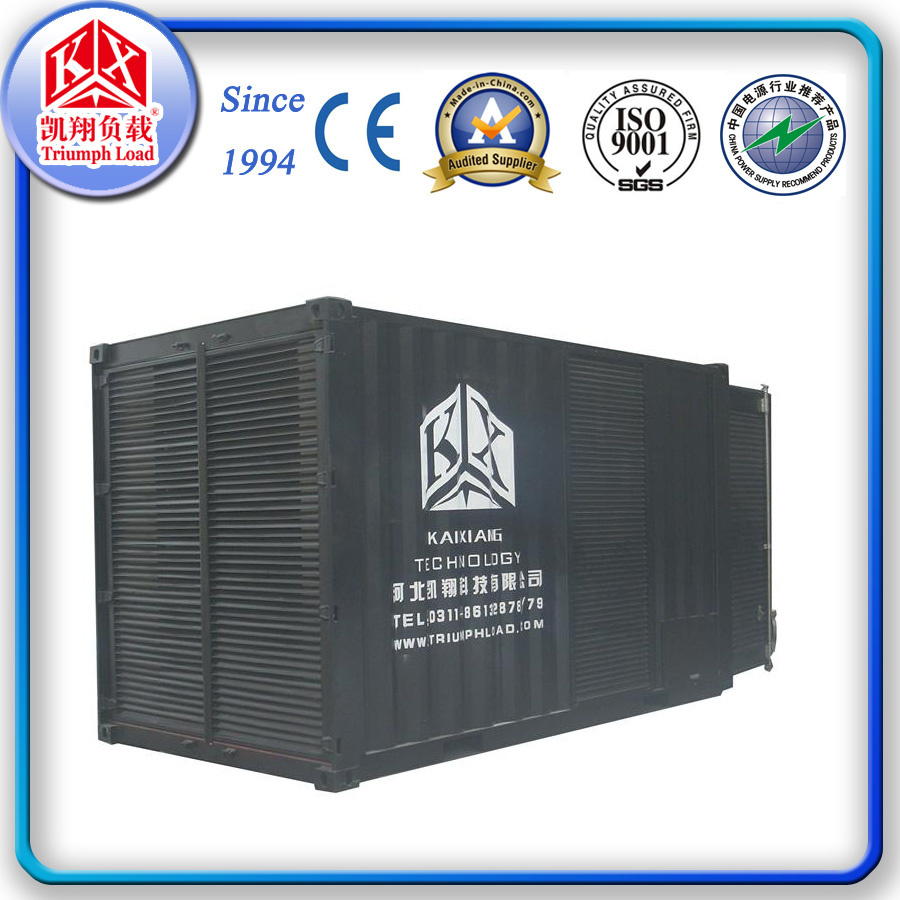

Resistive and Inductive load bank
Main Function:
1. Automatically load
2. Transient load/unload test
3. Harmonic analysis
4. Print technical testing report...
Part Parameters:
Dilivery Time: Feb 2012
Place: Shipyard in Tianjin, China
Rated Voltage/Frequency: 400V, 3 phase 4 wire /50Hz
The Other Voltage/Frequency: 440V, 3 phase 4 wire /60Hz
Total Power: 2000kVA.
Resistive Load: 1600kW
0.5kw~5kw using a ratary switch to realize step value is 0.5kw, other steps as follows: 5kW+10kW*3+20kW*3+50Wk*2+100kW*4+200kW*5, to realize 0.5kw~ 1600kw.
Inductive Load: 1200kVA
0.5kVA~5kVA using a ratary switch to realize step value is 0.5kVA, other steps as follows: 5k+10k*3+20k*3+50k*2+100k*4+200k*3, to realize 0.5kVA~ 1200kVA.
Power Supply: AC380/50Hz
Control Mode: Local Panel and PC
Working environment parameters
Operating Temperature: -10 ° C to +50 ° C
Relative humidity: ≤ 95%
Altitude: ≤ 1000 m
Minor dust without explosion and chemical corrosion environment.
Characterictics and Advantages:
1. It adopts special container paint for anticorrosive.
2. With industrial fan, horizontal inlet air, large air volume, low noise, strong heat dissipation.
3. It combinates power-components, control module and cooling system into whole, greatly simplifying the installation. Users can only connecting the cable when onsite installation.
4. Conform to variety standards at home and abroad...
Application Industry
Large power station test and delivery of Shipbuilding, ocean engineering and Oil drilling facilities
Ship-ower, shipyard and Classification Society mooring, sailing, load test, acceptance inspection;
More detail information, please contact us soon!
Item |
Quatity |
AC Load Bank |
1 |
Remote Controller |
1 |
Data Transmission Line |
1 |
Data Processing Software CD |
1 |
User Munual |
1 |
Testing Report |
1 |
Certification |
1 |
Warranty Card |
1 |
Packing List |
1 |
