We are
- Leader of water treatment business in China
- "Trusted Enterprise" issued by Government of Fujian Province
- "Well-Known Trademark of Fujian"
-Director unit of EMCA (Enterprise Manager Configuration Assistant) of Fujian Energy Conservation Association
-Industrial Enterprise with Reputation for Quality Promise in Fujian Province
-One of formal membership of Environment Protection Association of Fujian Province
We have
- Certificate of ISO9001/ISO14001
- More than 10 years experience
- Labs set up in specialized high-technology park
- More than 6 technical patents
-More than 3 branches are established nationwide
Product Description
electrolysis of salt water,drinking water treatment,water treatment plant,water purifier
Specifications
Size |
1280mm(L)*1980mm(W)*1260mm(H) |
Net Weight |
265KG |
Dissolving Pool Capacity |
200L |
Diluting Tank Capacity |
100L |
Storage Tank Capacity |
300L |
Chlorine Production |
300g/h |
Naclo Concentration |
0.5~0.8% |
Rated Voltage for machine |
220V (User defined) |
Rated Power |
4.9KW |
Rated Current for Electrolysis |
250A |
Rated Voltage for Electrolysis |
16V |
Electrode Size |
140mm(W)*460mm(L) |
Electrode Amount |
1 |
Salt cost |
<3KG(to produce 1KG available cholrine) |
Electric power cost |
<4KW(to produce 1KG available cholrine) |
Remark |
Automatic all-in-one type
|
What are the characteristics of sodium hypochlorite(NaClO)?
Sodium hypochlorite is a clear, slightly yellowish solution with a characteristic odor.
Sodium hypochlorite has a relative density of is 1,1 (5,5% watery solution).
As a bleaching water disinfectant for domestic use it usually contains 5% sodium hypochlorite.
We provide Sodium hypochlorine generator Water treatment can make NaClO 200g~100,000g per hour, Welcome to send us email for more details and price.
The Water disinfector machines are suitable for :
Swimming pool, water treatment factory, sewage water treatment, spa center, juice factory, bleaching company, washing company, hospital, etc.
salt electrolytic,electrolysis salt water,brine electrolysis,electrolytic,water treatment,sodium hypochlorite equipment,titanium anode,electrolysis salt water,electrolysis cell,waste water treatment,water treatment plant,water treatment machine,water treatment system,electrolytic cell,water disinfection,disinfection equipment,naclo,water treatment equipment
Product Description
Main reaction process: NaCl(salt)+ H2O(water) = NaClO(sodium hypochlorite) + H2↑ (hydrogen)

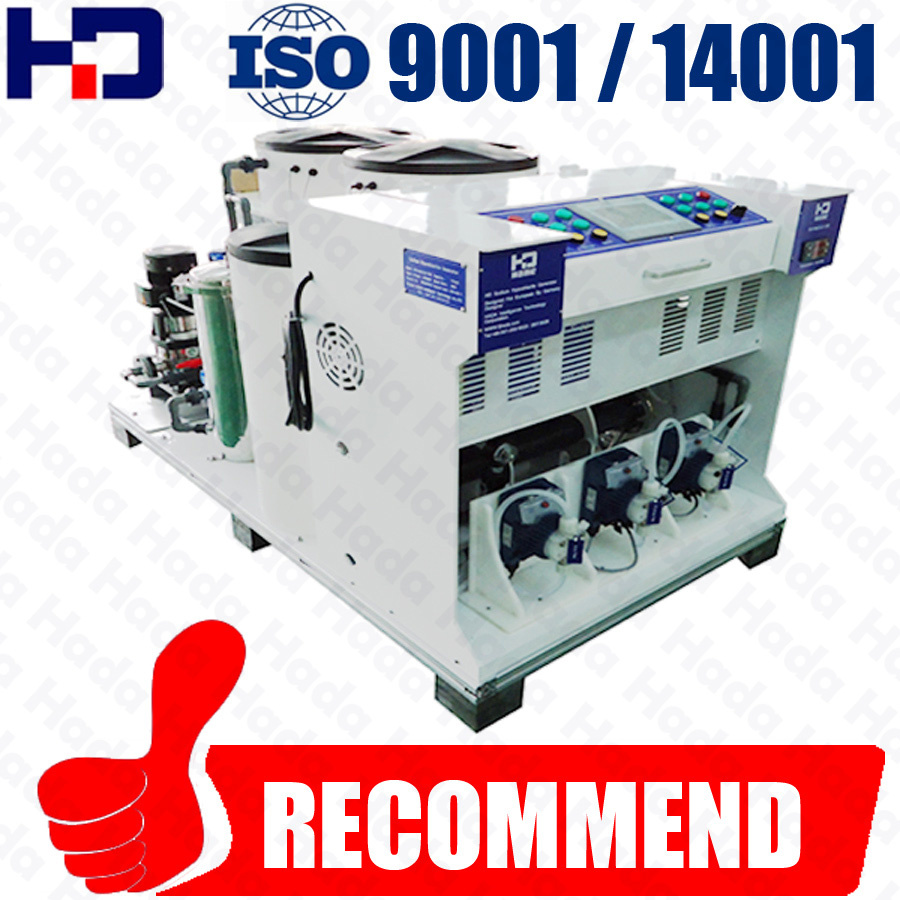

HD300 Sodium hypochlorite generator is a device to generate
sodium hypochlorite solution
Working principle: salt chlorination
Raw materials needed: water and salt
Functions: water bleaching, purification and disinfection, water treatment
The Principle of Sodium Hypochlorite Disinfection
99.99% of NaClO will be hydrolysised into Water and generate HCL and O
Main reaction process:NaClO + H2O = NaOH + HClO(Hypochlorous acid)
HCLO = HCL(Chlorine hydride) + O ( new ecological oxygen)
1. The oxidation of HClO (Hypochlorous acid): The molecule of Hypochlorous acid can penetrate into the bacteria with oxidation reaction and break the balance of glucose metabolism to kill the bacteria
2. O (new oxygen): The protein of virus will be degenerated and led to death by the strong oxidability of O (new oxygen)
3. The Chloridion: can disturb the metabolism and alter the osmotic pressure of bacteria and virus, lead them to death
Application
school, hotel, hospital for water disinfection
food company production process disinfection
industrial water circulating and bleaching
water station for purification and disinfection
water recycling plant for water treatment
sewage treatment plant for water treatment ., etc
Project
Water company waterworks disinfection ( large-scale water plant )
naclo generator
Model: HD-15K
Output chlorine amount: 15000g/h
Applied industry: recycled water disinfection, medicine wash of ultrafiltration system
Processed water amount: 50000t/h
Room size for equipment: 6000mm (length) x 12000mm (width)
Salt dissolving tank: 1000L, one for use and the other for preparation
Dilute salt tank: 1000L
Storage tank: 3000L, one for use and the other for preparation
Dissolved salt filter: PVDF filter material, filter fineness, 150um
Salt adding cycle: 5~7days
Raw material: 2.5%~3.0% dilute salt water
Salt consumption: 3.0 Kg/Kg
Electricity consumption: 3.8Kw/Kg
Control mode: change-over of local and remote control
Man-machine interface: 10.5 inches man-machine interface
Controller: SIMENS PLC
Tank material: food grade PE material
Operation mode: fully automatic operation and closed-loop chlorine dosing control system
Ultrafiltration drug washing dosing pump: Milton diaphragm metering pump, three for use and one for preparation
Recycled water dosing pump: Milton diaphragm metering pump, four for use and two for preparation
Food company production process disinfection( Budweiser Beer Co., Ltd in Nan Chang )
naclo generator
Specification: 500g/h sodium hypochlorite generator of electrolyzing salt water type
Industry: adding chlorine to disinfect total water of beer production water
Dosing mode: DN200 electromagnetic flowmeter, online residual chlorine sensor and frequency conversion dosing
Configuration list: salt dissolving tank, filter for dissolved salt, proportioner, dilute salt water tank, dilute salt water metering pump, sodium hypochlorite generator, storage tank, hydrogen exhaust fan, dosing metering pump (one use, one spare), DN200 electromagnetic flowmeter, DN250 pipe mixer, SIMENS PLC of S7-200 type (carrying 4 input and 2 output analog modules), SIMENS SMART man-machine interface, frequency converter, online residual chlorine instrument.
Water recycling plant project ( project of Universiade in shenzhen,2011)
naclo generator
Model: HD-5000
Output chlorine amount: 5000g/h (one for use and the other for preparation)
Application: reclaimed water disinfection, drug washing by ultrafilter system
Water treatment amount: 25000t/h
Room size for equipment: 6000mm(long)x1200mm(wide)
Salt dissolving tank: 1000L, one for use and the other for preparation
Dilute salt tank: 1000L, one for use and the other for preparation
Storage tank: 3000L, one for use and the other for preparation
Salt dissolving filter: PVDF filter material, filter fineness, 150um
Salt adding cycle: 5-7days
Raw material: 2.5%~3.0% dilute salt water
Salt consumption: 3.0Kg/Kg
Electricity consumption: 3.8Kw/Kg
Control mode: change-over of local and remote control
Main-machine interface: 10.5 inches SIMENS interface
Controller: SIMENS PLC
Tank material: food grade PE material
Operation mode: fully automatic operation and closed-loop chlorine dosing control system
Ultrafiltration drug washing dosing pump: Milton diaphragm metering pump, two for use and one for preparation
Recycled water dosing pump: Milton diaphragm metering pump, three for use and one for preparation
Main components
Electrolytic cell
1.UPVC resistance corrosion pipe, internal electrode plate
2.Between anode and cathode used PVDF material to isolation
3.Resistant to corrosion, high stability, long life characteristics
Electrode plate
1.HADA company patent technology, the cathode and the anode were all made of pure titanium TA1
2.Surface used nanotechnology, ruthenium, iridium oxide coated layer
3.25 times coated, coating thickness of 20um
4.Ensured the electrode has the long service life
Electrolysis power
1.Marine-grade high-frequency voltage constant current power supply
2.Power conversion efficiency>92%
3.Resist general moisture, dust ,and corrosive,low heat ,stable
Siemens PLC
1.Directly controlled the safe, reliable operation of the generator system
2.Alarmed and auto stopped the Siemens SmartSeries LC touch screen
3.Displayed the running state, through the touch screen to adjust and set all parameters.
Advantage by our machine
|
HADA series | Others |
| Chlorine concentration | 15% at max | 5~12% at max |
| Eletrolyzer |
Pure titanium ,coating by ruthenium and iridium
Gap between anode and cathode:
2~3mm, decrease scale formation generate
Low heat
25~40 times of coating, ensure Anode long life and high producing
|
Gap between anode and cathode: 0.5~0.9mm,incease scale formation generate
High heat
15~20 times of coating, less durable |
| Electrolysis power |
Power conversion efficiency>92%
low heat,
resist moisture,dust and corrosive
|
Power conversion efficiency at 75%~85% |
| Control system |
"Siemens" PLC and LCD touch screen
24 hours automatic control
online system which you can control and check status in office
|
Other PLC |
Cost for running |
To produce 1KG chlorine cost: <3KG salt and <4KW power
|
To produce 1KG chlorine cost: >3.5KG salt and >4.5KW power |
| Supporting |
Detail of every part of the machine
Whole set of design chart for project
Detail manual books
Technical support online and local
|
PI and Manual books |
Guarantee and after-sale service
1years guarantee for whole generator, 5years guarantee for Electrolytic cell
Technical support online and local
Extra spare parts provided
Quick response after sale service
CUSTOMER
Fujian Hada Intelligence Technology Co., Ltd. Was established in 2005 with a registered capital of 5.25 million US dollar, specialize in the research, development and manufacture of electrolysis sodium hypochlorite generator system, electrodialysis desalination system and other electrical drive water treatment systems.
For the past 10 years, we keep persevering in the technical elite team building (with Professor Shao Xiangwen from Fuzhou University and Professor Zhou Kanggen from Central South University), keep persevering in independent intellectual property rights, keep persevering in the underlying studies (Research of all types of electrode coating formulas etc. ), and currently holding a number of national patents. We are the only manufacturer of sodium hypochlorite generator in China who got the National High tech and Innovative Enterprise Certificate, the only manufacturer who got the "Health Permit" and "Wading License" of Fujian province in this field, as well as ISO9001: 2008 International Quality Management System Certification, ISO14001: 2004 Environmental Management System Certification, and Occupational Health and Safety Management System Certification.
"HADA", the company's trademark, got the prize of Well-known Trademarks in Fuzhou, and products are mainly applied in drinking water disinfection, waste water treatment, industrial waste water ammonia nitrogen oxidation treatment, sea water chlorination disinfection, ballast water disinfection system, food disinfection, heavy metal waste water purification, pharmaceutical industry and other fields of liquid cation purification process.
10 years' dedication, Hada has earned his fame by the advanced technology and reliable quality, even got the approval and recommendation from National Ministry of Housing and Urban-Rural Development and Water Conservancy Department. Due to the excellent performance, we've been involving in many major projects in most of the provinces in China, which includes water disinfection project for 2011 World University Games in Shenzhen, Foxconn Industrial Park water disinfection projects in Zhengzhou.
2014, HADA made a step out of China, set up Guangzhou Torui Import and Export Trading Co., Ltd. As branch for export affairs, began to expand overseas market, by now we have been providing products and services to following countries: Russia, Japan, Georgia, Uzbekistan, Kazakhstan, Mongolia, Turkey, Australia, Vietnam, Singapore, Indonesia, Malaysia, New Zealand, Iraq, Chile, Ethiopia, Pakistan, Taiwan and other 18 countries and regions.
Hada's Qualifications:
National High-tech Enterprise Certificate
Innovative Enterprise Certificate
Vice President of Fujian Food and Packaging Machinery Association
Director of Service Committee of Fujian Energy Saving Association
Member of Fujian Environmental Protection Industry Association
2013/2014 Quality, Credit and Commitment Industrial Enterprise ( Fujian)
Well-Know Trademark of Fuzhou City
ISO9001: 2008 International Quality Management System Certification
ISO14001: 2004 Environmental Management System Certification
Occupational Health and Safety Management System Certification
Health Permits for disinfection products manufacturer
Wading Permit for Sodium hypochlorite generator
Wading Permit for sodium hypochlorite solution
A number of national patents for the applications of sodium hypochlorite generator
