Offshore & Marine Water Treatment by Sodium Hypochlorite Generator

Offshore & Marine Water Treatment by Sodium Hypochlorite Generator
Price: US $ 62650/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Money Gram

INTRODUCTION OF SODIUM HYPOCHLORITE ( NaClO)------------------------------

H2O  (water) + NaCl (salt) ====>ELectrolysis====> NaClO (Sodium Hypochlorite) + H2

99.99% of NaClO will be hydrolysised into HCl:
NaClO + H2O = NaOH+ HCl (Hypochlorous acid) + O (new oxygen)

The 3 weapons to kill virus:
1. The oxydation of HCl (Hypochlorous acid): break the balance of glucose metabolism;
2. O (new oxygen): Its strong oxidability will consume the protein of virus,  make them lack of energy;
3. The Chloridion: disturb the metabolism of gen;

 It only asks for salt + water,Safe and high efficiency.
 Usually 1 KG active chlorite will cost: 2.9 kg salt + 4KW electricity
15%~20% lower than others!

And we can make the solution on concentration from 0.5%~15%!!!

It's perfect for water disinfection, water treatment system, water chemical treatment.

MACHINE INTRODUCTION----------------------------

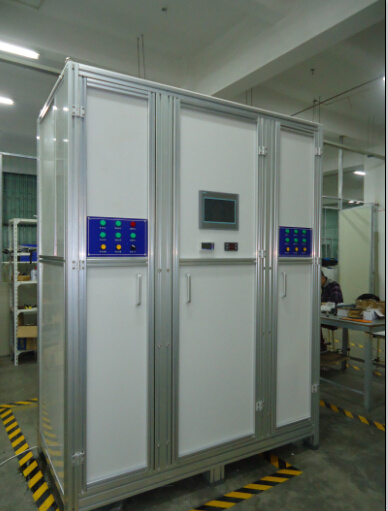

From 50g/h to 200kg/h active chlorine output, you will find the one suitable for your requirements, following photo is the water treatment system.


1) we dissolve salt in the dissolving tank into 25% concentration salt water;
 2) Pump through filter;
 3) Diluting 25% salt water into 3% salt water; ( If your machine near the sea, than sea water can be used instand of salt water)
 4) Pump into the machine for electrolysis;
 5) The sodium hypochlorite liquid come into storage tank;

if the dosing system is needed, then we can go on:
 6) We'll set up one water flow meter to get the flow data refer to system;
 7) Use dosing pump to send the liquid into the pipe mix up with the water in the pipe mixer;
 8) After that, there is another chlorine detective device, testing the concentration of chlorine in the water;
 9) The data from the second detective device will be received by PLC centre, and control centre will control the dosing pump according to the the data.

Followings are the specification of water treatment machine, you can choose the model according to the output chlorine:


Model No.
TypeActive Chlorine OutputHourly cost for 0.5%Hourly Cost for 1%~15%
SaltElectricitySaltElectricity
HDT-100All-in-one100g/h300 g/h400WN/AN/A
HDT-200All-in-one200g/h600 g/h800WN/AN/A
HDT-300All-in-one300g/h900 g/h1200WN/AN/A
HDT-400All-in-one400g/h1.2 kg/h1600WN/AN/A
HDT-500All-in-one500g/h1.5 kg/h2000WN/AN/A
HD-400Split-type400g/h1.2 kg/h1600WN/AN/A
HD-500Split-type500g/h1.5 kg/h2000WN/AN/A
HD-600Split-type600g/h1.8 kg/h2400WN/AN/A
HD-700Split-type700g/h2.1 kg/h2800WN/AN/A
HD-800Split-type800g/h2.4 kg/h3200WN/AN/A
HD-1KSplit-type1.0 kg/h3 kg/h4KWN/AN/A
HD-1.5KSplit-type1.5 kg/h4.5 kg/h6KWN/AN/A
HD-2KSplit-type2.0 kg/h6 kg/h8KWN/AN/A
HD-2.5KSplit-type2.5 kg/h7.5 kg/h10KWN/AN/A
HD-3KSplit-type3.0 kg/h9 kg/h12KW6 kg/h12KW
HD-4KSplit-type4.0 kg/h12 kg/h16KW8 kg/h16KW
HD-5KSplit-type5.0 kg/h15 kg/h20KW10 kg/h20KW
HD-6KSplit-type6.0 kg/h17 kg/h24KW12 kg/h24KW
HD-8KSplit-type8.0 kg/h23 kg/h32KW16 kg/h32KW
HD-10KSplit-type10 kg/h30 kg/h40KW20 kg/h40KW
HD-12KSplit-type12 kg/h36 kg/h46KW23 kg/h46KW
HD-15KSplit-type15 kg/h45 kg/h60KW29 kg/h60KW
HD-18KSplit-type18 kg/h54 kg/h72KW35 kg/h72KW
HD-20KSplit-type20 kg/h60 kg/h80KW39 kg/h80KW
HD-25KSplit-type25 kg/h75 kg/h100KW49 kg/h100KW
HD-30KSplit-type30 kg/h90 kg/h120KW59 kg/h120KW
HD-40KSplit-type40 kg/h120 kg/h160KW78 kg/h160KW
HD-50KSplit-type50 kg/h150 kg/h200KW98 kg/h200KW
HD-60KSplit-type60 kg/h180 kg/h240KW117 kg/h240KW



When buying a machine, I think we have to take it serious, it is not just buying a pair of shoes or jeans, which can be changed every month, but a machine, what's the most important thing for a machine?

Quality!!!!
What makes it outstanding quality?

The electrolysis: 2mm thickness titanium, 25TIMES plating, for those high concentration machine, even higher to 40 times plating!!!! Not normal plating, but  "noble metal oxide particles as ruthenium and iridium" (How many factories can spend so heavily for the same plating)!!!! And this is one of our technology patent!!!


The power: Ship-level power, with higher effeciency > 95%, other's only 80%, that means you can save 15% electricity with our machine, also it got excellent performance on the resistant of  corrosion, moisture, dust etc.


The control system: PLC system auto control, with Siemens touch screen, 24 hours auto control, also WIFI modula is optional, you can control online!!!


And the interface is programmed exactly same as the position of your devices. Here is the interface:


I can't upload many large photos, pls email me request detail data, photos, etc.


The running status: We can offer many of our clients' contacts, and welcome to contact them for checking the quality of our machine. Russia, Georgia, Uzbekistan, Austrilia, Mongalia, Chile, etc.


You are not willing to make the machine stop and check every several days, right?

Us too, that's why we DO NOT COMPROMISE ON QUALITY of machine, even say no to clients when they require to change material to lower the cost. That will break our reputation for years.  We haven't received any complaint from customers for so many years.

Frankly speaking, it's really a big cost for engineer to fly around worldwide offering after-sale service, that's one of the reason why we make such a good quality machine.

ABOUT US -----------------------------------------------------------------------------

Do not judge us as those new companies. We have been doing water agua treatment for more than 10 years, but we only focused on domestic market before, and did make great achievement in many projects. But we neglected the foreign trade.

2 years ago, our general manager realized that we have to step out of China, so we opened this branch to incharge of the whole foreign trade business.

There is few company that can compete with us, you can just ask them whether they've heard about us, I believe most of their boss will say "yes", if he or she reply "no", then he or she is lying to you.

We are:

1. Government business partner for so many years ( you know how strick rules for the qualityfrom the government);

2. We export to Japan, Mid-asia, Russia, AU, South-America etc (welcome to contact them for checking our quality);

3. Every machine is customized for different requirements ( sea water or salt water, with or without storage tank, dosing system, wifi system is needed or not);

4. Not only machine provider, but also providing you the chart for whole project ( we are not just providing only 1 type of machine, we are qualified to take the whole project of water treatment);


And we have been providing machines for :

1.Nanfang Water Group

2.Henan Water Investment Group

3.Chinese North Holding Water Group

4.China Water Group

5.Singapore Sembcorp Water Company

6.Budweiser Inbev Beer Company (Top 500 of the world)

7.Coca Cola Swire Co., Ltd.

8.Singapore APO shipyard

9.Pepsi Cola Beverage Co., Ltd.

etc...

Thank you all for your support for years



Latest news--------------------------------------------------------------------------------------------------------------

1. We just won the tender of Batumi water projce in Georgia, will sign contract  in november, 2014;

2. We are opening branch in Uzbekistan, now preparing the documents to government (November 2014);

3. We just finished the international water treatment exhibition in Shanghai (November 2014);

 One more thing-----------------------------------------------------------------------------------------------------


Every customer who confirm the order (above 20,000 USD) will get a training course in our factory for 2 days. ( Room and food are paid by us)

The first day: study the basic principle of water treatment ( for drinking water, sewage water, industry water, bleaching water etc.), as well as the system of our machine;

The second day: study how to asemble a machine in factory, visit government water project which is built by us;


-----------------------------------------------------------------------------------------------------------------------------------------------

Pls feel free to contact me if there is anything we can do for you, and welcome to visit our factory.

There are so many things I wanna share with you about our machines, but the photos I post here are limited by website, how I wish you can come, see and feel our machines by yourself.





Prod Model: HD-3K
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin: Fujian, China (Mainland)
Salt Cost: <3kg
Power Cost: <4kw
Concentration Of Liquid: 0.5%~15%
Pump: Cnp or Seko From Italy
Raw Material: Salt and Water
Electrode: 3mm Titanium
Control Center: Simens PLC
Operation Mode: Full Automatic
Terms Of Payment: 50% Deposit, Balance Before Shipment
Fujian Hada Intelligence Technology Co., Ltd. Was established in 2005 with a registered capital of 5.25 million US dollar, specialize in the research, development and manufacture of electrolysis sodium hypochlorite generator system, electrodialysis desalination system and other electrical drive water treatment systems.

For the past 10 years, we keep persevering in the technical elite team building (with Professor Shao Xiangwen from Fuzhou University and Professor Zhou Kanggen from Central South University), keep persevering in independent intellectual property rights, keep persevering in the underlying studies (Research of all types of electrode coating formulas etc. ), and currently holding a number of national patents. We are the only manufacturer of sodium hypochlorite generator in China who got the National High tech and Innovative Enterprise Certificate, the only manufacturer who got the "Health Permit" and "Wading License" of Fujian province in this field, as well as ISO9001: 2008 International Quality Management System Certification, ISO14001: 2004 Environmental Management System Certification, and Occupational Health and Safety Management System Certification.

"HADA", the company's trademark, got the prize of Well-known Trademarks in Fuzhou, and products are mainly applied in drinking water disinfection, waste water treatment, industrial waste water ammonia nitrogen oxidation treatment, sea water chlorination disinfection, ballast water disinfection system, food disinfection, heavy metal waste water purification, pharmaceutical industry and other fields of liquid cation purification process.

10 years' dedication, Hada has earned his fame by the advanced technology and reliable quality, even got the approval and recommendation from National Ministry of Housing and Urban-Rural Development and Water Conservancy Department. Due to the excellent performance, we've been involving in many major projects in most of the provinces in China, which includes water disinfection project for 2011 World University Games in Shenzhen, Foxconn Industrial Park water disinfection projects in Zhengzhou.

2014, HADA made a step out of China, set up Guangzhou Torui Import and Export Trading Co., Ltd. As branch for export affairs, began to expand overseas market, by now we have been providing products and services to following countries: Russia, Japan, Georgia, Uzbekistan, Kazakhstan, Mongolia, Turkey, Australia, Vietnam, Singapore, Indonesia, Malaysia, New Zealand, Iraq, Chile, Ethiopia, Pakistan, Taiwan and other 18 countries and regions.

Hada's Qualifications:

National High-tech Enterprise Certificate

Innovative Enterprise Certificate

Vice President of Fujian Food and Packaging Machinery Association

Director of Service Committee of Fujian Energy Saving Association

Member of Fujian Environmental Protection Industry Association

2013/2014 Quality, Credit and Commitment Industrial Enterprise ( Fujian)

Well-Know Trademark of Fuzhou City

ISO9001: 2008 International Quality Management System Certification

ISO14001: 2004 Environmental Management System Certification

Occupational Health and Safety Management System Certification

Health Permits for disinfection products manufacturer

Wading Permit for Sodium hypochlorite generator

Wading Permit for sodium hypochlorite solution

A number of national patents for the applications of sodium hypochlorite generator
