Specifications
Size | 1280mm(L)*1980mm(W)*1260mm(H) |
Net Weight | 285KG |
Dissolving Pool Capacity | 300L |
Diluting Tank Capacity | 200L |
Storage Tank Capacity | 500L |
Chlorine Production | 500g/h |
Naclo Concentration | 0.5~15% |
Rated Voltage for machine | 380V (User defined) |
Rated Power | 5.5KW |
Rated Current for Electrolysis | 250A |
Rated Voltage for Electrolysis | 16V |
Electrode Size | 140mm(W)*810mm(L) |
Electrode Amount | 1 |
Salt cost | <3KG(to produce 1KG available cholrine) |
Electric power cost | <4KW(to produce 1KG available cholrine) |
Remark | Automatic split type |
Product Description
Main reaction process: NaCl(salt)+ H2O(water) = NaClO(sodium hypochlorite) + H2↑ (hydrogen)

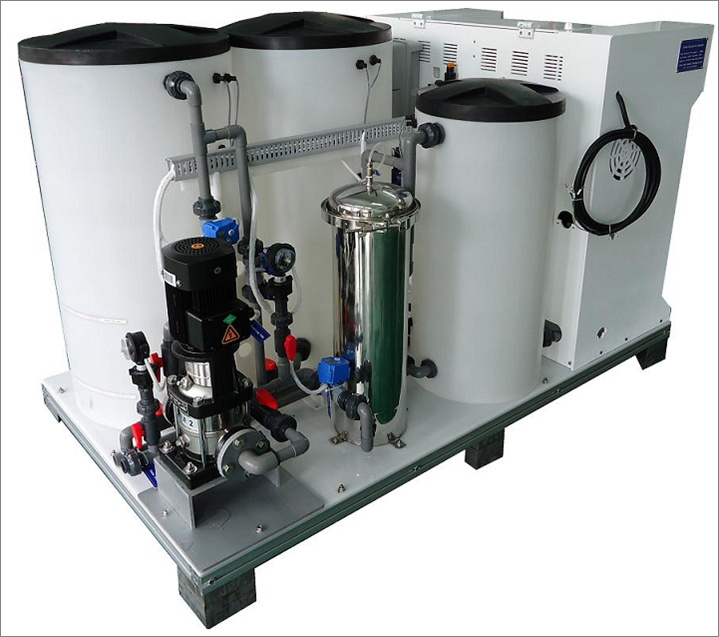

HD500 Sodium hypochlorite generator is a device to generate
sodium hypochlorite solution
Working principle: salt chlorination
Raw materials needed: water and salt
Functions: water bleaching, purification and disinfection, water treatment
The Principle of Sodium Hypochlorite Disinfection
99.99% of NaClO will be hydrolysised into Water and generate HCL and O
Main reaction process:NaClO + H2O = NaOH + HClO(Hypochlorous acid)
HCLO = HCL(Chlorine hydride) + O ( new ecological oxygen)
1. The oxidation of HClO (Hypochlorous acid): The molecule of Hypochlorous acid can penetrate into the bacteria with oxidation reaction and break the balance of glucose metabolism to kill the bacteria
2. O (new oxygen): The protein of virus will be degenerated and led to death by the strong oxidability of O (new oxygen)
3. The Chloridion: can disturb the metabolism and alter the osmotic pressure of bacteria and virus, lead them to death
Application
- school, hotel, hospital for water disinfection
- food company production process disinfection
- industrial water circulating and bleaching
- water station for purification and disinfection
- water recycling plant for water treatment
- sewage treatment plant for water treatment ., etc

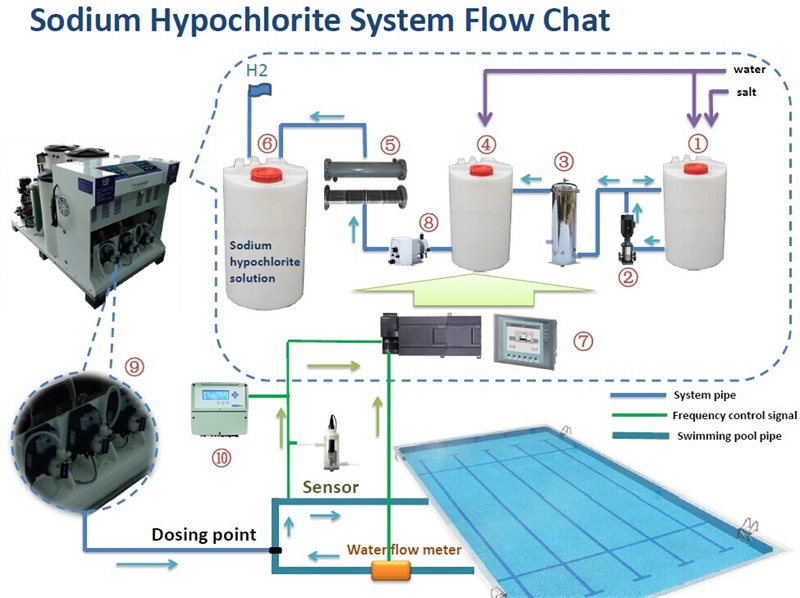

Automatic Sodium Hypochlorite Generator System Flow Chat

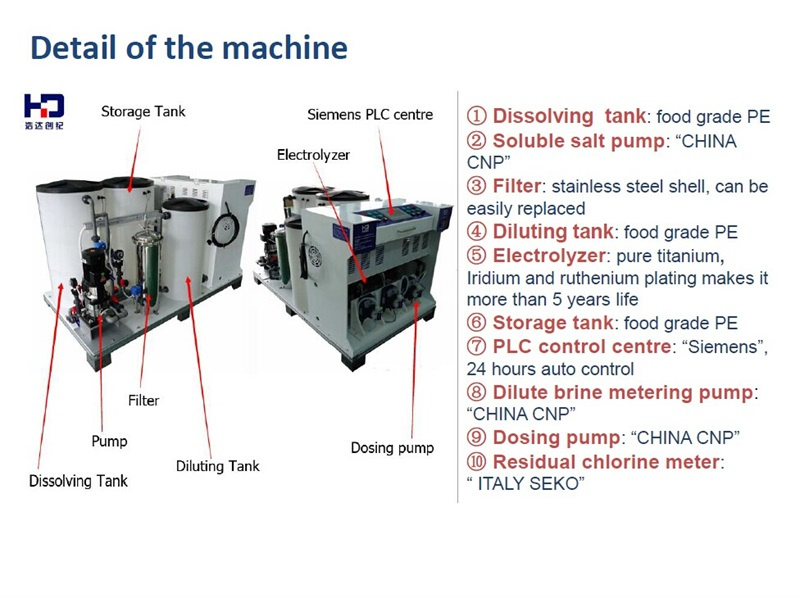

Main components
Electrolytic cell
1.UPVC resistance corrosion pipe, internal electrode plate
2.Between anode and cathode used PVDF material to isolation
3.Resistant to corrosion, high stability, long life characteristics
Electrode plate
1.HADA company patent technology, the cathode and the anode were all made of pure titanium TA1
2.Surface used nanotechnology, ruthenium, iridium oxide coated layer
3.25 times coated, coating thickness of 20um
4.Ensured the electrode has the long service life
Electrolysis power
1.Marine-grade high-frequency voltage constant current power supply
2.Power conversion efficiency>92%
3.Resist general moisture, dust ,and corrosive,low heat ,stable
Siemens PLC
1.Directly controlled the safe, reliable operation of the generator system
2.Alarmed and auto stopped the Siemens SmartSeries LC touch screen
3.Displayed the running state, through the touch screen to adjust and set all parameters.
Advantage by our machine
| HADA series | Others |
Chlorine concentration | 15% at max | 5~12% at max |
Eletrolyzer | Pure titanium ,coating by ruthenium and iridium Gap between anode and cathode: 2~3mm, decrease scale formation generate Low heat 25~40 times of coating, ensure Anode long life and high producing | Gap between anode and cathode: 0.5~0.9mm,incease scale formation generate High heat 15~20 times of coating, less durable |
Electrolysis power | Power conversion efficiency>92% low heat, resist moisture,dust and corrosive | Power conversion efficiency at 75%~85% |
Control system | "Siemens" PLC and LCD touch screen 24 hours automatic control online system which you can control and check status in office | Other PLC |
Cost for running | To produce 1KG chlorine cost: <3KG salt and <4KW power | To produce 1KG chlorine cost: >3.5KG salt and >4.5KW power |
Supporting | Detail of every part of the machine Whole set of design chart for project Detail manual books Technical support online and local | PI and Manual books |
Guarantee and after-sale service
1years guarantee for whole generator, 5years guarantee for Electrolytic cell
Technical support online and local
Extra spare parts provided
Quick response after sale service
Packing & Shipping
Outside packing: standard export wooden cases, Inner packing: stretch film
Delivery detail: T/T 50% in advance, balance before shipment
Company information
We are
Leader of water treatment in China
"Trusted Enterprise" issued by Government of Fujian Province
"Well-Known Trademark of Fujian"
Director unit of EMCA (Enterprise Manager Configuration Assistant) of Fujian Energy Conservation Association
Member of Environment Protection Association of Fujian Province
We have
Certificate of ISO9001/ISO14001
Labs set up in specialized high-tech zone
More than 6 technical patents
More than 3 branches in China
About us
More than 16years' experience
Chinese government business partner in many water projects
We provide water treatment to Geogia government, Water company in Tashkent, Fuel company in Japan and other countries

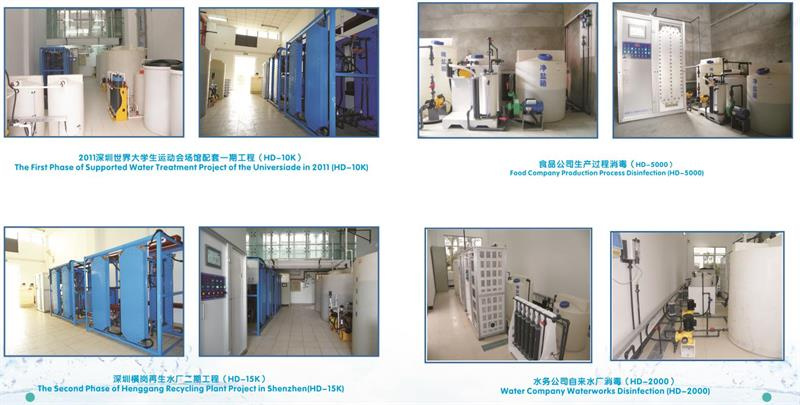

Our Projects
Model | Projects |
HD-10K×2 | 26th world University sports meeting 2011 |
HD-15K×2 | Shenzhen henggang water recycling plant |
HD-120 | Zhengzhou air port Water Company |
HD-200~1000 | Shandong changdao water company |
HD-1000×2 | Singapore SembCorp Water Company |
HD-1K | Guangdong minjie group |
HD-10K×2 | Daqing Oilfield longyi waterworks |
HD-20K×2 | Jiaozuo Wenxian east County water plant |
HD-15K×2 | Zhangzhou Development Water Company |
HD-350 | Uzbek Waterworks |
HD-4000 | Budweiser InBev Sedrin beer company |
HD-5K | Fujian mandy food company |
HD-300 | Zhangzhou huachang food company |
HD-5K~20K | Singapore shipyard |
HD-10K~15K | China shipyard |
HD-20K | Japanese Osaka |
HD-1500 | Fujian dragon Food Co. Ltd. |
HD-500 | Fuzhou xinfu food company |
HD-1000 | Xiamen Swire Coca-Cola Company |
HD-800 | Fuzhou Pepsi Cola Beverage Co., Ltd. |
HD-5K | Zhangzhou 175 Hospital |
Fujian Hada Intelligence Technology Co., Ltd. Was established in 2005 with a registered capital of 5.25 million US dollar, specialize in the research, development and manufacture of electrolysis sodium hypochlorite generator system, electrodialysis desalination system and other electrical drive water treatment systems.
For the past 10 years, we keep persevering in the technical elite team building (with Professor Shao Xiangwen from Fuzhou University and Professor Zhou Kanggen from Central South University), keep persevering in independent intellectual property rights, keep persevering in the underlying studies (Research of all types of electrode coating formulas etc. ), and currently holding a number of national patents. We are the only manufacturer of sodium hypochlorite generator in China who got the National High tech and Innovative Enterprise Certificate, the only manufacturer who got the "Health Permit" and "Wading License" of Fujian province in this field, as well as ISO9001: 2008 International Quality Management System Certification, ISO14001: 2004 Environmental Management System Certification, and Occupational Health and Safety Management System Certification.
"HADA", the company's trademark, got the prize of Well-known Trademarks in Fuzhou, and products are mainly applied in drinking water disinfection, waste water treatment, industrial waste water ammonia nitrogen oxidation treatment, sea water chlorination disinfection, ballast water disinfection system, food disinfection, heavy metal waste water purification, pharmaceutical industry and other fields of liquid cation purification process.
10 years' dedication, Hada has earned his fame by the advanced technology and reliable quality, even got the approval and recommendation from National Ministry of Housing and Urban-Rural Development and Water Conservancy Department. Due to the excellent performance, we've been involving in many major projects in most of the provinces in China, which includes water disinfection project for 2011 World University Games in Shenzhen, Foxconn Industrial Park water disinfection projects in Zhengzhou.
2014, HADA made a step out of China, set up Guangzhou Torui Import and Export Trading Co., Ltd. As branch for export affairs, began to expand overseas market, by now we have been providing products and services to following countries: Russia, Japan, Georgia, Uzbekistan, Kazakhstan, Mongolia, Turkey, Australia, Vietnam, Singapore, Indonesia, Malaysia, New Zealand, Iraq, Chile, Ethiopia, Pakistan, Taiwan and other 18 countries and regions.
Hada's Qualifications:
National High-tech Enterprise Certificate
Innovative Enterprise Certificate
Vice President of Fujian Food and Packaging Machinery Association
Director of Service Committee of Fujian Energy Saving Association
Member of Fujian Environmental Protection Industry Association
2013/2014 Quality, Credit and Commitment Industrial Enterprise ( Fujian)
Well-Know Trademark of Fuzhou City
ISO9001: 2008 International Quality Management System Certification
ISO14001: 2004 Environmental Management System Certification
Occupational Health and Safety Management System Certification
Health Permits for disinfection products manufacturer
Wading Permit for Sodium hypochlorite generator
Wading Permit for sodium hypochlorite solution
A number of national patents for the applications of sodium hypochlorite generator
