High Quality CP420BW with Multi-Heads Weigher General or High Speed VFFS Packaging Machine
Application:
Suitable to packaging the high accuracy and fragile granule , such as : puffy food , crispy rice , Potato Chips , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc.

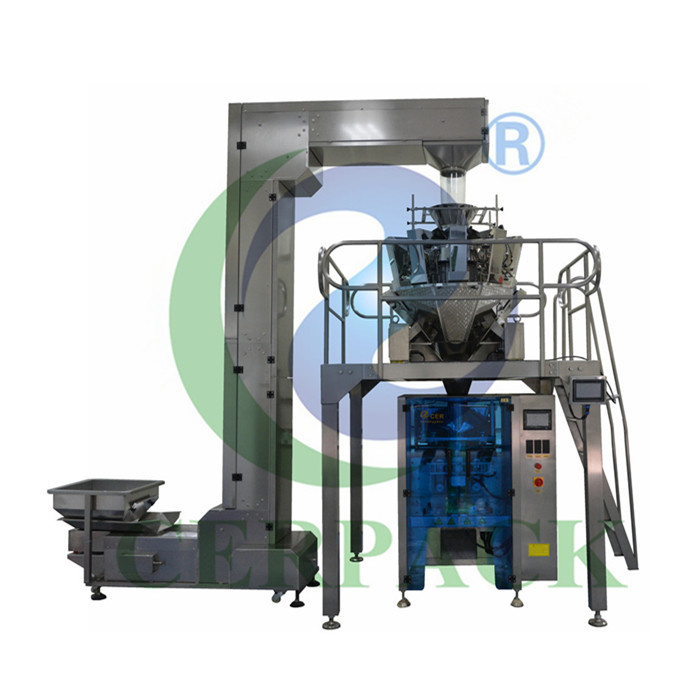

The above whole system does consist of the following:
1.Z bucket conveyor with vibrating feeder;
2.Multihead weigher;
3.Working platform;

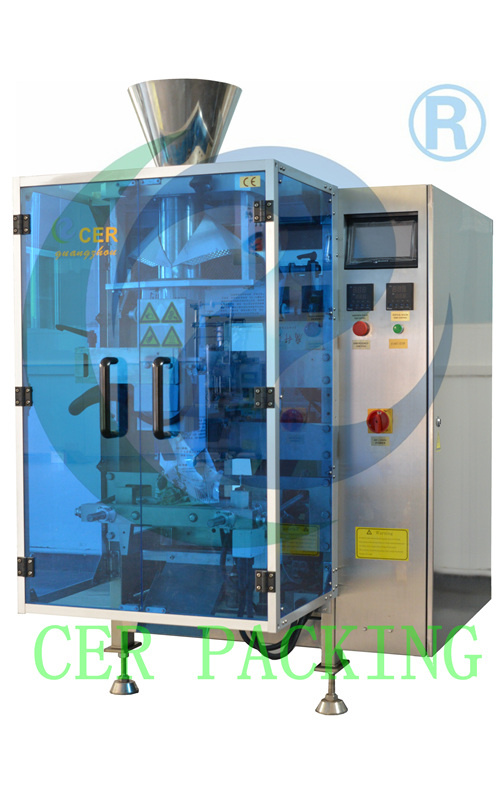

4.VFFS Packaging machine;
5.Output conveyor
6.Optional: Metal detector ,Check weigher,Rotary collecting table, Nitrogen Generator, Air compressor.
Specifications for CP420B:| Model | CP420B |
| Capacity | Max60 bags/min |
| Measuring range | Max100ml |
| Bag model | Pillow bag |
| Bag size | Generally,L 60-200mm W60-140mm |
| Film Width | Generally Max 300mm |
| Control | PLC + Chinese/English interface |
| Air consumption | 0.8Mps, 0.4m3/min |
| Power | 1Phase,50Hz ,AC 220V, /2.2KW |
| Customized | Twins machine, Punching functions |
| Dimension(LxWxH) | 1260x1015x1560mm |
| Weight | 450kg |
Application:
It is suitable for weighing of granule, slice, roll or irregular shape materials such as candy, seed, jelly, fries, coffee granule, peanut, puffy food, biscuit, chocolate, nut, yogurt pet food, frozen foods, etc. It is also suitable for weighing small hardware and plastic component.
Features:
Program recovery function can reduce operation failure;
All the hoppers can be opened make cleaning easy and quick;
The weigh hopper can be preset to open in order (staggered) to avoid blockages with puffy or problem products.
IP65 waterproof and dustproof design, which is easy to clean and maintain;
Multilanguage control panel, Spanish, Korea, German, French and Arabic, etc.
The function of measurement by counting pieces or components to satisfy your various requirements.

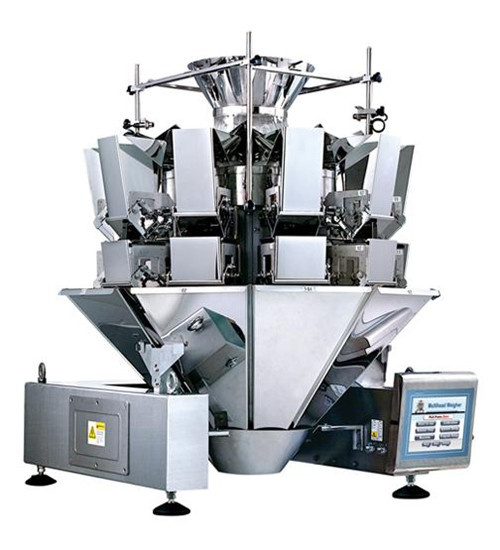

Specifications for 10 heades weigher:| Model | CP-W-10 |
| Max. Cap.(g) | 10-1000g |
| Weighing Accuracy(g) | ±0.5-2g |
| Max. Weighing Speed | 65PPM |
| Hopper Volume | 1600ml/2500ml |
| Control Panel | 7 "LCD Touch Screen |
| Options | Dimple Plate/Timing Hopper/Printer/Rotary Top Cone |
| Driving System | Step Motor |
| Power Requirements | 220V / 1000W / 50/60HZ / 10A |
| Packing Dimension(mm) | 1620(L)x1100(W)x1100(H) |
| Gross WGT | 420KG |
