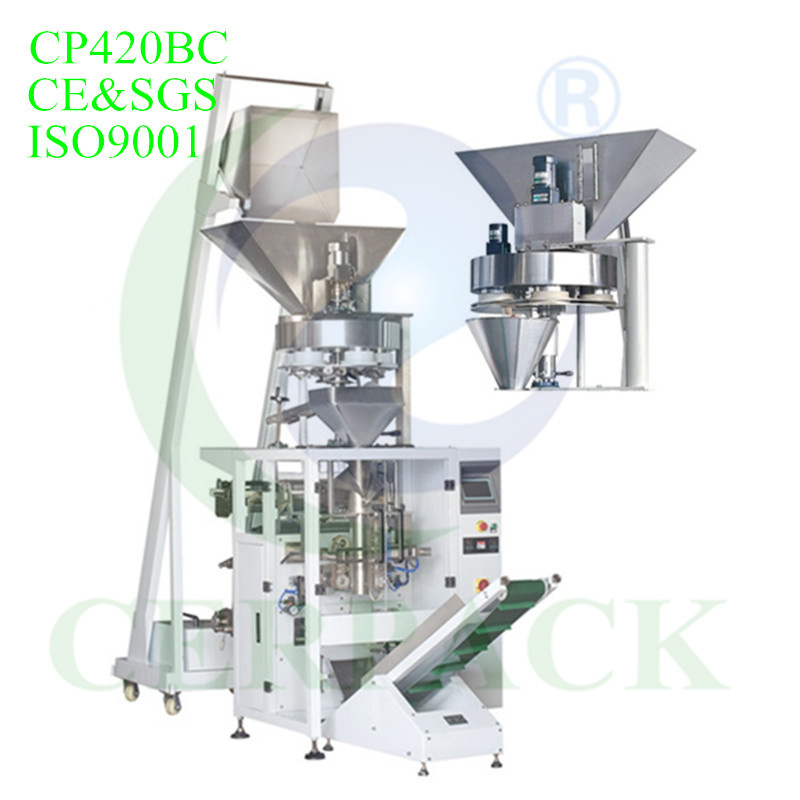

CER Volumetric Cups VFFS Packaging Line CP420BC
Features:
1. Mitsubishi PLC+ WEINVIEW HMI/Siemens PLC+HMI, Double Servo motor unit is available;
2. Double film-pulling: Servo motor unit& Double belt unit film transport;
3. Auto program set-up, Photo sensor tracking mark, quick change former assembly;
4. High-speed machine possible: About 60 bags per min;
5. Economic packaging solution for the users in the hope of reducing the cost.
Applications:
Suitable to packaging unbreakable granule, such as: Rice, sugar, oat meal, etc
The above whole system does consist of the following:
1. Single hopper elevator; ;
2. Volumetric cups;
3. VFFS Packaging machine;
4. Output conveyor;
5. Optional: Metal detector, Rotary collecting table, Nitrogen Generator, Air compressor.
| Model | CP420BC |
| Capacity | Max80 bags/min |
| Measuring range | Max100ml |
| Bag model | Pillow bag |
| Bag size | Generally,L 60-200mm W60-140mm |
| Film Width | Generally Max 300mm |
| Control | PLC + Chinese/English interface |
| Air consumption | 0.8Mps, 0.4m3/min |
| Power | 1Phase,50Hz ,AC 220V, /2.2KW |
| Customized | Twins machine, Punching functions |
| Dimension(LxWxH) | 1260x1015x1560mm |
| Weight | 450kg |
Guangzhou CER Packing Machinery Co., Ltd manufactures & provides the vertical packaging machine & solution in Guangzhou (15 minutes drive to Airport), China.
CER has a professional, experienced of R&D and technical support. We are well experienced in both the general packaging machine and the customized packaging solutions, and sell products with our own brand "CER " to all over the world. We are committed to providing high-quality products and prompt deliveries at competitive/reasonable prices.
The machine & line under the brand of CER are widely used in the package of food, medicine, hardware, daily chemicals, electronics, daily necessities, etc.
We are well experienced in both the general packaging machine and the customized packaging solutions, and sell products with our own brand "CER " to all over the world.
We are committed to providing high-quality products and prompt deliveries at competitive prices.
CER Packing Machinery will give you a new concept of China's merchandise: Not only Made in China, but even Created in China!
OUR MISSION:
To offer our customers a full set of Packaging Solution as their requirements at reasonable prices & on time, and we are working on it;
To supply our customers a human User Experience and a positive impression with our products, our stuff and our company, and we are working on it.
OUR GUARANTEE:
Shipment must be effected as per contract or Proforma Invoice;
Service or Support must be satisfying within 2 working days; If possible, our engineer will give you local training and solve your problem face-to-face.
OUR FAITH:
Mutual Benefit is the foundation of long, last, firm and healthy business partnership.
