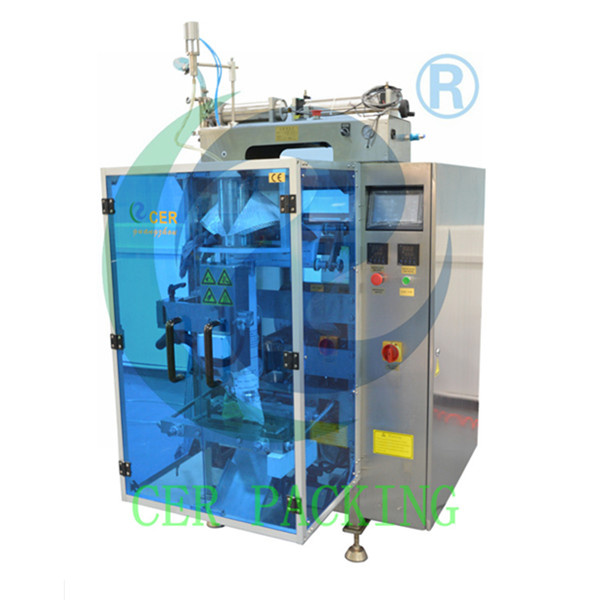

Automatic Pump VFFS Packaging production Line CP420BP
Please tell me:
1. What do you want to pack?
2. How many grams/mls per bag?
3. What's your bag size (Length and Width) ?
4. What's your bag type(your sample pictuer would helpful)?
Features:
1. Mitsubishi PLC+ WEINVIEW HMI/Siemens PLC+HMI;
2. Servo motor unit& Belt unit film transport(Double belt unit is also available);
3. Auto program set-up, Photo sensor tracking mark, quick change former assembly;
4. Both Pneumatic pump and Magnetic pump are available, based on the quality of the liquid & paste.
Applications:
Suitable to packaging liquid/paste in bag, such as mineral/pure water, alcohol, vinegar, drinks, sweet sauce, chili sauce, tomato paste, Chafing dish, etc
The above whole system dose consist of the following:
Single hopper elevator;
Volumetric cups;
VFFS Packaging machine;
Output conveyor
Optional: Metal detector, Check weigher, Rotary collecting table, Nitrogen Generator, Air compressor.
| Model | CP420BP |
| Capacity | Max80 bags/min |
| Measuring range | Max100ml |
| Bag model | Pillow bag |
| Bag size | Generally,L 60-200mm W60-140mm |
| Film Width | Generally Max 300mm |
| Control | PLC + Chinese/English interface |
| Air consumption | 0.8Mps, 0.4m3/min |
| Power | 1Phase,50Hz ,AC 220V, /2.2KW |
| Customized | Twins machine, Punching functions |
| Dimension(LxWxH) | 1260x1015x1560mm |
| Weight | 450kg |
