1.Introduction
Compact and Lightweight design that is ideal for moving from job site to job site or within your facility.
Portable Indoor Load Banks offers the most robust, high-capacity designs in the industry. It is setting the standard with intelligent operator controls, safety indication layouts, adjustable load step resolution, and lightweight designs. It is the perfect solution for regularly scheduled maintenance testing and commissioning of mission-critical standby emergency power systems.
2.Main features and advantages
- Power consumption components adopt special alloy resistor, high-temperature resisting, small thermal drift, safe and reliable. Running temperature is 1/3 of design temperature.
- Industrial heavy duty blower, horizontal inlet, vertical exhaust, low noise.
- Weather-proof structure, suitable for abominable environment.
- Multiple control mode: (1)Local panel control, (2)Remote control box/cabinet(3) Intelligent control(by PC software)
- Multiple protection function: overvoltage, overcurrent, overheat, low over blowing rate, blower overheat, blower phase sequence reverse protection, smoke alarm etc.
- Integrated design, easy to installation.

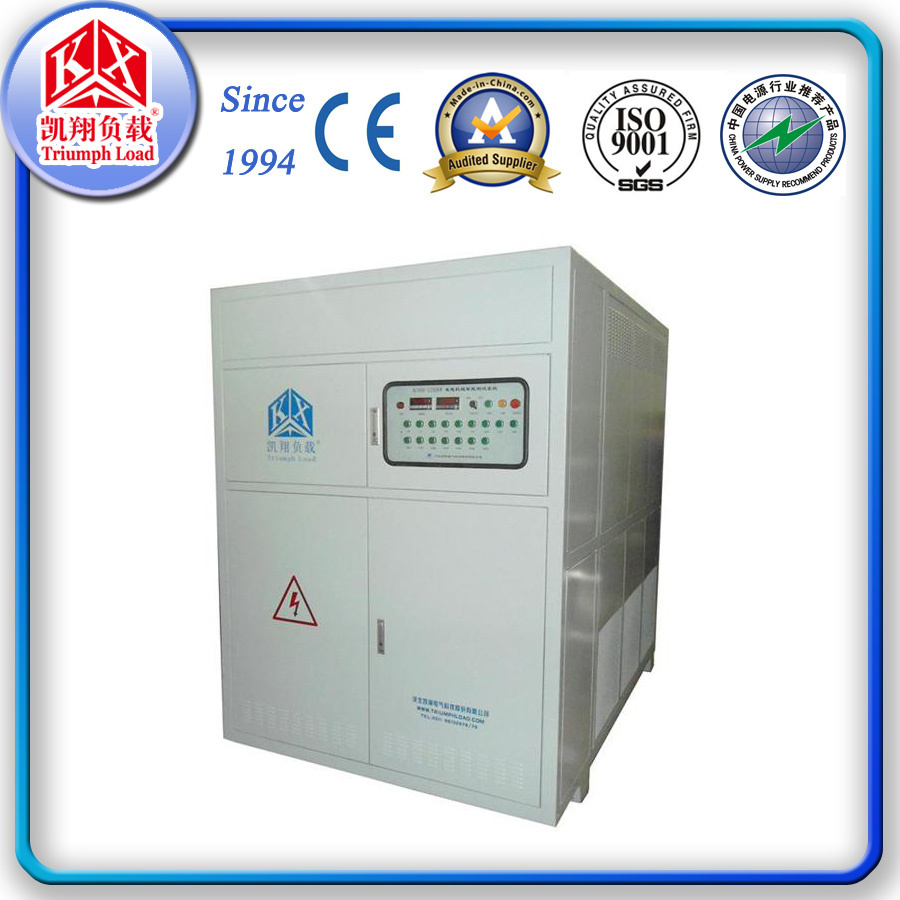

3.Technical Parameter of 500KW resistive dummy load bank
Technical parameter |
AC400-500kW |
Rated voltage /Frequency | AC 3phase 4wire 400V/50Hz |
Max load power | Resistor load: 510kW |
Load step | Resistive load: 11 steps, 1,2,2,5,10,20,20,50,100,100,200kW |
Power factor | 1 |
Load Tolerance(each step) | ±5% |
Load Tolerance(overall) | ±3% |
Display Precision | 0.5 class |
Control Power Supply | External AC220V/50Hz single phase |
Wire Connection | Load power supply input--Copper bar (star coupling) Control power supply input--Amphenol connector |
Insulation grade | F class |
Duty cycle | Continuous |
Cooling | Forced air cooling, Horizontal inlet air, Upward cooling |
Transportation | Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color | Grey(RAL7035) |
Dimension | About 1460 mm×1980mm×1800mm(length*width*height) |
Weight | About 1000kg |
Operating Environment Parameter |
Ambient Temperature | -10ºC~+50ºC |
Relative Humidity | ≤95% |
Altitude | ≤2500 meters |
Atmospheric Pressure | 86~106kPa |
|
| |
| |
| |
| |
| |
