| Price: | US $ 750-790/Set |
|---|---|
| Trade Terms: | FOB,CFR,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,D/P |
Model | LDR0.004-0.7 | LDR0.009-0.7 | LDR0.013-0.7 | LDR0.017-0.7 | LDR0.025-0.7 | LDR0.035-0.7 | |
Item | Unit | ||||||
Rated Steam Capacity | Kg/h | 4 | 9 | 13 | 17 | 25 | 35 |
Rated Working Pressure | Bar / Psig | 7 / 101 | |||||
Saturated Steam Temperature | ° C | 171 | |||||
Input Power | KW | 3 | 6 | 9 | 12 | 18 | 24 |
Input Current | A | 6 | 9 | 14 | 18 | 27 | 41 |
Voltage | V | 220 / 380 (Available for adjustment ) | |||||
Water Inlet | DN | 15 | 15 | 15 | 15 | 15 | 15 |
Steam Outlet | DN | 15 | 15 | 15 | 15 | 15 | 15 |
Blowdown Valve | DN | 15 | 15 | 15 | 15 | 15 | 15 |
Safety Valve | DN | 15 | 15 | 15 | 15 | 15 | 15 |
Dimension | mm | 680× 520× 850 | 750× 550× 920 | 850× 600× 1000 | |||
Weight | kg | 50 | 75 | 79 | 85 | 92 | 118 |
| Prod Model: | LDR Series |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |

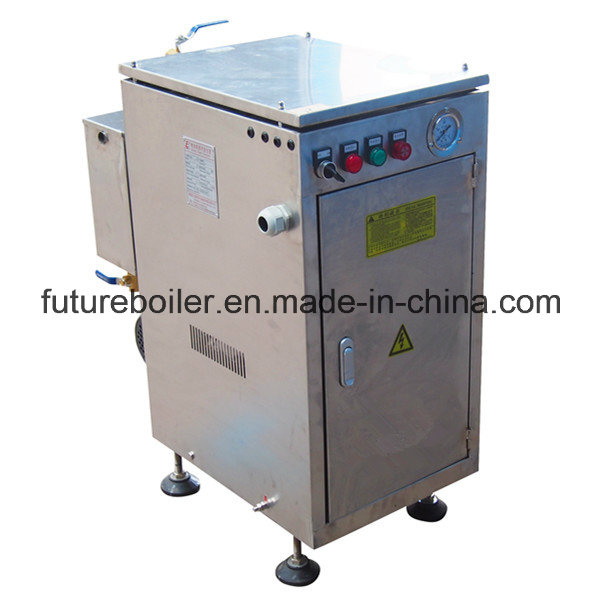

| Product Name: | Packaged Electric Steam Generator |
| Steam Capacity: | 4-35kg/H |
| Input Power: | 3-24kw |
| Working Pressure: | 101 Psig |
| Thermal Efficiency: | 98% |
| Power Supply: | 110-480V |
| Function: | Steam Boilers |
| Fuel: | Electric Heating |
| Installation: | Packaged Boiler |
| Media: | Steam |
| Drum Placement: | Vertical Boiler |
| Pressure: | Low Pressure |
| Manufacturing Level: | B |
| Structure: | Tubular |
| Water Circulation: | Boiling Boiler |
| Burning Style: | None |
| Usage: | Chemical,etc... |
