1.Product Introduction

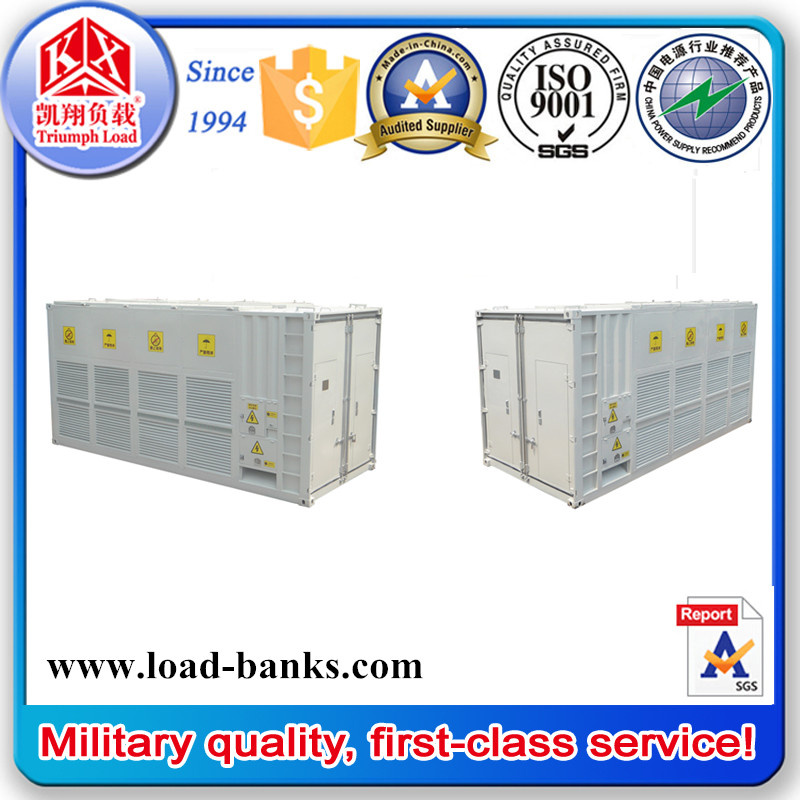

AC450V 5500KVA High Power Intelligent Load Bank for Generator Testing
High Power Intelligent Load Bank is composed of outdoor resistor-inductance AC load bank,data collection
system,electric control module,thermal module,control part etc.It can accurately detect Marine generator output power
and load capacity,and assist shipyard in acceptance of vessel,mooring test,sea trial,load test,static voltage characteristic
test, speed characteristic test,overload protection test,reverse power and reverse current protection test,and parallel
operation test etc.

2.AC450V 5500KVA High Power Intelligent Load Bank Application
Large generator system testing in ocean engineering, drilling facilities,ship construction etc field
Factory testing for generator, static voltage characteristic test, speed characteristic test;
Marine generator overload protection test,parallel operation test,reverse power and reverse current protection test
Assist shipyard in mooring test,sea trial test
Assist with the acceptance of the vessel generator test
Eliminate the carbon deposition of generator
As the generator loading system
Periodic running test for standby generator
UPS inspection and maintenance
Ship battery charging/discharging system testing
The acceptance of new system and testing of servicing equipment

3.AC450V-5500KVA High Power Intelligent Load Bank for Generator Testing Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)

4.AC450V-5500KVA High Power Intelligent Load Bank for Generator Testing Technical Specifications

Load a single set of system parameters
Rated voltage  and frequency	AC 3 phase 3 wire, 450V/690V/400K,50/60Hz
Rated Capacity	5500KVA
Load Resolution	When AC450V,resistive power 4400KW,reactive power 3300Kvar; When AC690V/400V,resistive power 3470KW,reactive power 2600Kvar.
Step Value	Resistive Load:1KW  Reactive Load:1Kvar
Resistor divider file	1KW,2KW,2KW,5KW,10KW,10KW,20KW,50KW,100KW,100KW,200KW*21 steps
Reactance file	1Kvar,2Kvar,2Kvar,5Kvar,10Kvar,10Kvar,20Kvar,50Kvar,100Kvar,100Kvar, 200Kvar*21 steps
Power Factor	0.8-1
Load accuracy (per file)	± 5%
Load accuracy (whole)	± 3%
Display accuracy	0.5
Control Power	External AC 3 phase 4 wire, 380V/50Hz  440V/60Hz
Wire Connection	Load bank input--Copper bar (star coupling "Y") Control power input--Connector-bar
Wiring port design	Allow sufficient space to ensure that users can easily access the load cables. External load penetrating openings in the cables after the cables have sufficient  waterproof capability, and sufficient mechanical strength.
Communication Interface	RS485, RS232
And machine methods	Computer software and machine
Insulation class	Class H
Protection class	IP55
Noise	3 m away from the outlet is less than 9 0 db
Way of Working	Continuous working
Cooling	Forced air cooling, horizontal inlet air, vertical exhaust cooling
Chassis construction	Container package, with up to the top of the ladder, with inlet and outlet  grilles and door protection
Enclosure	Container type,with a ladder, air inlet and outlet with mesh enclosure and protection door
Transportation	Hoisting, there are lifting lug in top of casing
Chassis Size	Approximately 6125mm × 2438 mm × 2891mm (L × W × H)
Weight	Approximately 23000kg
Work environment parameters
Workplace	Coastal areas, outdoor work
Operating Temperature	- 25 ºC ~ + 6 0 ºC (lower limit of the instrument's temperature-10 ºC)
Relative Humidity	≤ 95%
Altitude	≤ 2500m
Atmospheric pressure	86 ~ 106kPa

5.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
