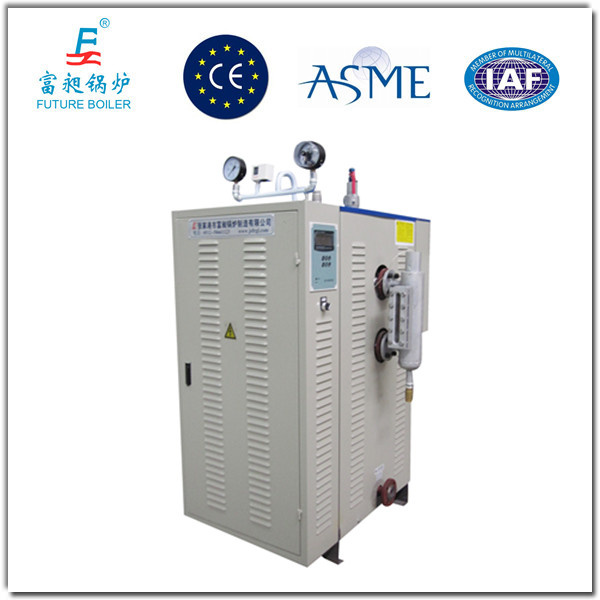

Electric Steam Boiler for Food Industry
Capacity: 0.1-0.5t/h
Pressure: 7-16bar
Steam Temp.: 171-204 Degree
Voltage: 220-600V
I. Product Introduction:
"FUTURE Boiler" offers a complete line of package electric steam boilers for heating and process applications that range from 72kW to 360 kW (7.2 BHP to 36 BHP).
FUTURE brand Electric Steam Boilers are extremely efficient because the heating elements are totally immersed in water and the pressure vessel is fully insulated, which results in minimal radiation losses. With the carefully calculated heat to steam ratio, operating pressures are achieved quickly with maximum efficiency.
II. Main Advantages:
1. Electric steam boilers are efficient, quiet, and safe for your process needs.
2. Vertical design requires minimal floor space.
3. The heating elements are easily accessible-permit quick removal for service or inspection.
4. No NOX(Nitrogen oxides) emission. Electric boilers have no wasted fuel going out the stack as electric boilers are environmentally friendly.
5. Completely wired control panel box located in front of the boiler.
6. All electrical components have demonstrated signs CE and equipped with world famous brands (SCHNEIDER, SIMENS, OMROM, and LG) to ensure product safety and service life.
7.98% thermal efficient because the heating elements (CE tested) are totally immersed in water.
8. Power switch function to allow different steam using requirement.
9. Heating elements start one by one, reducing the electric loading.
III. Technical Parameters:
|
Model |
LDR0.1-0.8 |
LDR0.15-0.8 |
LDR0.2-0.8 |
LDR0.25-0.8 |
LDR0.3-0.8 |
LDR0.4-0.8 |
LDR0.5-0.8 |
|
Item |
Unit |
|
Rated Steam Capacity |
Kg/h |
100 |
150 |
200 |
250 |
300 |
400 |
500 |
|
Rated Working Pressure |
MPa |
0.8 (1.0, 1.25, 1.6) |
|
Saturated Steam Temperature |
°C |
175 (184, 194, 204) |
|
Input Power |
KW |
72 |
108 |
144 |
180 |
216 |
288 |
360 |
|
Input Current |
A |
113 |
169.2 |
235 |
270 |
329 |
432 |
547 |
|
Voltage |
V/Hz |
380,50 (Made to order) |
|
Water Inlet |
DN |
15 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Steam Outlet |
DN |
25 |
25 |
32 |
32 |
32 |
32 |
40 |
|
Blowdown Valve |
DN |
25 |
25 |
32 |
32 |
32 |
32 |
32 |
|
Safety Valve |
DN |
25 |
25 |
25 |
32 |
32 |
32 |
40 |
|
Dimension |
mm |
1020×1230
×1750 |
1250×1400×1870 |
1320×1510×2100 |
1380×1600×2360 |
|
Weight |
Kg |
280 |
320 |
410 |
650 |
770 |
850 |
960 |
