Generator Testing Load Bank With Remote Control
1.Product Introduction
Generator Testing Load Bank With Remote Control
It is composed of outdoor resistor-inductance AC load bank,data collection
system,electric control module,thermal module,control part etc.It can accurately detect Marine generator output power
and load capacity,and assist shipyard in acceptance of vessel,mooring test,sea trial,load test,static voltage characteristic
test, speed characteristic test,overload protection test,reverse power and reverse current protection test,and parallel
operation test etc.
2.Generator Testing Load Bank With Remote Control System Chart
3.Generator Testing Load Bank With Remote Control Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
4.Generator Testing Load Bank With Remote Control Technical Specifications
Technical parameter | |
AC400-550KVA-RL | |
Rated voltage /Frequency | AC Three-phase four-wire 400V,50Hz;AC three-phase four-wire 400V,400Hz |
Rated Capacity | 550KVA |
Load Distribution | Resistive load:220KW,Inductive load:165Kvar*2 |
Stepping | Resistive load: 1, 2, 2, 5, 10, 10, 20, 20, 50, 100KW, 10Steps Inductive load: 1, 2, 2, 5, 5, 10, 20, 20, 50, 50Kvar, 10steps |
Power factor | 1/0.8 |
Load Tolerance(each step) | ±5% |
Load Tolerance(overall) | ±3% |
Display Precision | 0.5 class |
Control Power Supply | External AC three phase connection 380V/50Hz |
Wire Connection | Load power supply input--Copper bar (star coupling) Control power supply input--Connector-bar |
Insulation grade | F class |
Duty cycle | Continuous |
Cooling | Forced air cooling, Horizontal inlet air, Vertical cooling |
Transportation | Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color | Grey(RAL7035) |
Operating Environment Parameter | |
Ambient Temperature | -10ºC~+50ºC |
Relative Humidity | ≤95% |
Altitude | ≤2500 meters |
Atmospheric Pressure | 86~106kPa |
Main components brand | |
Contactor | Schneider |
Circuit Breaker | Siemens |
Fuse | Delixi |
SCM | Infineon |
Alloy Resistor | Kaixiang |
Data Management Software | Kaixiang |

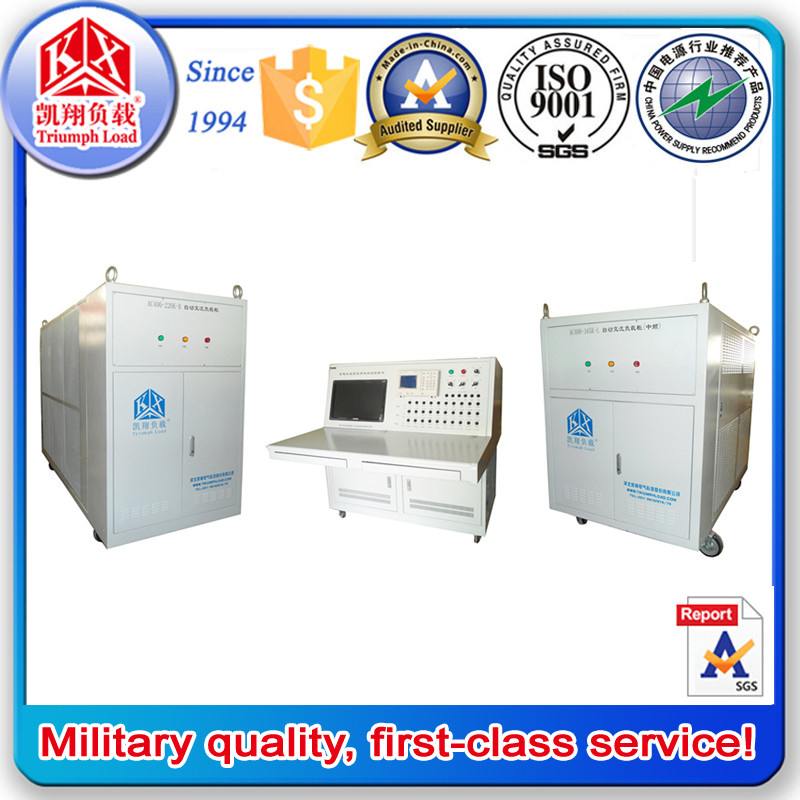

5.Generator Testing Load Bank With Remote Control Product Display

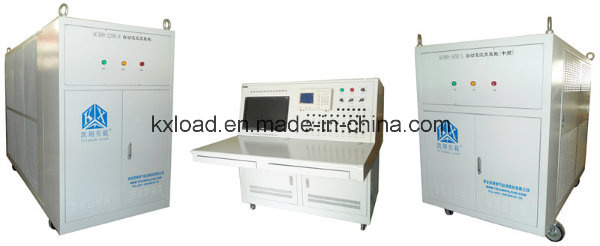

Overall Apperance

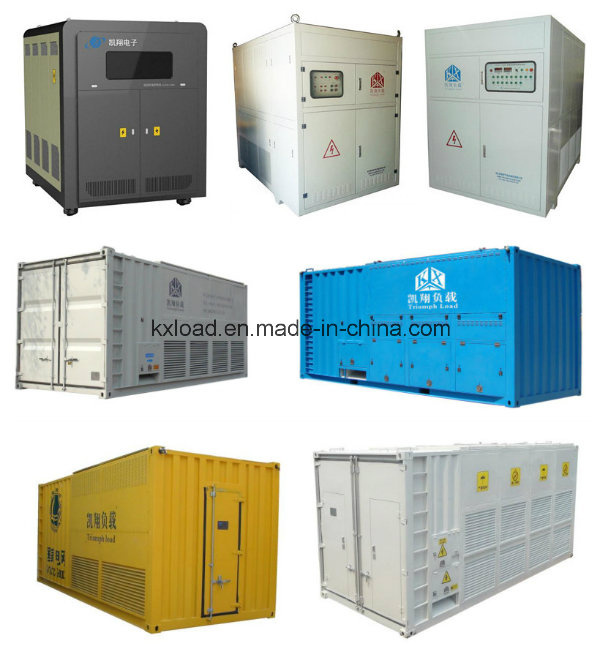

6.More Pictures of Our Load Banks
| Prod Model: | AC400-550KVA-RL |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: | AC400V |
| Frequency: | 50Hz/400Hz |
| Rated Capacity: | 550kVA |
| Resistive Load: | 220kw |
| Inductive Load: | 165kvar*2 |
| Insulation Grade: | F Class |
