Compact Electric Heating Steam Boiler
Price: |
US $ 7880-7980/Set |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Set |
Pay Type: |
L/C,T/T,D/P |

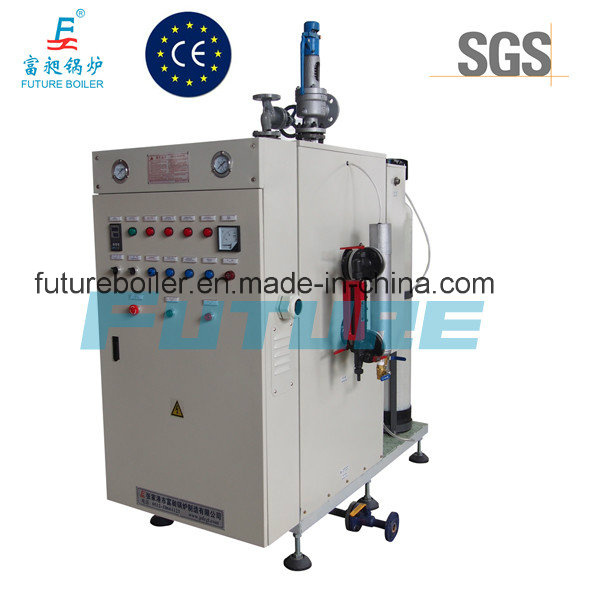

Compact Electric Heating Steam Boiler
1)Steam Capacity:100-500Kg/h
2)Input Power: 72-360KW
3)Working Pressure: 0.7-1.6MPa
4)Voltage:220-460V
I. Main Features:
1.Electric steam boiler is high efficient, quiet, and safe for your process needs.
2.Vertical design requires minimal floor space.
3.The heating elements are easily accessible-permit quick removal for service or inspection.
4.No NOX(Nitrogen oxides) emission.Electric boilers have no wasted fuel going out the stack as electric boilers are environmentally friendly.
5.Completely wired control box located in front of the boiler.
6.All electrical components have demonstrated signs CE and equipped with world famous brands (SCHNEIDER, SIMENS, OMRON, and LG) to ensure product safety and service life.
7.98% thermal efficient because the heating elements (CE tested) are totally immersed in water.
8.Power switch function to allow different steam using requirement.
9.Heating elements start one by one, reducing the electric loading.
IDEAL FOR CLOTHES PRESSING, LAUNDRY, HOSPITAL, FOOD PROCESSING AND STEAM ROOM APPLICATIONS etc...
II. Details:

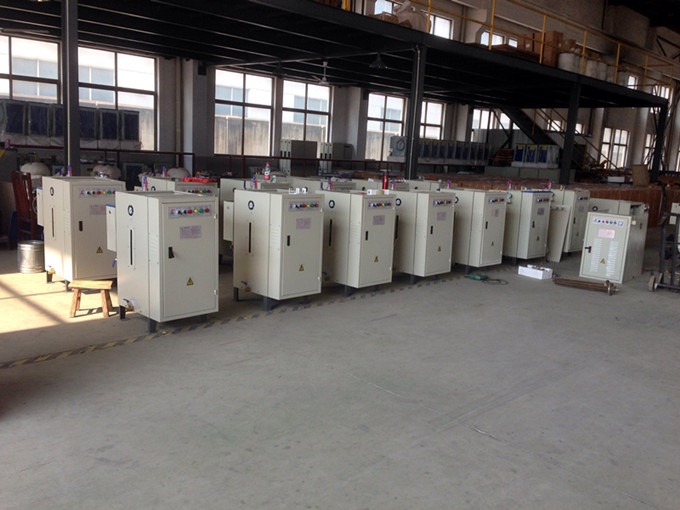

1) Assembly Area:

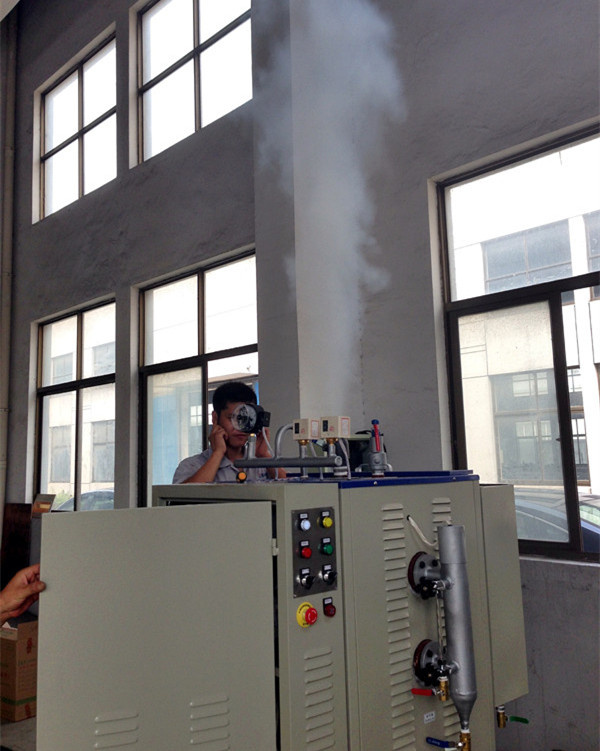

2) Function Test before Shipment:
III. Why Choose US!
We are a professional marine boiler manufacturer and exporter.
Very sincerely looking for long-term win-win business here.
Major exports include marine boiler, electric steam boiler, oil(gas) steam boiler, oil(gas) hot water boiler, and oil(gas)thermal oil boiler, etc.
We warmly welcome you to enquiry us, and also appreciate any of your comments!IV.Technical Parameters:Model | LDR0.1-0.8 | LDR0.15-0.8 | LDR0.2-0.8 | LDR0.25-0.8 | LDR0.3-0.8 | LDR0.4-0.8 | LDR0.5-0.8 |
Item | Unit |
Rated Steam Capacity | Kg/h | 100 | 150 | 200 | 250 | 300 | 400 | 500 |
Rated Working Pressure | MPa | 0.8 (1.0, 1.25, 1.6) |
Saturated Steam Temperature | °C | 175 (184, 194, 204) |
Input Power | KW | 72 | 108 | 144 | 180 | 216 | 288 | 360 |
Input Current | A | 113 | 169.2 | 235 | 270 | 329 | 432 | 547 |
Voltage | V/Hz | 380,50 (Made to order) |
Water Inlet | DN | 15 | 25 | 25 | 25 | 25 | 25 | 25 |
Steam Outlet | DN | 25 | 25 | 32 | 32 | 32 | 32 | 40 |
Blowdown Valve | DN | 25 | 25 | 32 | 32 | 32 | 32 | 32 |
Safety Valve | DN | 25 | 25 | 25 | 32 | 32 | 32 | 40 |
Dimension | mm | 1020×1230 ×1750 | 1250×1400×1870 | 1320×1510×2100 | 1380×1600×2360 |
Weight | Kg | 280 | 320 | 410 | 650 | 770 | 850 | 960 |
Prod Model: |
LDR 0.25-0.8 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
Electric Heating Steam Boiler: |
Compact Electric Heating Steam Boiler |
Steam Capacity: |
100, 200, 250, 300, 400 and 500kg/H |
Rated Working Pressure: |
0.7-1.6MPa |
Saturated Steam Temp.: |
171-204°c |
Thermal Efficiency: |
98% |
Heating Elements: |
Incoloy800, Titanium Tube |
Lead Time: |
15-30days/Set |
Function: |
Steam Boilers |
Fuel: |
Electric Heating |
Usage: |
Industrial |
Pressure: |
Low Pressure |
Drum Placement: |
Vertical Boiler |
Media: |
Steam |
Installation: |
Packaged Boiler |
Manufacturing Level: |
B |
Burning Style: |
Heating Element |
Structure: |
Tubular |
Water Circulation: |
Boiling Boiler |
Zhangjiagang Future Boiler Manufacture Co., Ltd., is a National boiler manufacture license enterprise, which has the certified for the certificate of ISO9001: 2000 quality assurance system. Future Boiler specializes in Oil (Gas) Fired Steam Boiler, Electric Steam Boiler, Small Electric Steam Generator, Electric Hot Water Boiler, Oil(Gas) Fired Hot Water Boiler, Marine Boilers, Boiler Accessories & Auxiliary Machines, etc...We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.
The company enjoys a good reputation in domestic and abroad by the outstanding quality and consummation service, our products already exported to more than 50 countries and regions, including USA, Europe and other developed countries. Continues growing market needs numerous innovative product concepts.
"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable advancing pace, and in getting along with customers, partners, internal staff and competitors.
