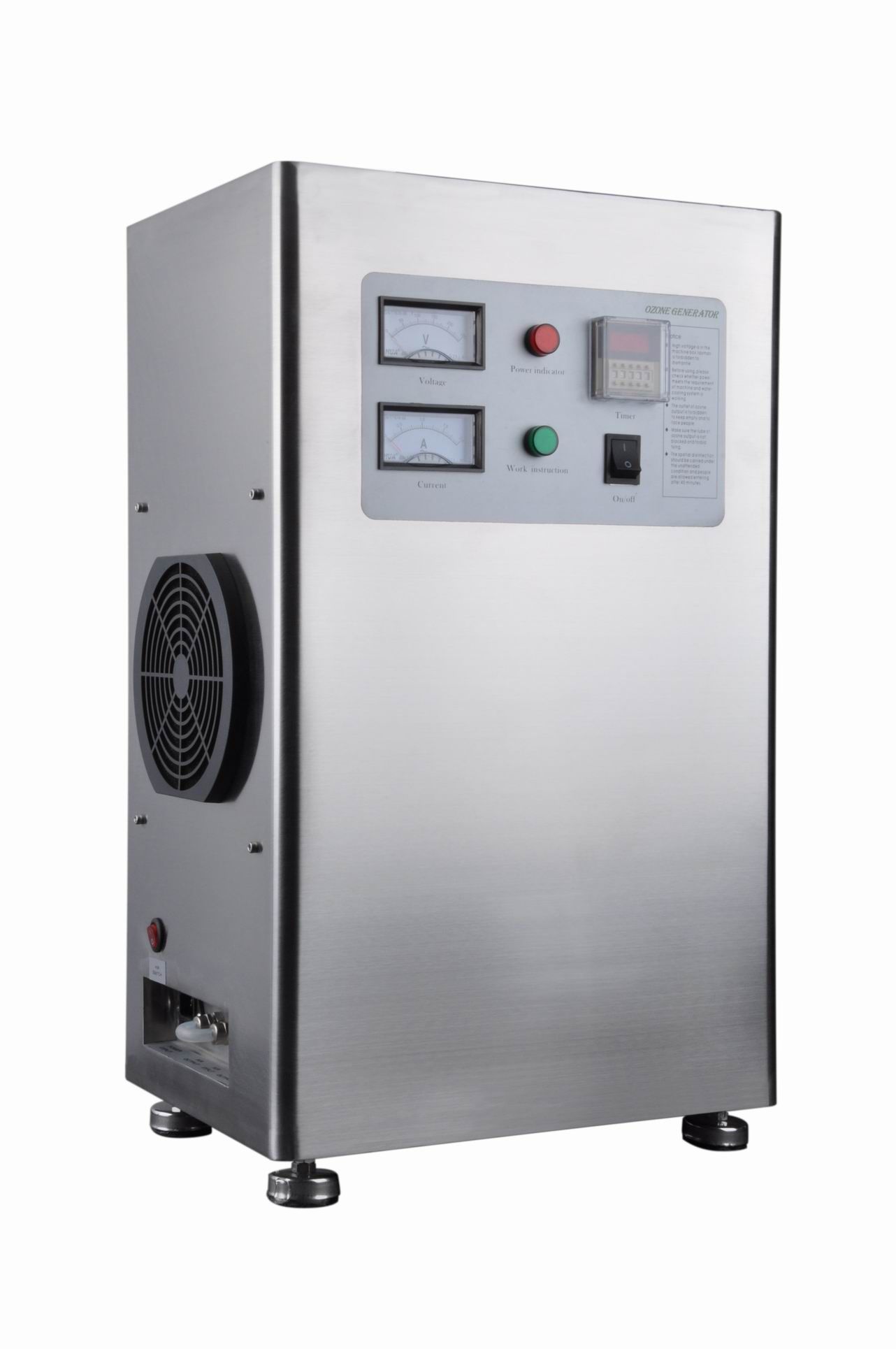

CH-T 2~20G Air Feeding Ozone Machine
Applications:
Workshop air purifier, Hospital air sterilizer, Greenhouse sterilizer, Farming sterilizer and remove odor, Keep fresh, wash and remove the residual pesticides for vegetable and fruits, Air purifier, Ozone air purifier, Ozone air sterilizer, Workshop sterilizer, Air conditioner room ozone generator, small scale water treatment, Food factory water treatment equipment, Home water treatment
Functions:
Laboratory: Chemical oxidation for raw material of flavors and fragrances, small water treatment experiment
Beverage process industry: Such as pure water, spring water and any other water sterilization and disinfection
Fruits & vegetables process industry: Such us keep fresh, storage etc
Food process industry: Water, workshop, sterile room, equipments, tools
Pharmaceutical industry: Water, air conditioner, workshop, dressing room, sterile room etc
Medical: Ward, operating room, medical devices, sterile room etc
Features:
Wall hanging SS housing
With built-in Auto-drying system
With built-in air feed or connect outside oxygen feed
Use with air cooling ceramic tube, high frequency electric board, thus with stable ozone capacity, long life time
Small in size, it can be movable
Timer: One or two recycle working time
Control panel:
Voltmeter, Ampmeter, Switch, Timer, Working light, Power light
|
Item |
Unit |
CH-T |
|
2G |
3G |
5G |
6G |
10G |
15G |
20G |
|
Oxygen flow rate |
LPM |
0.5~2 |
1~3 |
1.2~3 |
1.5~3.5 |
2.4~6 |
3.6~9 |
3~10 |
|
Ozone concentration |
Mg/L |
28~50 |
28~65 |
32~60 |
28~56 |
32~60 |
32~60 |
51~104 |
|
Ozone output |
G/Hr |
1.5~3.0 |
4~5.0 |
4.3~5.7 |
5.0~5.8 |
8.6~14.5 |
13~17 |
18~31 |
|
Power |
W |
115 |
135 |
160 |
185 |
260 |
330 |
400 |
|
Cooling method |
Air cooling for internal & external electrodes |
Water cooling |
|
Air flow rate (Suggested) |
LPM |
40~60 |
50~75 |
50~90 |
|
Compressed air pressure |
Mpa |
0.025 |
|
Fuse of power supply |
A |
3 |
5 |
5 |
5 |
|
Size |
mm |
360× 260× 610 |
400× 300× 770 |
400× 300× 770 |
|
Net Weight |
kg |
11.25 |
11.30 |
11.50 |
18 |
20 |
35 |
We are located in Guangzhou City, Guangdong Province, China. It's a Professional ozone generator manufacturer specializing in R & D, design, Manufacture and processing of ozone products. We also provide professional Service with consultation in type selection, reliable and economic recommendation and after-sales service.
The main products of the company are portable Ozone Generators with the brand Of "oZocenter", CH-PT & CH-PTF series of Ceramic Ozone Tube, and CH-PC enamel Ozone tube, which have already obtained domestic patents.
The products of our company are widely used for water treatment, chemical oxidation, food processing and pharmaceutical industry. Our products, which seek for greater perfection and for th e quality goal of excellence, are reflected in the portable machine and patent parts. We will provide you with new selection with our many years of great focus on ozone technology research and the accumulated experience in various application fields and continuous products innovation which will meet your new needs.
