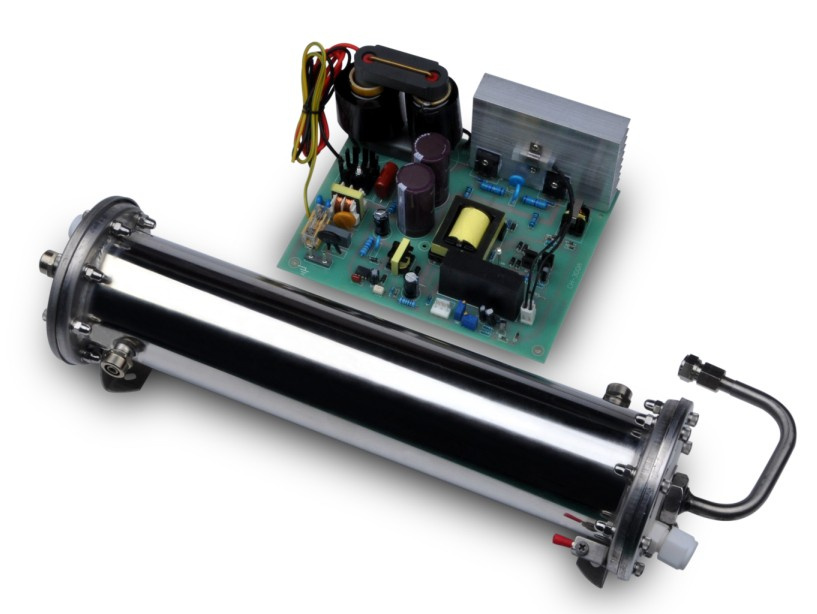

Water cooling Enamel Ozone Tube
Electrodes:
Use enamel coating as internal electrode, stainless steel as external electrode, capacity of corona resistance and machinery anti-force capacity are stronger than glass, ceramic material. Uniformity air gap between enamel coating internal electrode and stainless stee l external electrode, it produces high concentration ozone output. It uses insulation materials for connections, for preventing creepage.
Cooling way
Water cooled for internal & external electrodes, effective prevent high temperature rising when the tube is discharging, for ensuring high ozone concentration output.
Adjustable ozone output: 20-100%.
Use high-frequency & Intelligent power supply inverse system, ozone output can be changed on demand to achieve accuracy control.
High ozone concentration & output
|
Item |
Unit |
CH-PC10G |
CH-PC20G |
CH-PC30G |
CH-PC50G |
CH-PC60G |
|
Oxygen flow rate |
LPM |
1-3 |
2-6 |
3-10 |
5-15 |
8-18 |
|
Ozone concentration |
Mg/L |
88-58 |
88.6-57 |
87.5-56.8 |
90-56 |
90-60 |
|
Ozone output |
G/Hr |
5.28-10.44 |
10.63-20.52 |
15.75-34.08 |
27-50.40 |
43.2-64.80 |
|
Power |
Kw |
0.2 |
0.28 |
0.38 |
0.55 |
0.75 |
|
Output frequency |
KHz |
2.4 |
|
High voltage output |
V |
2800 |
|
Cooling method |
Water cooling for internal & external electrodes |
|
Cooling water flow rate |
LPM |
30 |
48 |
|
Cooling water temperature |
º C |
35 |
|
Fitting size |
mm |
1. Air inlet & ozone outlet: EDφ 8mm 2. Cooling water: EDφ 10mm |
|
Adjustable range |
% |
20-100 |
|
Power supply |
V/Hz |
110/220V 50/60HZ |
|
Fuse |
A |
3 |
5 |
10 |
|
Ozone tube dimension |
mm |
250× 105× 125 |
310× 105× 125 |
430× 105× 125 |
575× 105× 125 |
778× 105× 125 |
|
Mounting hole foot print of ozone tube |
mm |
127× 44(φ 5) |
195× 44(φ 5) |
320× 44(φ 5) |
450× 44(φ 5) |
555× 44(φ 5) |
|
Power supply dimension |
mm |
200× 100× 85 |
190× 150× 85 |
210× 150× 80 |
|
Mounting hole foot print of power supply |
mm |
155× 127 |
155× 127 |
192× 177 |
192× 177 |
243× 208 |
|
Ozone tube weight |
Kg |
2.50 |
3.00 |
3.60 |
4.90 |
5.45 |
|
Power supply weight |
Kg |
1 |
2.40 |
We are located in Guangzhou City, Guangdong Province, China. It's a Professional ozone generator manufacturer specializing in R & D, design, Manufacture and processing of ozone products. We also provide professional Service with consultation in type selection, reliable and economic recommendation and after-sales service.
The main products of the company are portable Ozone Generators with the brand Of "oZocenter", CH-PT & CH-PTF series of Ceramic Ozone Tube, and CH-PC enamel Ozone tube, which have already obtained domestic patents.
The products of our company are widely used for water treatment, chemical oxidation, food processing and pharmaceutical industry. Our products, which seek for greater perfection and for th e quality goal of excellence, are reflected in the portable machine and patent parts. We will provide you with new selection with our many years of great focus on ozone technology research and the accumulated experience in various application fields and continuous products innovation which will meet your new needs.
