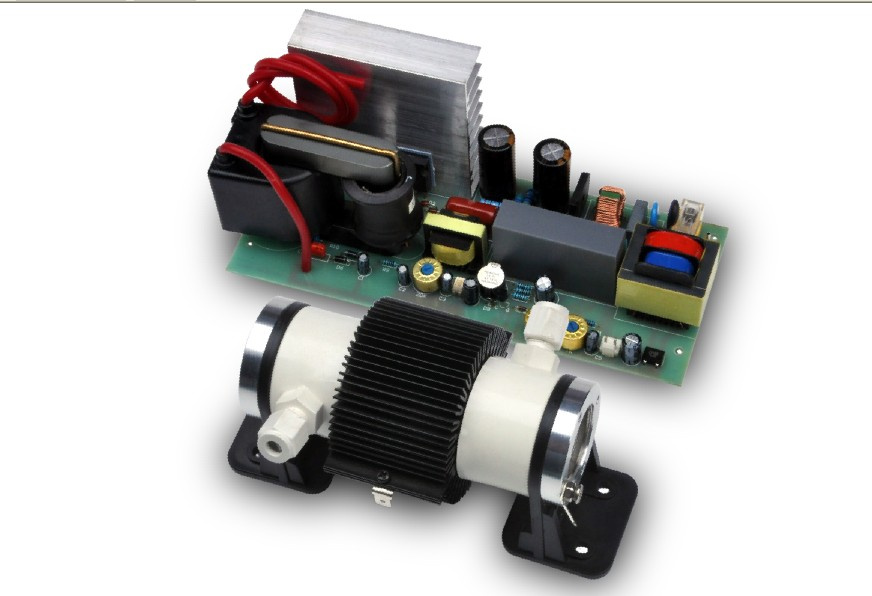

Air cooling Ceramic Ozone Tube
Imported material of high pure ceramic, SS 316L of internal electrode, teflon connections which are best anti-oxidation material for ensuring several years running.
Features:
1. Extremely low rate of ozone decay & high ozone concentration.
Ozone concentration can be around 28~65 Mg/L, which is much higher than conventional products.
2. Domestic patent product-got domestic patent in 2008.
Air cooled for internal & external electrodes with low temperature rise of continuously working, high efficiency and stable ozone output.
3. Low working voltage
The working voltage is only 10% of the similar products, stable capacity but with low ozone dissipated.
4. Small in size.
It saves space effectively. The size is 1/4 smaller than similar products.
5. Easy to maintain and install
|
Φ Item |
Unit |
CH-PTF |
|
|
|
2GM |
2GA |
3GM |
3GA |
5GM |
5GA |
6GA |
|
Oxygen feed flow rate |
LPM |
0.5-2 |
1-3 |
1.2-3 |
1-2.5 |
|
Ozone concentration |
Mg/L |
50.3-28 |
65-28 |
60-32 |
50-39 |
|
Ozone output |
G/Hr |
1.5-3.36 |
3.9-5.04 |
4.32-5.76 |
3-5.85 |
|
Power |
Kw |
0.040 |
0.050 |
0.080 |
0.085 |
|
Output frequency |
KHz |
7-15 |
|
High voltage output |
V |
3600V Peak to Peak |
|
Power supply dimensions |
mm |
165× 65× 52 |
200× 75× 83 |
165× 65× 52 |
200× 75× 83 |
165× 65× 52 |
200× 75× 83 |
215× 87× 85 |
|
Location of mounting holes of power supply |
mm |
152(Φ 5) |
190.5× 57 |
152(Φ 5) |
190.5× 57 |
152(Φ 5) |
190.5× 57 |
/ |
|
Cooling method |
/ |
Air cooling for internal and external electrode |
|
Fitting size for air & ozone |
mm |
IDΦ 6, EDΦ 8 |
|
Ozone output adjustable range |
% |
/ |
20-100 |
/ |
20-100 |
/ |
20-100 |
|
Dew point |
º C |
-45 |
|
Line power supply |
V/Hz |
110/220V 50/60Hz |
|
Ozone tube dimensions |
mm |
162× 60 |
182× 60 |
200× 60 |
227× 60 |
|
Mounting hole foot print of ozone tube |
mm |
140× 28(Φ 5) |
160× 28(Φ 5) |
177× 28(5) |
204.5× 28
(Φ 5) |
|
Ozone tube weight |
Kg |
0.50 |
0.53 |
0.56 |
0.65 |
|
Power supply weight |
Kg |
0.59 |
0.76 |
0.59 |
0.76 |
0.59 |
0.76 |
1.10 |
We are located in Guangzhou City, Guangdong Province, China. It's a Professional ozone generator manufacturer specializing in R & D, design, Manufacture and processing of ozone products. We also provide professional Service with consultation in type selection, reliable and economic recommendation and after-sales service.
The main products of the company are portable Ozone Generators with the brand Of "oZocenter", CH-PT & CH-PTF series of Ceramic Ozone Tube, and CH-PC enamel Ozone tube, which have already obtained domestic patents.
The products of our company are widely used for water treatment, chemical oxidation, food processing and pharmaceutical industry. Our products, which seek for greater perfection and for th e quality goal of excellence, are reflected in the portable machine and patent parts. We will provide you with new selection with our many years of great focus on ozone technology research and the accumulated experience in various application fields and continuous products innovation which will meet your new needs.
