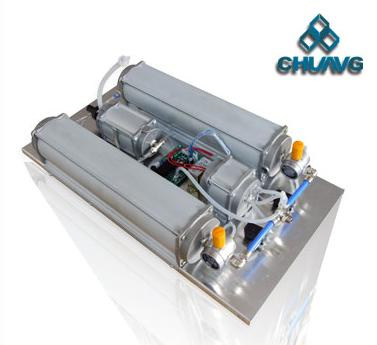

2 Towers Oxygen Concentrator
Descriptions:
1. Simple structure, easy to operate, and stable oxygen output.
2. Material: Zeolite/alumina; Each unit can work independently, and oxygen output can reach to 3-10 LPM or higher.
3. With chiller for cooling air, no need additional refrigerant dryer for reducing cost.
4. Oxygen purity can up to 90+5%. Two oxygen cylinders exchange working, auto drain water, nitrogen and other impurities output.
5. Parts with shipping: Chiller, fan and air inlet pipe.
6. Oxygen outlet pressure: 0.06-0.08Mpa.
|
Item |
Unit |
Zeolite Material |
Lithium Material |
|
CH03L-1 |
CH05L-1 |
CH05L-2 |
CH10L-2 |
|
Oxygen output |
LPM |
3L |
5 |
5 |
10 |
|
Oxygen concentration |
% |
90%±3% |
90%±3% |
90%±3% |
93%±3% |
|
Power |
W |
280 |
450 |
650 |
|
Pressure(inlet) |
Mpa |
0.18-0.2 |
0.2 |
|
Pressure(outlet) |
Mpa |
0.06-0.08 |
|
Temperature |
ºC |
indoor temperature |
|
Relative humidity |
% |
≤85% |
|
Noise |
Db |
≤ 55 |
≤60 |
≤70 |
|
Dimension |
mm |
550×160×80 |
550×180×80 |
550×180×80 |
610×310×120 |
|
Weight |
kg |
5.5 |
5.8 |
5.8 |
7.8 |
We are located in Guangzhou City, Guangdong Province, China. It's a Professional ozone generator manufacturer specializing in R & D, design, Manufacture and processing of ozone products. We also provide professional Service with consultation in type selection, reliable and economic recommendation and after-sales service.
The main products of the company are portable Ozone Generators with the brand Of "oZocenter", CH-PT & CH-PTF series of Ceramic Ozone Tube, and CH-PC enamel Ozone tube, which have already obtained domestic patents.
The products of our company are widely used for water treatment, chemical oxidation, food processing and pharmaceutical industry. Our products, which seek for greater perfection and for th e quality goal of excellence, are reflected in the portable machine and patent parts. We will provide you with new selection with our many years of great focus on ozone technology research and the accumulated experience in various application fields and continuous products innovation which will meet your new needs.
