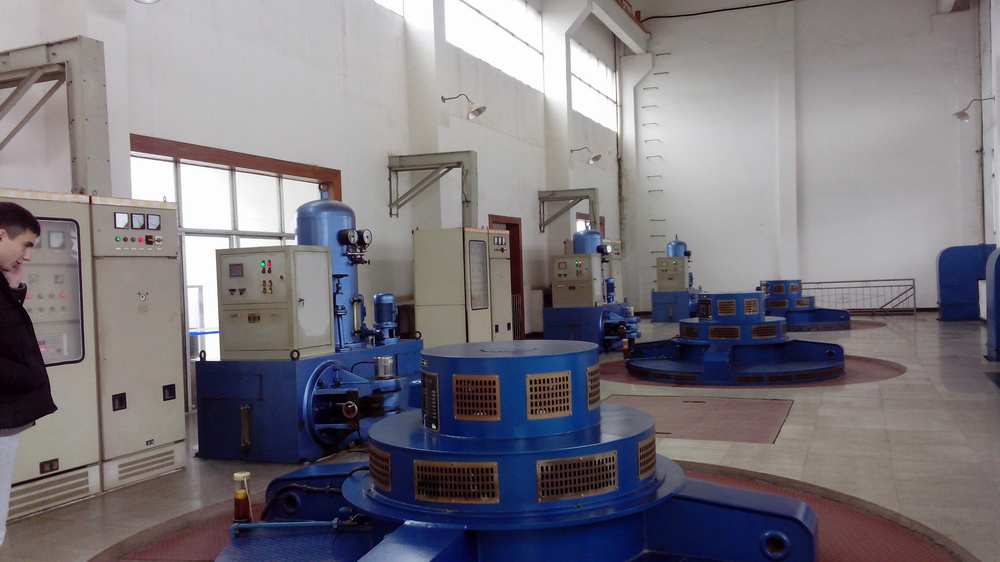

Axial-Flow Water Turbine / Kaplan Turbine Generator Unit
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |
Axial-Flow Water Turbine / Kaplan Turbine Generator UnitKaplan turbine also known as axial flow -turbine is developed in 1913 by the Austrian professor Kaplan.Its invention allowed efficient power production in low-head applications that was not possible with Francis turbines.
Kaplan turbines are widely used throughout the world for electrical power production. They cover the lowest head hydro sites and are especially suited for high flow conditions.The head ranges from 3m to 80m.
The feature of Kaplan turbine is the water flow passes through the runner axially.
Inexpensive micro turbines on the Kaplan turbine model are manufactured for individual power production with as little as two feet of head.
The axial-flow turbine can be classified into two forms according to the runner construction: fixed blades (Propeller) for small variation of head and power, the other is adjustable blades (Kaplan) for large variation of head and power.
Our company
Fuchun Industry Development Co., ltd Shenzhe is an experienced manufacture and engineering Company in small scale hydro power equipment ( 100Kw to 50Mw). We play the role of manufacture and EPC contractor and could supply water to wire equipments and services.

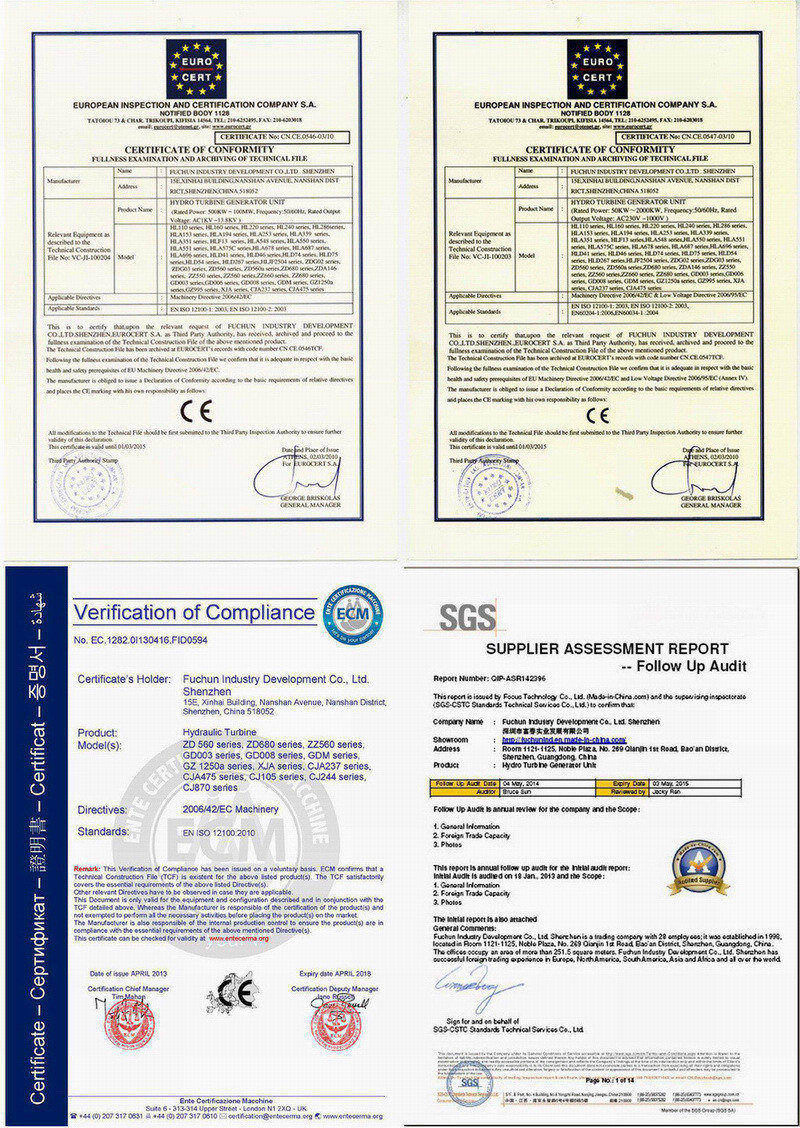

Our factory occupies 560,000 square meters of land,which inculdes 18 workshops,over 320 sets of heavy and precision producing and testing machinery;scientific research development center in the southern China,and various testing facilities.Besides of our 50 years industrial experice and expertise, we also hold close ties with several research institutions and universities in this field in order to maintain advanced technology and to develop new products.More than 20 kinds of our products have been granted national or provincial technical progress and excellent products awards.We fully carry out the ISO9001 quality management system.Our products can meet IEC standard and CE requirements.
|
Hydro turbine |
Generator |
Speed
governor |
|
Type |
Design
Head(m) |
Design
Flow
(m³ /s) |
Power
(kW) |
Rated
Speed
(r/min) |
Type |
Rated
Power
(Kw) |
Rated
Voltage
(v) |
ZZ660-LH-280 |
15.5 |
47 |
6632 |
214.3 |
SF6300-28/3250 |
6300 |
6300 |
WST-80 |
|
18.2 |
51.3 |
8423 |
214.3 |
SF8000-28/4250 |
8000 |
6300 |
WST-80 |
|
21.1 |
55 |
10527 |
250 |
SF10-24/4250 |
10000 |
6300 |
WST-80 |
|
24.5 |
59 |
13091 |
250 |
SF12.5-24/4250 |
12500 |
10500 |
WST-80 |
ZZ660-LH-300 |
13.6 |
53.5 |
6632 |
187.5 |
SF6300-32/4250 |
6300 |
6300 |
WST-80 |
|
15.6 |
59.2 |
8422 |
187.5 |
SF8000-32/4250 |
8000 |
6300 |
WST-80 |
|
18.5 |
62.5 |
10526 |
214.3 |
SF10-28/4250 |
10000 |
6300 |
WST-80 |
|
21.7 |
66.5 |
13091 |
214.3 |
SF12.5-28/4250 |
12500 |
10500 |
WST-100 |
ZZ660-LH-350 |
10.6 |
68.6 |
6632 |
136.4 |
SF6300-44/4250 |
6300 |
6300 |
WST-80 |
|
12.7 |
72.7 |
8425 |
150 |
SF8000-40/4250 |
8000 |
6300 |
WST-80 |
|
14.8 |
78.1 |
10528 |
166.7 |
SF10-36/4250 |
10000 |
6300 |
WST-100 |
|
17.5 |
82.5 |
13093 |
187.5 |
SF12.5-32/4250 |
12500 |
10500 |
WST-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Capacity: |
100kw~50mw |
| Water Head: |
From 3m to 100m |
| Type: |
Kaplan Turbine |
Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.
Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.
Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.
In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.
Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
