Stainless Steel Kaplan Hydro Turbine 3m - 80m With Fixed / Adjustable Blades
Kaplan turbine

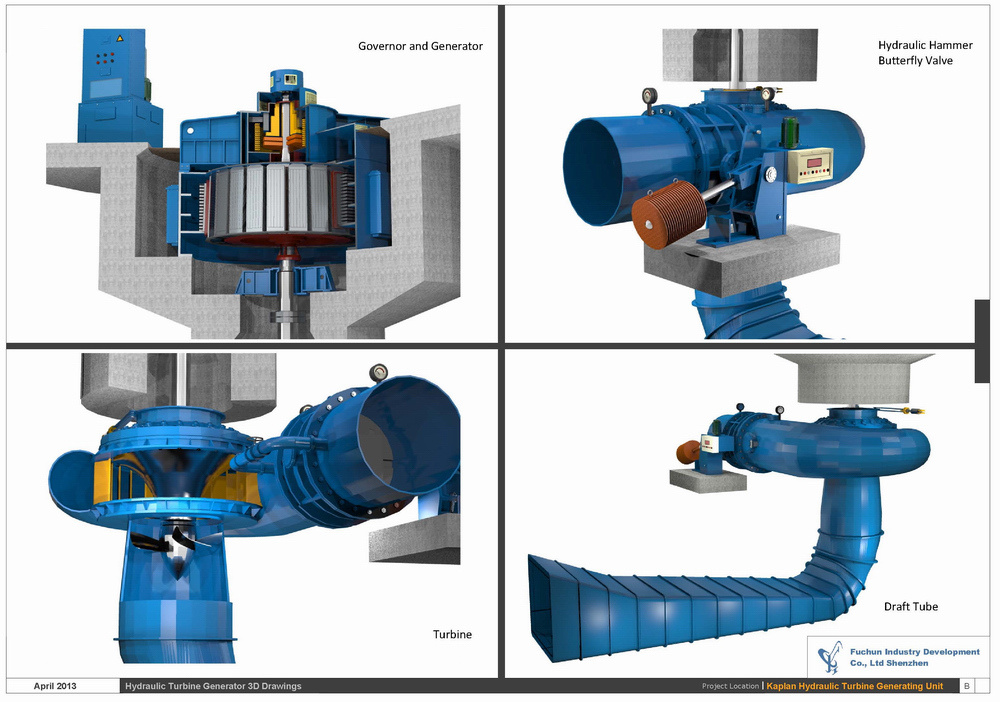

The axial flow turbine is an inward flow reaction turbine, which means that the working fluid changes Kaplan turbine is a kind of turbine suit to low water head 2-20 meters, and with certain big flow, normally divided into fixed blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 60cm to 4meters, with rated output 50Kw to 20Mw.
Turbine units normally be vertical shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If specially specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size.
Kaplan Runner
Kaplan runner with 3 to 6 blades, fixed blades runner, blades are casted and then welded on the runner hub, and bolts connection with draft cone. Regarding the adjustable blades runner, the hub is designed to be hollow, and a control rod is designed in the shaft middle to change blades angle in order to suit different flow.
Runner material: stainless steel, or other specified by the client
Kaplan runner has been manufactured by us all this high strength, higher efficiency, and longer service life. The factory tests including static and dynamic balance test, UT test, and dimension measurement.
Our company
Fuchun Industry Development Co., ltd Shenzhen is an experienced manufacture and engineering Company in hydro power equipment. We play the role of manufacture and EPC contractor andcould supply water to wire equipments and services.
Fuchun has a experienced and professional team to work for site survey, civil work design and power system design. Also there is a strong after sale service to serve at different projects in the world.
We can provide customers with the complete package, from the design and manufacture of the turbine, generator and control equipment through to installation, commissioning and ongoing repair and maintenance.
1.Water Turbine Generator Unit Design & SUPPLY
2.Hydropower equipment supply
3.Feasibility study of hydropower project
4.Manufacture
5.Installation & Supervision
6.Commissioning and Training service
7. Hydro power plant rehabilitant
8. Hydro power plant spares supply
9.Services
Hydro turbine |
Generator |
Speed
governor |
| Type | Design
Head(m) | Design
Flow
(m³ /s) | Power
(kW) | Rated
Speed
(r/min) | Type | Rated
Power
(Kw) | Rated
Voltage
(v) |
ZZ660-LH-280 | 15.5 | 47 | 6632 | 214.3 | SF6300-28/3250 | 6300 | 6300 | WST-80 |
| 18.2 | 51.3 | 8423 | 214.3 |
SF8000-28/4250 | 8000 |
6300 | WST-80 |
| 21.1 | 55 | 10527 | 250 |
SF10-24/4250 | 10000 |
6300 | WST-80 |
| 24.5 | 59 | 13091 | 250 |
SF12.5-24/4250 | 12500 |
10500 | WST-80 |
ZZ660-LH-300 | 13.6 | 53.5 | 6632 | 187.5 |
SF6300-32/4250 | 6300 |
6300 | WST-80 |
| 15.6 | 59.2 | 8422 | 187.5 |
SF8000-32/4250 | 8000 |
6300 | WST-80 |
| 18.5 | 62.5 | 10526 | 214.3 |
SF10-28/4250 | 10000 |
6300 | WST-80 |
| 21.7 | 66.5 | 13091 | 214.3 |
SF12.5-28/4250 | 12500 |
10500 | WST-100 |
ZZ660-LH-350 | 10.6 | 68.6 | 6632 | 136.4 |
SF6300-44/4250 | 6300 |
6300 | WST-80 |
| 12.7 | 72.7 | 8425 | 150 |
SF8000-40/4250 | 8000 |
6300 | WST-80 |
| 14.8 | 78.1 | 10528 | 166.7 |
SF10-36/4250 | 10000 |
6300 | WST-100 |
| 17.5 | 82.5 | 13093 | 187.5 |
SF12.5-32/4250 | 12500 |
10500 | WST-100 |
Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.
Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.
Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.
In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.
Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
