Kaplan Turbine for Hydro Power Plant
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P |

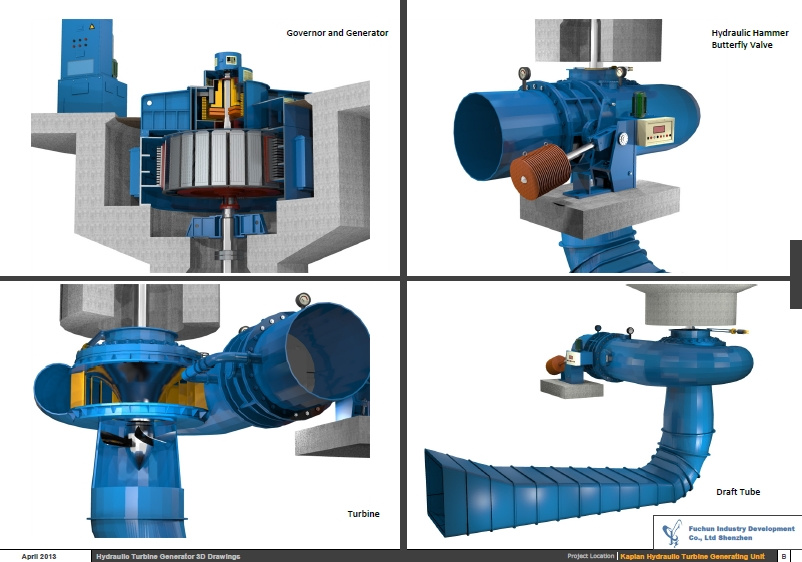

Kaplan Turbine for Hydro Power PlantKaplan turbine also known as axial flow Turbine is developed in 1913 by the Austrian professor Kaplan.Its invention allowed efficient power production in low-head applications that was not possible with Francis turbines.The feature of Kaplan turbine is the water flow passes through the runner axially.
Kaplan turbines are widely used throughout the world for electrical power production. They cover the lowest head hydro sites and are especially suited for high flow conditions.

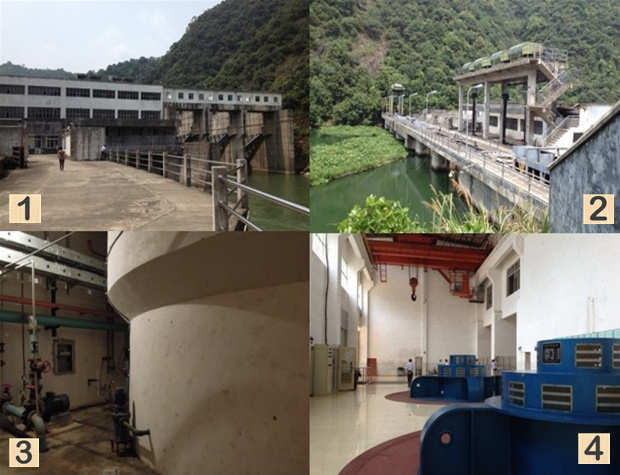

Figure 1 Power house viewed from downstream side
Figure 2 Power house viewed from upstream side
Figure 3 Turbine Floor

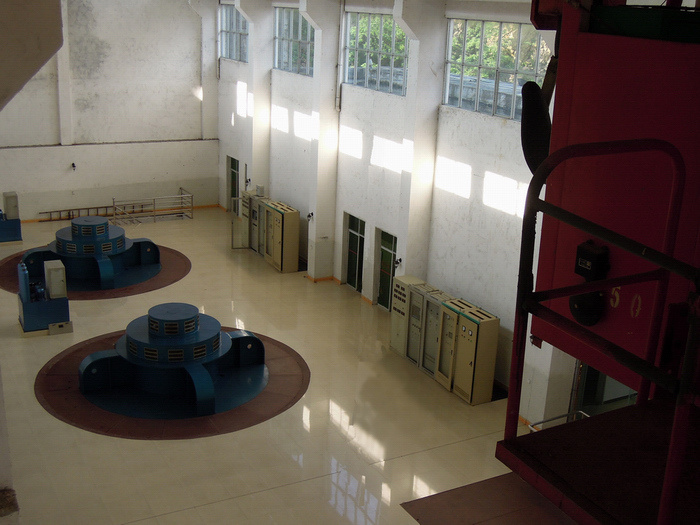

Figure 4 Generator Floor
Niu Bilong Hydro Power Plant is located in the river channel of Shangyou River, Jiangxi Province. The reservoir storage capacity is 11.7 million cubicle meters. The installed capacity is 2×5500KW.
The main structures includes concrete dam, spill way, power house and stilling basin. The substation is set indoor. The main parameters are as follows:
Attachment Area: 1125m²
Reservoir Storage Capacity:11.7 million m³
Rated Head:13.3m
Rated Discharge:99.46m³/s
Installed Capacity:2×5.5MW
Height of Dam:25.22m
Length of Dam:38m
Bottom Width of Dam:28.8m
Turbine Type:Vertical Kaplan
Spiral Case:Concrete
Weight of Turbine:56t
Unit Generator Capacity:5500KW
Outgoing Line Voltage:6.3kV
Weight of Generator:98t
Our company
Fuchun Industry Development Co., ltd Shenzhe is an experienced manufacture and engineering Company in small scale hydro power equipment ( 100Kw to 50Mw). We play the role of manufacture and EPC contractor and could supply water to wire equipments and services.
Our factory occupies 560,000 square meters of land,which inculdes 18 workshops,over 320 sets of heavy and precision producing and testing machinery;scientific research development center in the southern China,and various testing facilities.Besides of our 50 years industrial experice and expertise, we also hold close ties with several research institutions and universities in this field in order to maintain advanced technology and to develop new products.More than 20 kinds of our products have been granted national or provincial technical progress and excellent products awards.We fully carry out the ISO9001 quality management system.Our products can meet IEC standard and CE requirements.
|
Hydro turbine |
Generator |
Speed
governor |
|
Type |
Design
Head(m) |
Design
Flow
(m³ /s) |
Power
(kW) |
Rated
Speed
(r/min) |
Type |
Rated
Power
(Kw) |
Rated
Voltage
(v) |
ZZ660-LH-280 |
15.5 |
47 |
6632 |
214.3 |
SF6300-28/3250 |
6300 |
6300 |
WST-80 |
|
18.2 |
51.3 |
8423 |
214.3 |
SF8000-28/4250 |
8000 |
6300 |
WST-80 |
|
21.1 |
55 |
10527 |
250 |
SF10-24/4250 |
10000 |
6300 |
WST-80 |
|
24.5 |
59 |
13091 |
250 |
SF12.5-24/4250 |
12500 |
10500 |
WST-80 |
ZZ660-LH-300 |
13.6 |
53.5 |
6632 |
187.5 |
SF6300-32/4250 |
6300 |
6300 |
WST-80 |
|
15.6 |
59.2 |
8422 |
187.5 |
SF8000-32/4250 |
8000 |
6300 |
WST-80 |
|
18.5 |
62.5 |
10526 |
214.3 |
SF10-28/4250 |
10000 |
6300 |
WST-80 |
|
21.7 |
66.5 |
13091 |
214.3 |
SF12.5-28/4250 |
12500 |
10500 |
WST-100 |
ZZ660-LH-350 |
10.6 |
68.6 |
6632 |
136.4 |
SF6300-44/4250 |
6300 |
6300 |
WST-80 |
|
12.7 |
72.7 |
8425 |
150 |
SF8000-40/4250 |
8000 |
6300 |
WST-80 |
|
14.8 |
78.1 |
10528 |
166.7 |
SF10-36/4250 |
10000 |
6300 |
WST-100 |
|
17.5 |
82.5 |
13093 |
187.5 |
SF12.5-32/4250 |
12500 |
10500 |
WST-100 |
