Adjustable Blades Kaplan Turbine for Power House

Adjustable Blades Kaplan Turbine for Power House
Price: Negotiable/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P
Kaplan Turbine for Hydro Power Plant

Kaplan Runner

Kaplan runner with 3 to 6 blades, fixed blades runner, blades are casted and then welded on the runner hub, and bolts connection with draft cone. Regarding the adjustable blades runner, the hub is designed to be hollow, and a control rod is designed in the shaft middle to change blades angle in order to suit different flow.
Runner material: stainless steel, or other specified by the client
Kaplan runner has been manufactured by us all this high strength, higher efficiency, and longer service life. The factory tests including static and dynamic balance test, UT test, and dimension measurement.

Kaplan turbine

 Kaplan turbine is a kind of turbine suit to low water head 2-20 meters, and with certain big flow, normally divided into fixed blades and adjustable blades turbine. Main components including: runner, draft cone, water chamber, guide vane, bearing, and main shaft. The spiral case could be steel or concrete. The runner diameter we can manufacture is from 60cm to 4meters, with rated output 50Kw to 20Mw.

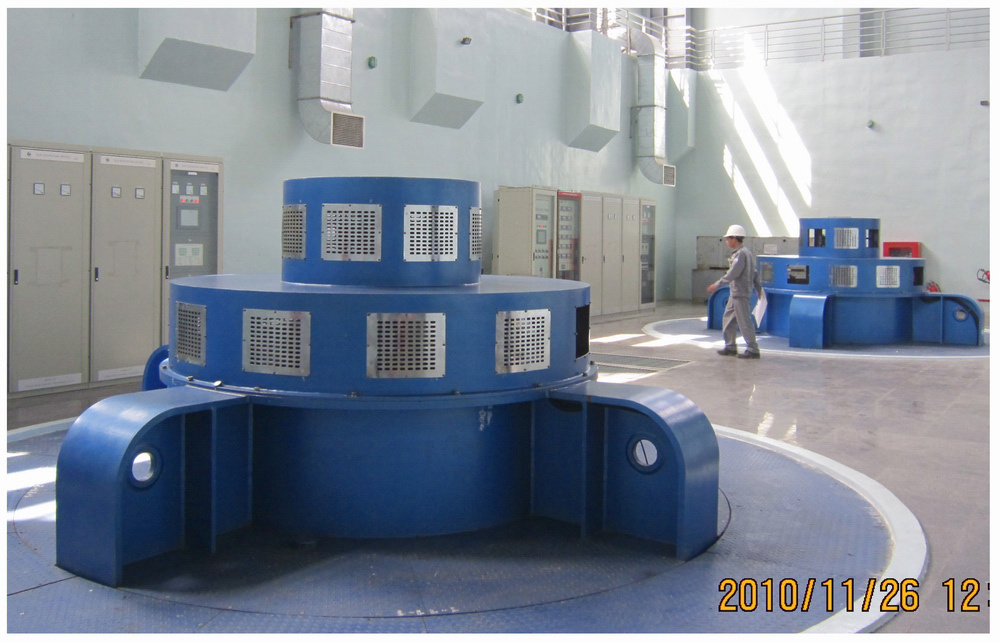

Turbine units normally be vertical shaft arrangement. Generator equipped with same or different shaft, with Anyway, they will share the same rotating speed. If specially specially required, a speed increase gear could be equipped between turbine and generator in order to smaller the generator size.

2.Accessory equipment:

  Inlet valves:Hydraulic / electric control butterfly valves, ball valves, gate valves .
  Governors: YDT, YWT, DST and TY series.
  Excitations: SCR excitations, DC excitaiton systems, AC brushless exciters.

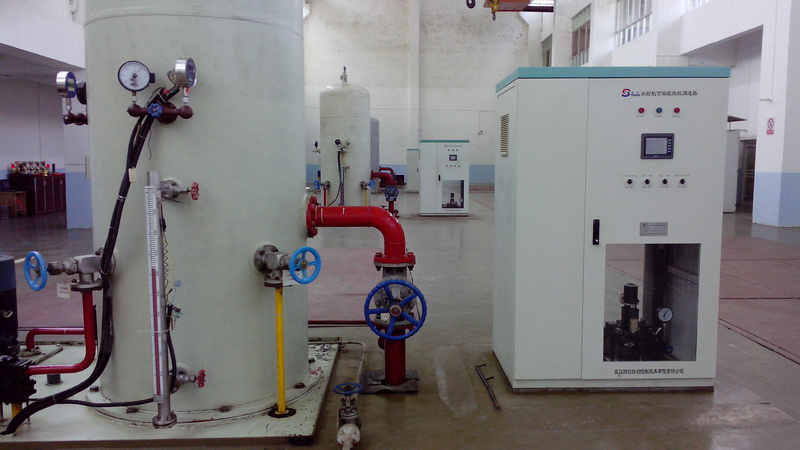

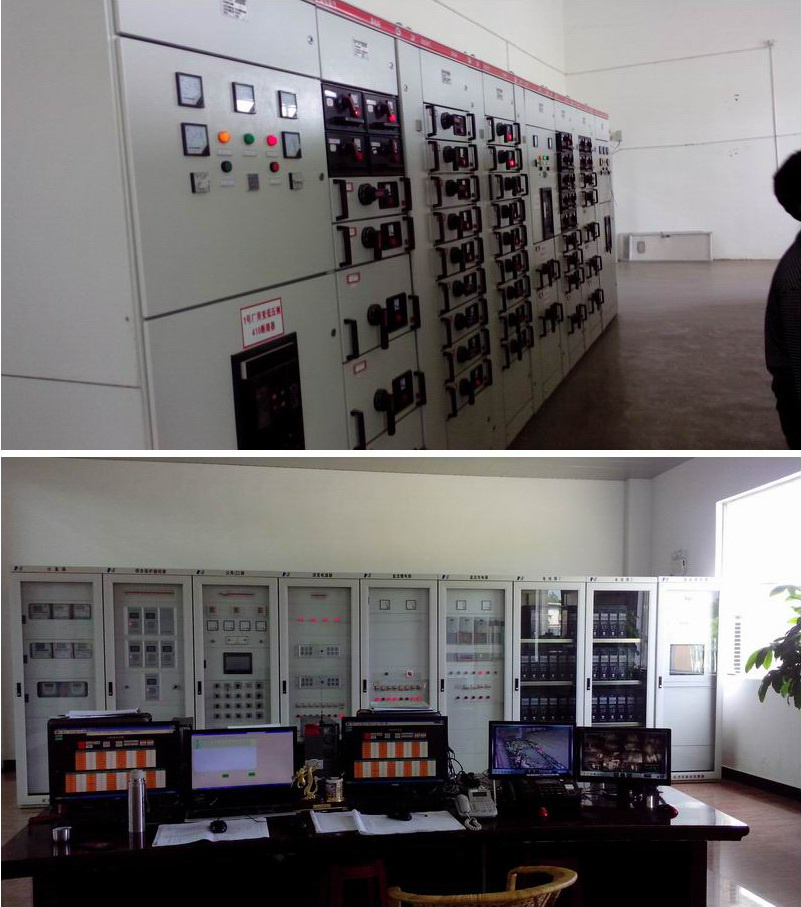

  Oil pressure supply systems, control facilities, automatic control systems and so on.



Our company

Fuchun Industry Development Co., ltd Shenzhe is an experienced manufacture and engineering Company in small scale hydro power equipment ( 100Kw to 50Mw). We play the role of manufacture and EPC contractor and could supply water to wire equipments and services.

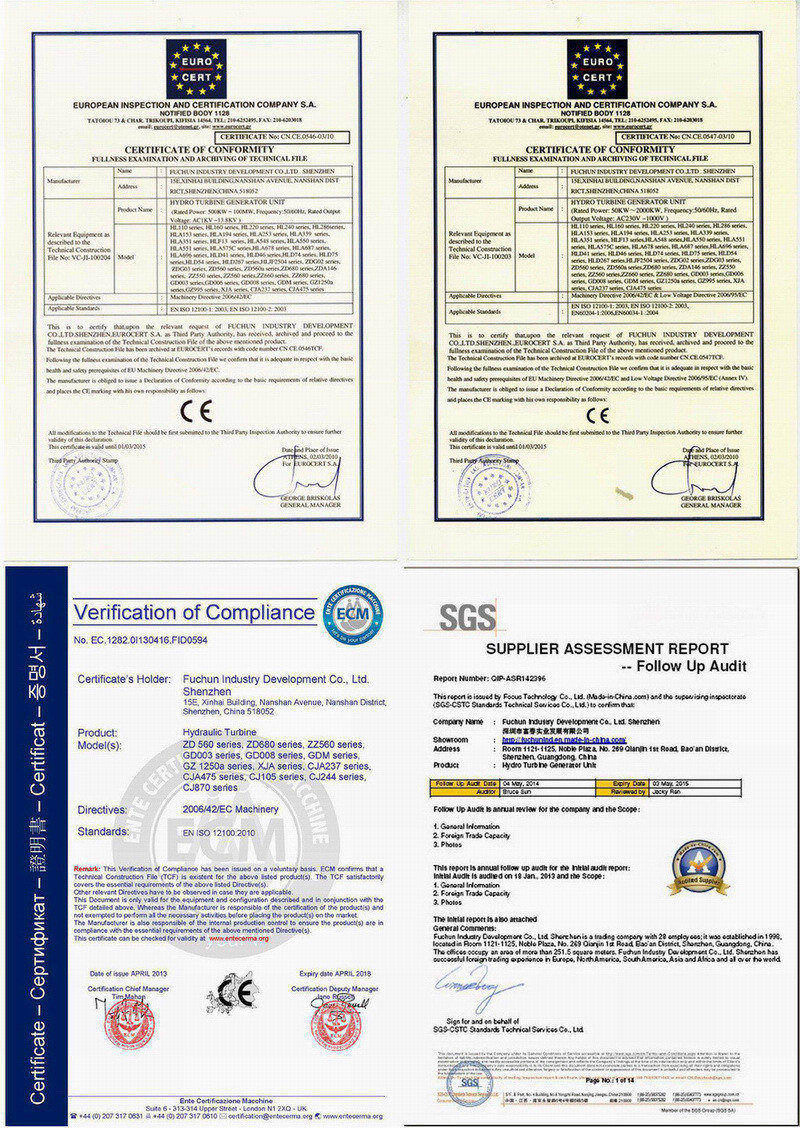

Our factory occupies 560,000 square meters of land,which inculdes 18 workshops,over 320 sets of heavy and precision producing and testing machinery;scientific research development center in the southern China,and various testing facilities.Besides of our 50 years industrial experice and expertise, we also hold close ties with several research institutions and universities in this field in order to maintain advanced technology and to develop new products.More than 20 kinds of our products have been granted national or provincial technical progress and excellent products awards.We fully carry out the ISO9001 quality management system.Our products can meet IEC standard and CE requirements.


Hydro turbine
Generator

Speed
  governor
Type Design
Head(m)
Design
Flow
(m³ /s)
Power
(kW)
Rated
Speed
(r/min)
Type Rated
Power
(Kw)
Rated
Voltage
(v)

ZZ660-LH-280
15.5 47 6632 214.3 SF6300-28/3250 6300 6300 WST-80
18.2 51.3 8423 214.3
SF8000-28/4250
8000
6300
WST-80
21.1 55 10527 250
SF10-24/4250
10000
6300
WST-80
24.5 59 13091 250
SF12.5-24/4250
12500
10500
WST-80

ZZ660-LH-300
13.6 53.5 6632 187.5
SF6300-32/4250
6300
6300
WST-80
15.6 59.2 8422 187.5
SF8000-32/4250
8000
6300
WST-80
18.5 62.5 10526 214.3
SF10-28/4250
10000
6300
WST-80
21.7 66.5 13091 214.3
SF12.5-28/4250
12500
10500
WST-100

ZZ660-LH-350
10.6 68.6 6632 136.4
SF6300-44/4250
6300
6300
WST-80
12.7 72.7 8425 150
SF8000-40/4250
8000
6300
WST-80
14.8 78.1 10528 166.7
SF10-36/4250
10000
6300
WST-100
17.5 82.5 13093 187.5
SF12.5-32/4250
12500
10500
WST-100

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Founded in 1978, Fuchun Industry Development Co., Ltd was moved to Shenzhen in 1998. In 2005, in the process of state-owned enterprise reform, our company has conglomeration and merger with GANZHOU COMPLETE SETS OF POWER GENERATING EQUIPMENTS MANUFACTURE Co., Ltd, dealing with all export projects, especially Complete Sets of Power Generating Equipments including design, manufacture, and installation and operation supervision, training.

Our factory has over 60 years experience in hydro power equipment manufacturing activities. We continue to hold the Fuchun's philosophy-adding product value, keeping good quality and providing good service.

Nowadays the company's business not only engages in manufacturing of small power equipment, but also covers engineering, design, procurement and construction of small and medium size hydro power plants (10kw-50MW) and coal-fired (biomass) power plants (200kw-25MW). We either wholly own or jointly own with other partners to have invested several factories in the power equipment industry, such as Jiangxi Ganzhou etc. We also dealing with small wind power generator and solar power plants, power substations, supply of power related equipment and machines of boiler, fan, pump, environment equipment (smoke flux treatment, water treatment), coal excavation facilities, dust and slag handling equipment, thermal power generation turbines, driving turbines, hydro turbines, wind turbines, generators, transformers, power cables, weight scales, cranes, bull dozers, analysis facilities and so on. Our company is also willing to take the contract of small and medium power generation factory consulting business because we have strong technical force of engineers and technicians.

In 30 years of the company history, we designed and manufactured a large mount of hydro turbine generators, not only for domestic China but also export to more than 30 counties, such as Guatemala, Ecuador, Congo, Pakistan, USA, Canada, Cuba, Germany, Austria, Turkey, North Korea, Viet Nam, Burma, Nepal, Norway, Denmark, Belgium, Uruguay, Russia, Georgia, Bulgaria, Bhutan, France, UK, Italy, etc.

Our company sincerely welcomes all clients, partners, and friends from all over the world to contact us for business co-operation. We believe that our efforts will bring you and us a win-win situation.
