AC RLC Load Bank for Genset Testing
1.Product Introduction
AC380V-180K-RLC AC Load Bank for Genset Testing
It is designed for AC power maintenance,could be used widely in communication base,power supply,power station etc.
This machine is small,light weight digital table display,easy operation,high intelligence, set the parameters of constant
current discharge process can be done automatically.
2.AC380V-180K-RLC AC Load Bank for Genset Testing Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
3.AC380V-180K-RLC AC Load Bank for Genset Testing Technical Specifications
Technical parameter | |
AC380V-180K-RLC | |
Rated voltage /Frequency | AC 380V/50Hz,3 Phase 4 Wire |
Max load power | Resistive load: 60KW Inductive load:60KVA Capactive load:60Kvar |
Load step | Resistive load: Each phase 10 steps,0.05,0.1,0.2,0.2,0.5,1,2,2,5,10KW; Inductive load:Each phase 10 steps,0.05,0.1,0.2,0.2,0.5,1,2,2,5,10KVA; Capactive load:Each phase 10 steps, 0.05,0.1,0.2,0.2,0.5,1,2,2,5,10Kvar |
Power factor | ±0.8 |
Load Tolerance(each step) | ±5% |
Load Tolerance(overall) | ±3% |
Display Precision | 0.2 class |
Control Power Supply | External AC220V/50Hz single phase |
Wire Connection | Load power supply input--Copper bar (star coupling) Control power supply input--Aviation plug |
Insulation grade | F class |
Duty cycle | Continuous |
Cooling | Forced air cooling, Horizontal inlet air, Upward cooling |
Transportation | Hoisting, there are lifting lug in top of casing and casters in bottom of load bank |
Casing Color | Grey(RAL7035) |
Dimension | About 1460mm*1980mm*1800mm(length*width*height) |
Weight | About 400kg |
Operating Environment Parameter | |
Ambient Temperature | -10ºC~+50ºC |
Relative Humidity | ≤95% |
Altitude | ≤2500 meters |
Atmospheric Pressure | 86~106kPa |
Main components brand | |
Contactor | Schneider |
Circuit Breaker | Siemens |
Fuse | Delixi |
SCM | Infineon |
Alloy Resistor | Kaixiang |
Data Management Software | Kaixiang |

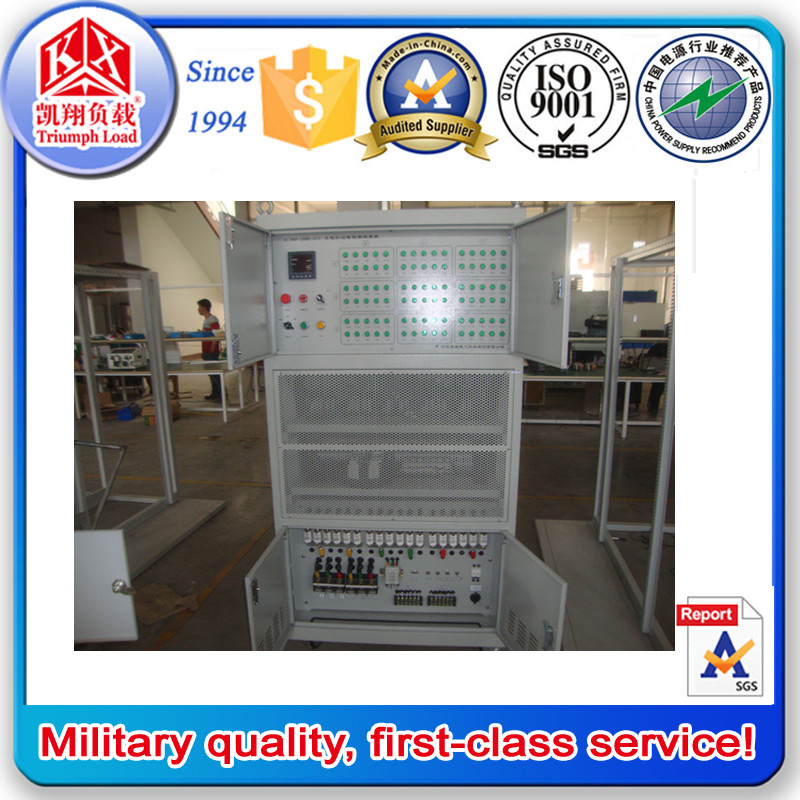

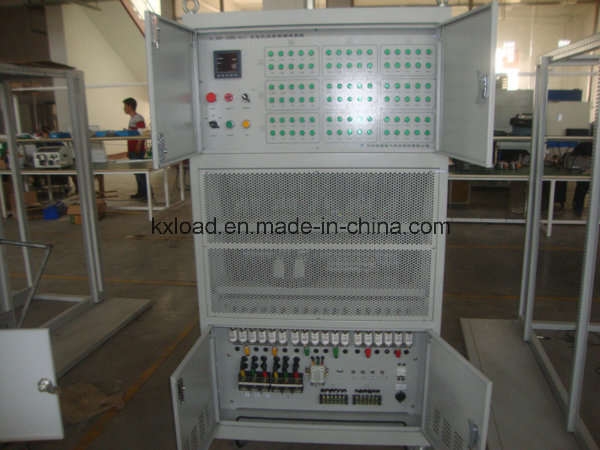

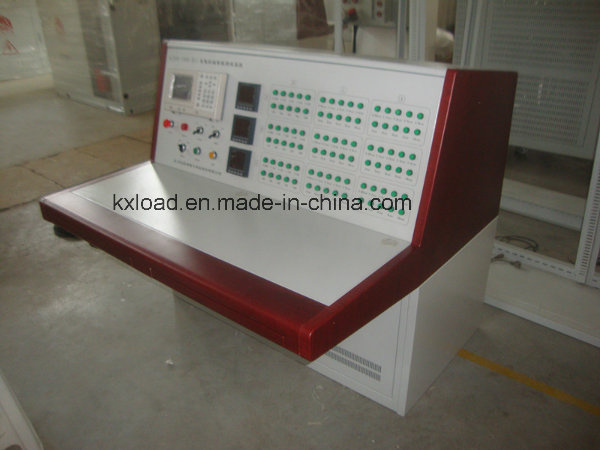

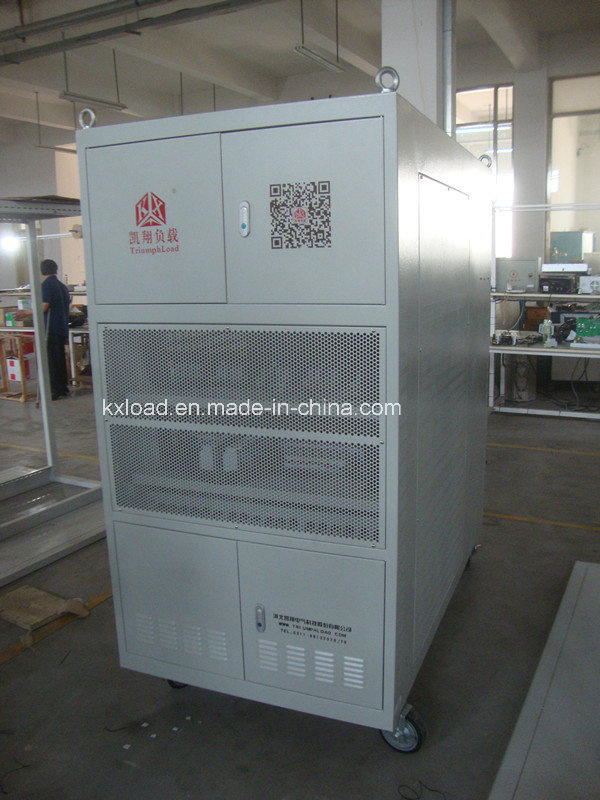

4.AC380V-180K-RLC AC Load Bank for Genset Testing Load Bank Overall Appearance
9.Contact Information
Stella Cao
KAIXIANG ELECTRICAL TECHNOLOGY CO.,LTD
FOREIGN TRADE DEPARTMENT
TEL:+86-0311-86125326
FAX:+86-0311-86128298
Mobile:+86-15081159220
Web:www.load-banks.com
Add:No.68,Jianshe Street,Yuhua District,Shijiazhuang,Hebei,China
| Prod Model: | AC380V-180K-RLC |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage: | AC380V |
| Frequency: | 50Hz |
| Resistive Power: | 60kw |
| Inductive Power: | 60kVA |
| Capactive Power: | 60kvar |
