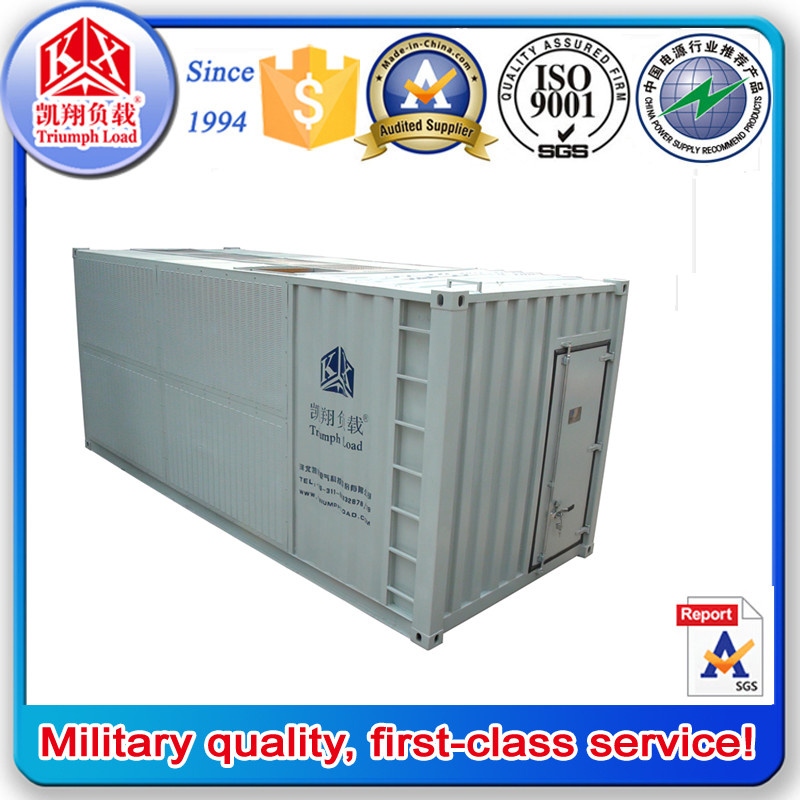

AC 440V 5500kVA Resistive Inductive Load Bank for Generator Testing

Name: AC 440V 5500kVA Resistive Inductive Load Bank for Generator Testing
Brand: aboutgenerator.com
SKU: 706106492
Availability: InStock
Rating: 4.5 (106 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Hebei Kaixiang Electrical Technology Co., Ltd.

Showroom Product Company Profile

AC 400V 500KW Generator Load Bank
1.Product Introduction
AC400-500KW Generator Load Bank
It is designed for AC power maintenance,could be used widely in communication base,power supply,power station etc.
This machine is small,light weight digital table display,easy operation,high intelligence, set the parameters of constant
current discharge process can be done automatically.

2.AC400-500KW Generator Load Bank Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)

3.AC440-5500KVA Resistive Inductive Load Bank Technical Specifications

Technical parameter
AC440-5500KVA
Rated voltage /Frequency	Three-phase three-wire 440V / 690V/400V,50/60Hz
Rated Capacity	5500KVA
Load Distribution	When 450V: Resistive load: 4400kW,Inductive load: 3300 Kvar When 690V and 400V: Resistive load: 3470kW,Inductive load: 2600 Kvar
Stepping Value	Resistive load: 1KW Inductive load: 1 Kvar
Resistor divider file	1KW,2KW,2KW,5KW,10KW,10KW,20KW,50KW,100KW,200KW*21steps
Reactance file	1Kvar,2Kvar,2Kvar,5Kvar,10Kvar,10Kvar,20Kvar,50Kvar,100Kvar,100Kvar,200Kvar*15steps
Power factor	0.8(adjustable power factor is 0.2 -1)
Load Tolerance(each step)	±5%
Load Tolerance(overall)	±3%
Display Precision	0.5 class
Control Power Supply	External AC three phase connection 440V/60Hz or 380V/50Hz
Wire Connection	Load power supply input--Copper bar (star coupling) Control power supply input--Connector-bar
Insulation grade	H class
Duty cycle	Continuous
Cooling	Forced air cooling, Horizontal inlet air, Vertical cooling
Transportation	Hoisting, there are lifting lug in top of casing and casters in bottom of load bank
Casing Color	Grey(RAL7035)
Dimension	About 6125mm2438mm2891mm(lengthwidthheight)
Weight	About 23000kg
Operating Environment Parameter
Ambient Temperature	-10ºC~+50ºC
Relative Humidity	≤95%
Altitude	≤2500 meters
Atmospheric Pressure	86~106kPa
Main components brand
Contactor	Schneider
Circuit Breaker	Siemens
Fuse	Delixi
SCM	Infineon
Alloy Resistor	Kaixiang
Data Management Software	Kaixiang

4.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
5.Contact Information
Stella Cao
KAIXIANG ELECTRICAL TECHNOLOGY CO.,LTD
FOREIGN TRADE DEPARTMENT
TEL:+86-0311-86125326
FAX:+86-0311-86128298
Mobile:+86-15081159220
Web:www.load-banks.com
Add:No.68,Jianshe Street,Yuhua District,Shijiazhuang,Hebei,China

Prod Model:	AC440-5500KVA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	AC440V
Frequency:	50Hz/60Hz
Rated Capacity:	5500kVA
Resistive Load:	4400kw
Inductive Load:	3300kvar
Insulation Grade:	F Class

Who we are

Hebei Kaixiang Electrical Technology Co., Ltd is a leading manufacturer in emergency power supply test & maintenance industry. Specialized in the design, R&D, manufacture of the high capacity AC & DC load bank, it owns the largest intelligent power supply testing equipment R & D centre in China. We offer one-stop solutions to generator set & battery & UPS power manufacturers. Our products are widely used in data centre, shipbuilding, offshore platform, state grid, nuclear power, hospital, communication, railway, war industry etc filed. We are strategy partner of many famous company, such as Cummins, Caterpillar, Kohler, Jiangnan Shipyard, CSSC, CSIC, State grid, China mobile, Tecent, Baidu, Sinopec, CETC etc. Some of our products have been exported to Singapore, Japan, United Kingdom, Saudi Arabia, Australia, South Korea, Thailand, Angola etc. Through years of development, "Triumph Load" already the first brand in power supply detection industry in China.

What we can do

1. Professional technical team with more than 20 years design experience.

2. Customized technical solutions meet customer's individual requirements.

3. Skilled workman insure the reliable assembly technology.

4. Strict inspection procedures throughout the whole production flow.

5. Prompt delivery make sure the customers receive the goods on time.

6. Perfect after sales service create good user experience.

7. Reliable quality & competitive price maximize profits for customers.

8. Timely feedback save valued time for the customer.

9. Humanized management system build homelike work atmosphere.

10. Certified with CCS and ISO9001: 2008 Quality Certificate.
