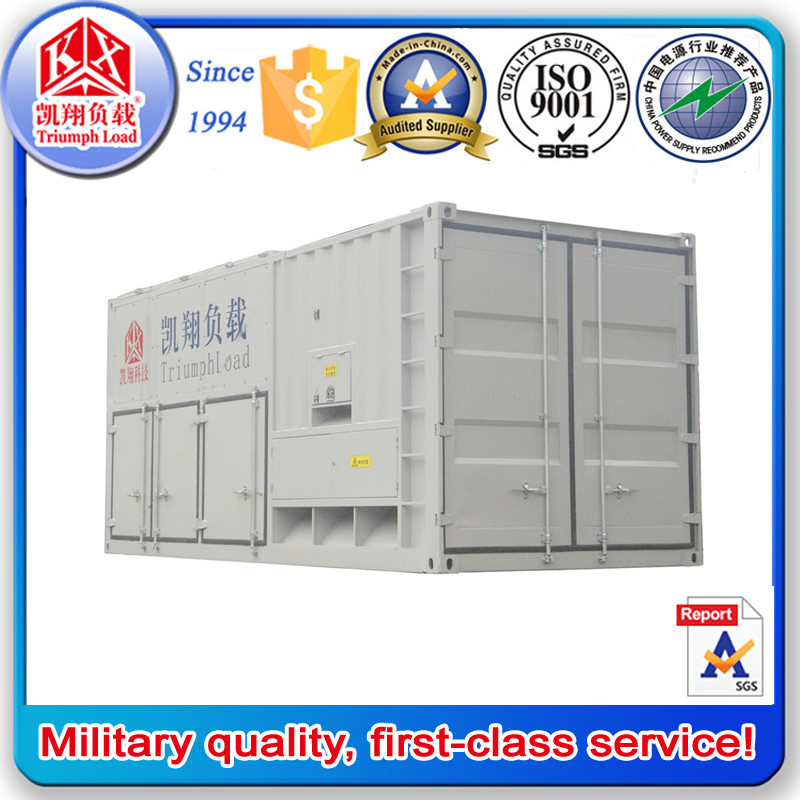

AC 440V 3000KW High Power Generator Load Banks
1.Product Introduction
AC440-3000KW High Power Generator Load Banks
This machine is mainly used in ships, offshore platforms, National Grid, research institutes, national defense, electricity, telecommunications, railways, instrumentation, universities and other areas of diesel generator sets, power-line UPS, inverters, switching power supply performance testing,
aging and other occasions.This machine has a variety of control methods, either stand-alone
operation, but also with the same series of load and machine.Power optimized segmented into
uniform to adapt to different loads and different power factor requirements.
2.AC440-3000KW High Power Load Banks Working Environment
Altitute:≤2500m
Temperature:-10°C~50°C
Humidity:≤95%RH
Working Mode:Continuous work(>6hours continuous long-term work per day)
3. AC440-3000KW High Power Load Banks Technical Specifications
System Parameters |
Rated voltage / frequency |
AC three-phase four-wire 440V/60Hz |
Rated Power |
3000kW |
Power factor |
1 |
| Power sub-file |
1, 2, 2, 5, 10, 10, 10, 10, 20, 20, 20, 20, 20, 50, 50, 50, 50, 50,
50, 50, 50, 50, 50, 50, 50, 50, 50, 50, 50, 50, 100, 100, 100, 100,
100, 100, 100, 100, 100, 100, 100, 100, 100, 100, 100, 100, 100,
100, 100, 100 (kW) |
Load Accuracy |
± 3% |
Display accuracy |
0.5 |
Power Supply |
AC three-phase three-wire 380V/50Hz or 440V/60Hz |
Insulation class |
Class F |
Maximum protection class |
IP55 |
Work |
Continuous work |
Cooling Method |
Forced air side into the wind, on the wind |
Chassis Construction |
20 ft standard containers, up to the top of the ladder with |
Transport |
Top of the chassis with load-bearing rings |
Chassis Size |
Standard container 6000mm × 2450mm × 2560mm (L × W × H) |
Weight |
About 10000kg |
Work environment parameters |
Operating Temperature |
-10 ºC ~ +50 ºC |
Relative humidity |
≤ 95% |
Altitude |
≤ 2500m |
Atmospheric pressure |
86 ~ 106kPa |
3.Why choosing us
The earliest and most professional manufacturer of AC/DC Load Bank in China, dedicated to this industry for more than 20 years.
The most patent technology and scientific research awards gainer in China.
Advanced detection method and strict inspection procedure build the qualified quality.
Customized production meet the individual requirement.
Prompt delivery & excellent after sales service.
Cooperate with many well-known enterprise, offer OEM and ODM service to world famous brands.
Certified with China Classification Society (CCS) and ISO9001:2008 Quality Certificate.
Triumph Load is the first brand in the emergency power supply test & maintenance industry in China.
