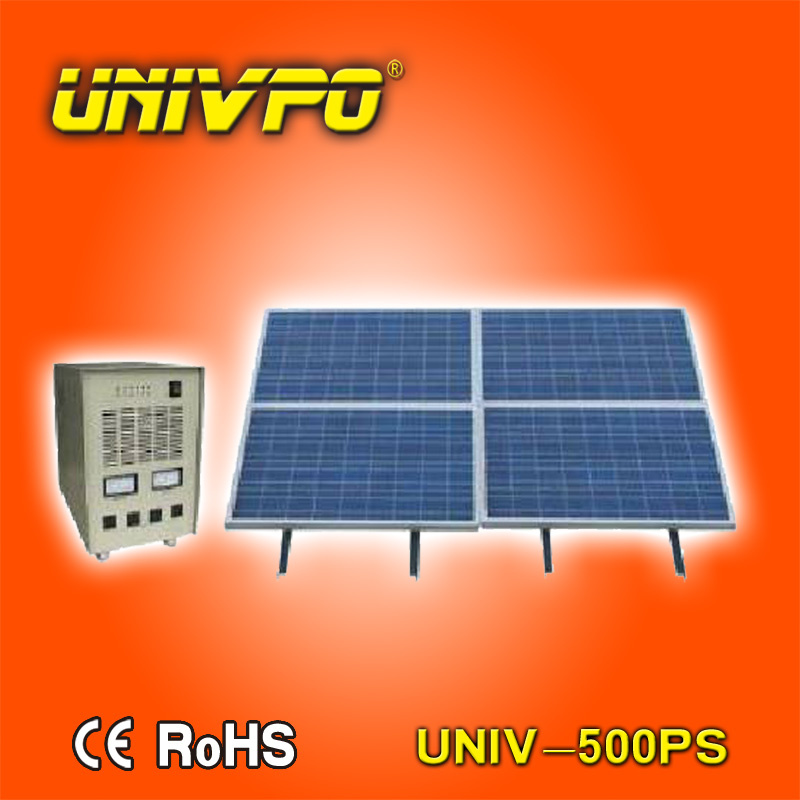

500W Solar Power Kits (UNIV-500PS)
Output voltage: 100 to 120/220 to 240V AC or 12V DC
Wide working temperature: 10 to 50° C
Solar PV panels (200W) are used to convert solar energy to electric energy for storage in battery or to make load work
Solar PV panels are core part of solar power system, which also is highest value part of whole system
Maximum power voltage: 17.8V (MPV)
Maximum power current:10.12A (ipv)
Open-circuit voltage: 17.8V (voc)
Short-circuit current: 10.12A (isc)
Solar controller (12V/10A) designed to control battery charging and DC automatic switching
Monitors battery voltage and opens circuit and stopping charging
DC input and output automatic control function
Fully intelligent system
Temperature compensation
Digital LED indicator light
RS232 communication relay, which can realize real-time monitoring or downloading history data
Temperature compensation: -30mv/° C
No load consumption: 6mA maximum
Solar inverter (500W) type of electrical inverter made to change direct current (DC) electricity from photovoltaic array into alternating current (AC) for use
Pure sine wave output
Low noise
Advanced digital technology
Auto-restart capability
Battery low, short-circuit and overload protection
Lead-acid batteries (12V/80ah) to store DC and provide for load
Superior deep cycle design
High power density
Thick plates and high density active material
Long lifespan in deep cycle applications
Nice recovery from deep discharge
Includes: Solar modules, charge controller, batteries and off-grid inverter
Used to convert solar to electric energy for storage in battery or to make load work
Solar PV Panels |
Solar PV panels: Solar PV panels are used to convert solar energy to electric energy for storage in battery or to make load work. They are the core part of solar power system, which also is the highest value part of the whole system. |
Solar Charger Controller |
Solar charger controller: solar controller is designed to control battery charging and DC automatic switching. It monitors the battery voltage and opens the circuit, stopping the charging, etc.
DC input and output automatic control function
Fully Intelligent System
Temperature Compensation
Digital LED Indicator Light
Wide Temperature Working Range of -10C to 50C
|
Solar Inverter
|
Solar inverter: Solar inverter is a type of electrical inverter that is made to change the direct current (DC) electricity from a photovoltaic array into alternating current (AC) for use.
Modified Sine wave output.
Low cost and low noise
Advanced digital technology
Auto-restart capability
Battery low, short circuit and overload protection
12VDC input, 100-120VAC or 220V-240VAC output |
Deep Cycle Battery |
Deep cycle or AGM-Gel Batteries: Deep cycle or AGM-Gel
battery is to store the DC and provide for load.
Superior Deep Cycle Design
High Power Density
Thick Plates and High-density Active Material
Longer Life in Deep Cycle Applications
Excellent Recovery from Deep Discharge |
